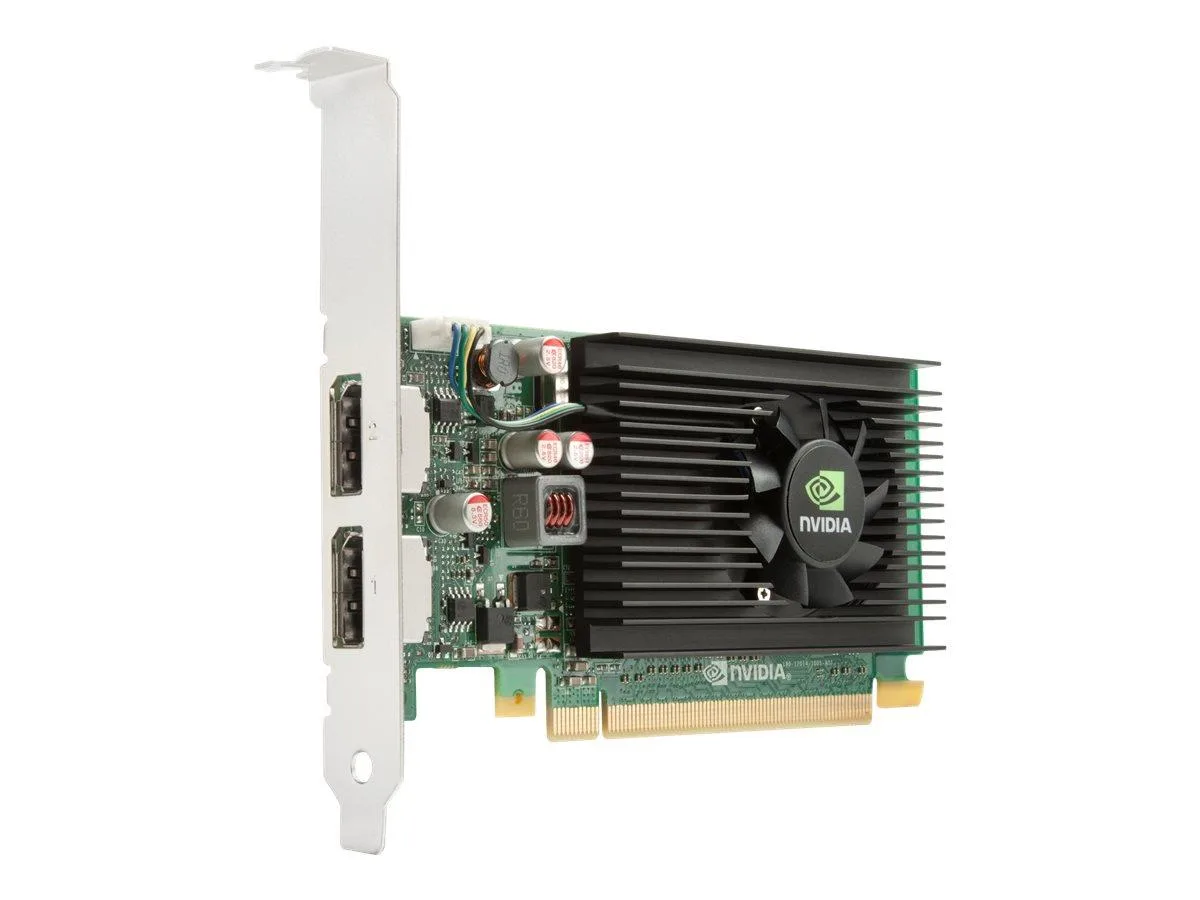

Low-profile workstation graphics card with single fan and two DisplayPort connectors

HP

HP NVS 310 M6V51AT 1GB DDR3 Low Profile workstation graphics card

SKU CH-W79C-60QB6 MPN M6V51AT

Low-profile workstation card with 1GB DDR3 memory, two DisplayPort 1.2 outputs and 19.5 W power draw

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUNVS 310
  • Memory Clock875 MHz
  • Memory Size1GB
  • Memory TypeDDR3
  • Low-profile design fits compact workstations
  • 1GB DDR3 memory drives multi-display productivity
  • PCI Express 2.0 x16 interface delivers 19.5 W power efficiency
  • Dual DisplayPort 1.2 outputs support 2560 x 1600 resolution
  • NVIDIA NVS 310 GPU enables DirectX 11 and OpenGL 4.1 compatibility

Low-profile workstation card for compact PCs

The HP NVS 310 M6V51AT is a single-slot, low-profile graphics card built for small-form-factor workstations. It connects through a PCI Express 2.0 x16 interface and draws 19.5 watts. The board carries 1GB of DDR3 memory clocked at 875 MHz and supports DirectX 11 and OpenGL 4.1 for professional 2D and 3D applications.

Verify slot height and power headroom

Before ordering, confirm that your chassis accepts a low-profile bracket measuring 6.15 inches by 2.72 inches and that a free x16 slot is available. The card occupies one slot width and includes an onboard fan, so ensure airflow is not blocked by adjacent components. A DisplayPort 1.2 cable is required for each of the two video outputs.

Suits multi-monitor office setups.

This card suits users driving two displays at up to 2560 x 1600 resolution for productivity, signage or legacy CAD viewers. It is not for buyers who need hardware-accelerated ray tracing, compute APIs beyond OpenGL 4.1, or frame buffers larger than 1GB. Gamers and content creators requiring higher texture memory or newer shader features should look at something else.

Points forts

  • Low-profile design fits compact workstations
  • 1GB DDR3 memory drives multi-display productivity
  • PCI Express 2.0 x16 interface delivers 19.5 W power efficiency
  • Dual DisplayPort 1.2 outputs support 2560 x 1600 resolution
  • NVIDIA NVS 310 GPU enables DirectX 11 and OpenGL 4.1 compatibility

Caractéristiques

BrandHP
ModelM6V51AT
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUNVS 310
Memory Clock875 MHz
Memory Size1GB
Memory TypeDDR3
DirectXDirectX 11
OpenGLOpenGL 4.1
DisplayPort2 x DisplayPort 1.2
Digital Resolution2560 x 1600
CoolerWith Fan
System RequirementsPower Consumption: 19.5 Watts
FeaturesImprove your graphics experience - Experience PCI Express x 16 graphics technology in a low profile card for your small form factor PC.
The NVIDIA NVS 310 graphics board offers 1GB of ultrafast DDR3 memory and is capable of supporting up to 2 displays.
Reduce the need to share your PC system memory with 1GB of DDR3, dedicated on-board graphics memory. (Graphics cards use part of the total system memory (RAM) for graphics performance. System memory dedicated to graphics performance is not available for other use by other programs.)
Run dual displays with the integrated DisplayPort 1.2
Form FactorLow Profile
Dimensions (L x H)6.15" X 2.72"
Slot WidthSingle slot
Poids d’expédition0.68 kg
Dimensions du colis51 × 51 × 51 mm

Questions sur cet article

Does the HP NVS 310 M6V51AT include a low-profile bracket and are cables supplied?

The card ships with a low-profile bracket installed for small form factor PCs; DisplayPort cables are not included and must be purchased separately.

Should I choose this 1GB DDR3 model or a higher-memory version for dual 2560 x 1600 monitors?

The 1GB DDR3 frame buffer and two DisplayPort 1.2 outputs drive two 2560 x 1600 displays simultaneously, so this version is sufficient for that configuration.

What does the 19.5 watt power draw mean for my existing power supply?

At 19.5 watts the board draws all power from the PCI Express 2.0 x16 slot, so no extra power connector is required and most standard power supplies will support it.
