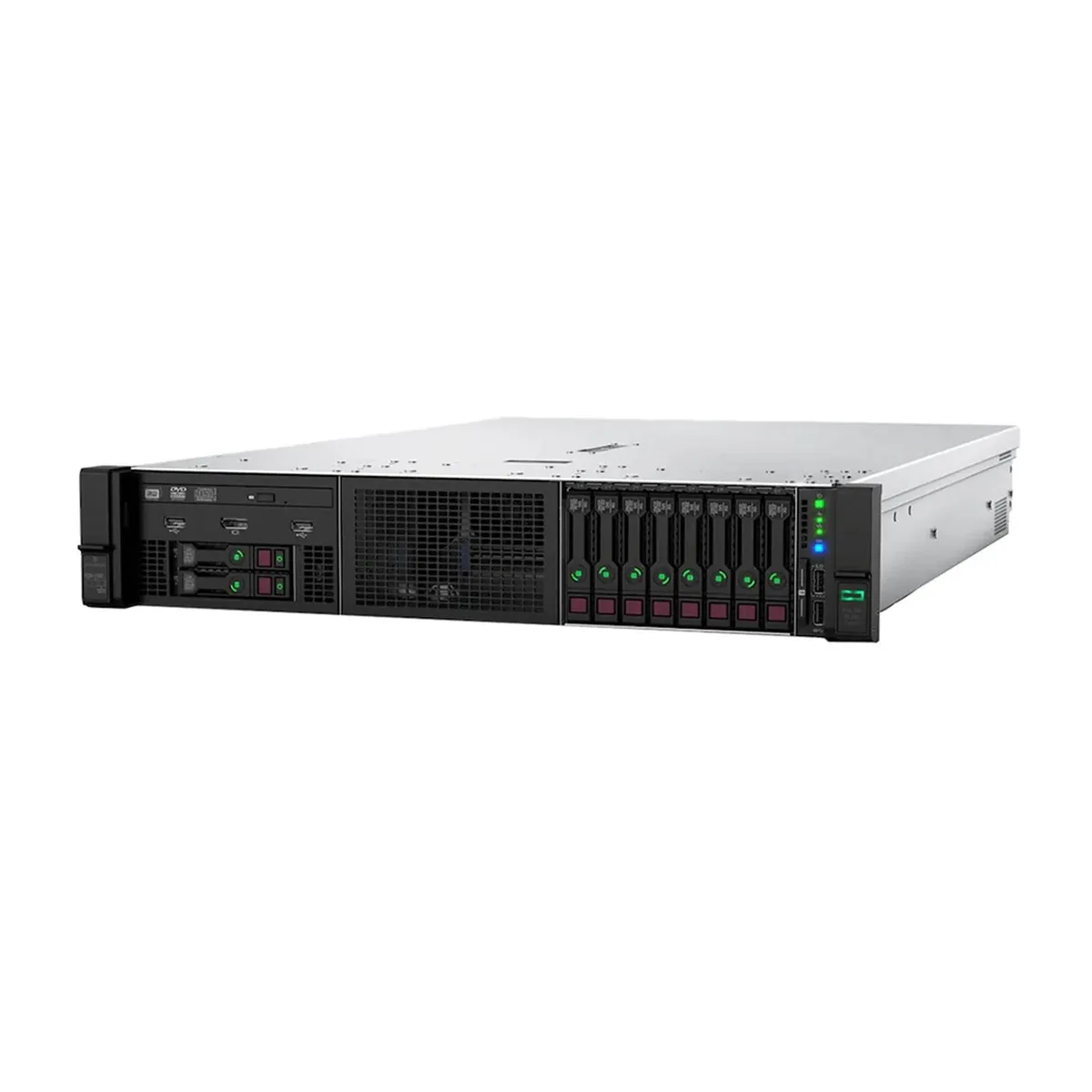

HP ProLiant DL380 Gen10 10 Bay SFF Virtualization Xeon Gold 6136 64GB DDR4 10x 1.2TB SAS 331FLR Quad Port NIC
A 2U rack server with dual 12-core Xeon Gold 6136 CPUs, 64GB DDR4, ten 1.2TB 2.5" SAS drives and a quad-port 331FLR NIC for virtualization and database workloads
- TypeRackmount
- LEDsPower, Ethernet, USB
- CPU TypeGold 6136
- CPU Speed3.00GHz
- Number of CPU Cores12
- # of Processors Installed2
- Dual Xeon Gold 6136 CPUs deliver 24 cores at 3.00GHz for virtualization
- 64GB DDR4 memory supports multiple virtual machines and data-intensive workloads
- Ten 1.2TB SAS drives in 2.5" bays provide fast storage for databases and backups
- 331FLR quad-port NIC enables high-throughput networking for cloud and core IT services
- 2U rack-mount design fits standard data-centre cabinets for scalable deployment
Dual-socket Xeon Gold 6136 virtualization server
This HP ProLiant DL380 Gen10 rackmount system ships with two Intel Xeon Gold 6136 processors running at 3.00GHz, each delivering 12 cores for a total of 24 threads. 64GB of DDR4 memory is installed and the chassis can accept up to 3TB when fully populated. The unit is designed for business workloads such as virtualization, databases, file storage, backups and application hosting in data centres or server rooms.
Ten 2.5-inch SAS drive bays and quad-port NIC
The front panel provides 10 hot-plug SFF bays populated with 1.2TB SAS drives, while the chassis architecture supports up to 24 SFF devices in alternative configurations. A 331FLR quad-port network adapter supplies four Ethernet links for redundancy or segmentation. RAID protection is handled by an HPE Smart Array controller, and the platform also accepts SATA and NVMe media when the appropriate backplane is fitted.
Two-processor limit defines maximum compute
Only two processor sockets exist, so the installed pair of Gold 6136 CPUs already reaches the platform ceiling of 28 cores per socket. Buyers who need more than 24 total cores or higher single-thread frequency must select a different server family. The fixed 10-bay SFF layout also limits internal storage expansion compared with 24-bay variants.
Points forts
- Dual Xeon Gold 6136 CPUs deliver 24 cores at 3.00GHz for virtualization
- 64GB DDR4 memory supports multiple virtual machines and data-intensive workloads
- Ten 1.2TB SAS drives in 2.5" bays provide fast storage for databases and backups
- 331FLR quad-port NIC enables high-throughput networking for cloud and core IT services
- 2U rack-mount design fits standard data-centre cabinets for scalable deployment
Caractéristiques
| Brand | HP |
|---|---|
| Type | Rackmount |
| LEDs | Power, Ethernet, USB |
| CPU Type | Gold 6136 |
| CPU Speed | 3.00GHz |
| Number of CPU Cores | 12 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| GPU Type | Integrated |
| Expansion Bays | 10B - 10x 2.5" |
| Operating System | No |
| Weight | 60 |
Questions sur cet article
Should I pick the 10-bay 2.5-inch model or a larger chassis for my virtualization cluster?
The 10-bay 2.5-inch chassis holds ten 1.2TB SAS drives and fits in 2U; a 24-bay SFF version exists if you need more spindles.
What does the dual Xeon Gold 6136 at 3.00GHz with 12 cores each deliver for VM density?
Twenty-four cores at 3.00GHz with 64GB DDR4 support dense virtualization, databases, and ERP workloads with room to grow to 3TB.
Does the 331FLR quad-port NIC cap my east-west traffic at 1GbE per port?
Yes, the 331FLR provides four 1GbE ports; total throughput is limited to 1GbE per port for virtual-switch and storage traffic.
