HP ProLiant DL380p Gen8 2U Rack Server Xeon E5-2620 2.0GHz 16GB DDR3 670856-S01

HP ProLiant DL380p Gen8 2U Rack Server

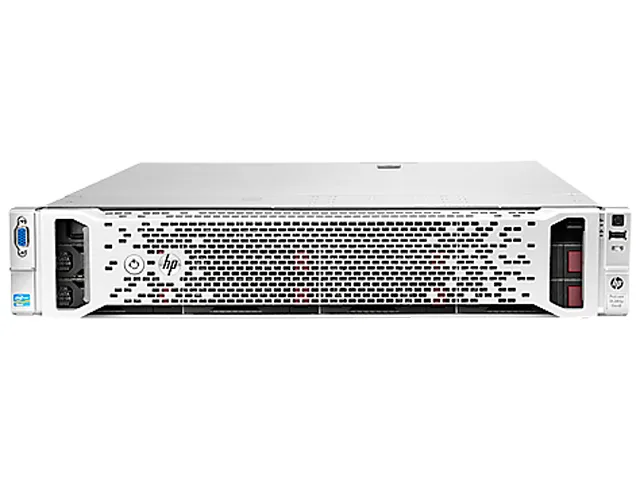

This HP ProLiant DL380p Gen8 is a 2U rack-mount server system built around a single Intel Xeon E5-2620 processor running at 2.0 GHz with six cores and twelve threads. It ships with 16 GB of DDR3 memory installed as two 8 GB modules across 24 DIMM slots supporting advanced ECC and online spare features. The chassis provides eight 2.5-inch hot-swap SAS/SATA drive bays and includes an HP Smart Array P420i controller with 512 MB FBWC supporting RAID 0, 1, 1+0, 5 and 5+0. Dual 460 W hot-plug redundant power supplies are fitted as standard.

Upgrading from single-socket or tower servers

The platform supports a second processor to reach two sockets and twenty-four total cores, making the jump worthwhile when workloads outgrow a single 95 W CPU or when memory needs exceed the initial 16 GB toward the 768 GB maximum. Builders moving from non-hot-swap storage gain eight front-accessible bays with hardware RAID, while the integrated 1 Gb four-port 331FLR adapter replaces basic single-port NICs for segmentation or failover without consuming a PCIe slot.

Build integration: power, expansion and management

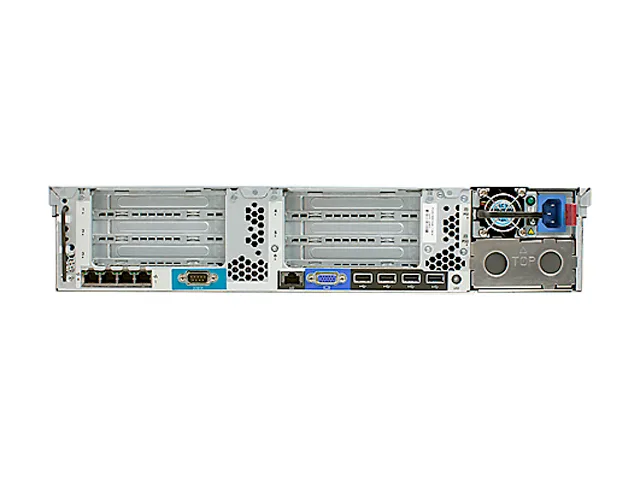

The server requires a rack cabinet with 2U space and AC feeds for the redundant supplies, and it frees up internal cabling by using hot-swap drive carriers and an embedded Smart Array controller. Three PCIe slots are available, with optional risers adding two or three more for specialised adapters such as additional networking or storage controllers. A dedicated iLO port, serial console, dual VGA and six USB 2.0 ports provide local and remote management access without using expansion slots.
