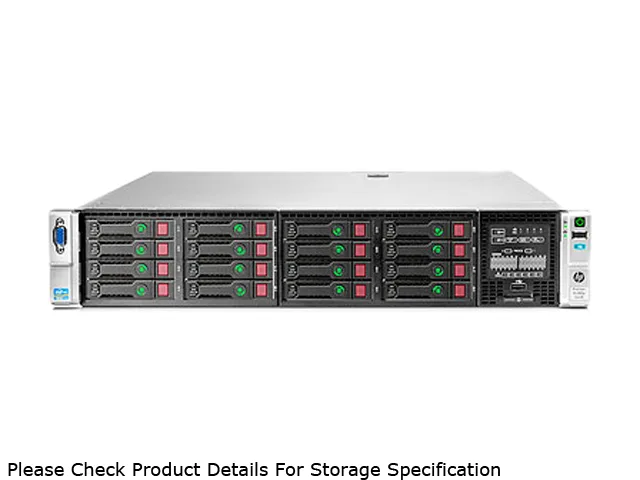

Silver 2U rack server chassis with front drive bays and indicator lights

HP

HP ProLiant DL380p Gen8 Rack Server 2U Xeon E5-2630 2.3GHz 6C/12T 16GB DDR3 642119-001

SKU CH-P4XX-12VCA MPN 642119-001

2U rack server with Xeon E5-2630 2.3GHz 6C/12T, 16GB DDR3, Smart Array P420i and four 1Gb Ethernet ports

  • TypeRack
  • Rack Height2U
  • CPU TypeIntel Xeon E5-2630 2.3GHz 6C/12T
  • CPU Features95W
  • Cache Memory15M
  • MAX Processors2
  • Dual-socket ready with 2 max processors
  • Xeon E5-2630 delivers 6 cores and 12 threads at 2.3GHz
  • 16GB DDR3 installed across 24 DIMM slots
  • Smart Array P420i supports RAID 0/1/5 with 1GB FBWC
  • 460W Platinum Plus supply runs at 94% efficiency

HP ProLiant DL380p Gen8 2U Rack Server

This HP ProLiant DL380p Gen8 is a 2U rack-mountable server system built for data-centre workloads. It ships with one Intel Xeon E5-2630 processor running at 2.3GHz with six cores and twelve threads. The board supports a second processor for dual-socket scaling and includes sixteen gigabytes of DDR3 memory across four 4GB modules.

DDR3 Memory Limits And Expansion

The server uses DDR3 memory only and provides twenty-four DIMM slots with a maximum capacity of 768GB. Advanced ECC and online spare features protect data integrity during operation. Memory speed and rank population rules follow the Xeon E5-2630 specifications, so larger configurations require matching modules in the correct slots.

Storage Controller And Drive Bay Check

The integrated HP Smart Array P420i controller with 1GB flash-backed write cache manages SATA and SAS drives through RAID levels zero, one, one-zero, five and five-zero. No hard drives are installed and the chassis uses hot-swap 2.5-inch bays. Verify that your caddies, backplane cables and drive carriers match the Gen8 2.5-inch form factor before ordering.

Points forts

  • Dual-socket ready with 2 max processors
  • Xeon E5-2630 delivers 6 cores and 12 threads at 2.3GHz
  • 16GB DDR3 installed across 24 DIMM slots
  • Smart Array P420i supports RAID 0/1/5 with 1GB FBWC
  • 460W Platinum Plus supply runs at 94% efficiency

Caractéristiques

BrandHP
SeriesProLiant DL380p Gen8
Model642119-001
TypeRack
Rack Height2U
CPU TypeIntel Xeon E5-2630 2.3GHz 6C/12T
CPU Features95W
Cache Memory15M
MAX Processors2
Installed Memory Size16GB (4 x 4GB)
Memory TypeDDR3
Max Memory Capacity768GB
Memory FeaturesTotal 24 DIMM slots
Advanced ECC
Online Spare
Hard Drive (Installed)No Hard Drive
Storage ControllerHP Smart Array P420i/1GB FBWC
HDD InterfaceSATA/SAS
Raid LevelRAID 0/1/1+0/5/5+0
Media DrivesNone
Ethernet ControllerHP Ethernet 1Gb 4-port 331FLR Adapter
Expansion Slots3 PCIe slots (+3 PCI slots available with upgrade option)
Expansion BaysStandard: 8 SFF SAS/SATA HDD Bays
Power CharacteristicsHP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
FeaturesFans: (4) (N+1 redundancy standard)
Management: iLO Management Engine Standard
Dimensions3.44" x 17.54" x 27.50"
Package ContentsHP 642119-001 Brand New Chassis - Product Warranty: HP 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Poids d’expédition13.61 kg
Dimensions du colis762 × 508 × 254 mm

Questions sur cet article

Which memory configuration suits a start-up versus a heavy virtualisation workload?

The server ships with 16GB across four 4GB DDR3 modules, leaving 20 free DIMM slots to reach the 768GB maximum when demand grows.

How does the Xeon E5-2630 2.3GHz 6C/12T perform in a live 2U rack?

Six cores and twelve threads at 2.3GHz with a 95W TDP and 15MB cache deliver steady multi-thread throughput for typical business applications.

What RAID levels and drive types does the P420i controller support with its 1GB cache?

The Smart Array P420i manages SATA and SAS drives at RAID 0, 1, 1+0, 5 and 5+0, using 1GB flash-backed write cache for data protection.
