HPE

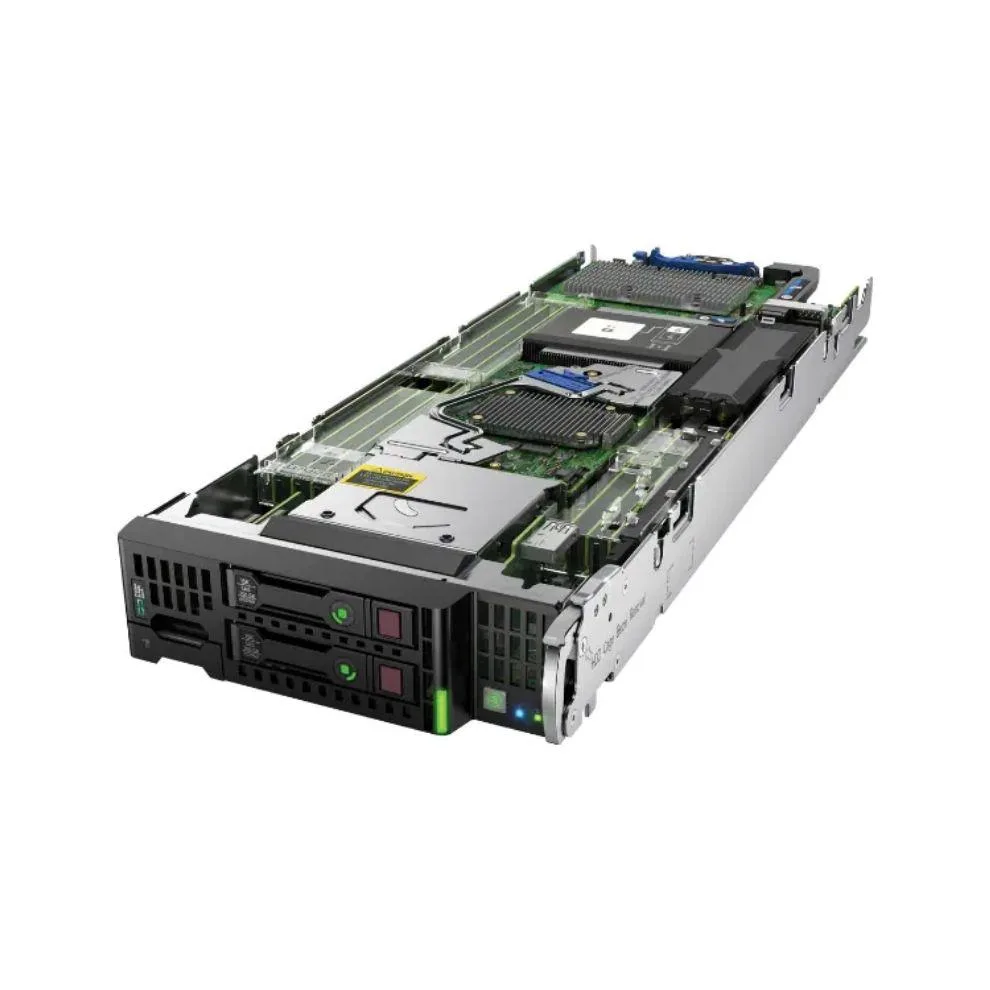

HPE BL460c G9 Blade Server 2x Xeon E5-2683 v4 256GB RAM 2x 300GB SAS HDD
Dual 2.1 GHz 16-core Xeon blade with 256 GB DDR4 and dual 300 GB SAS drives
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.1 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size256GB
- Dual Xeon E5-2683 v4 processors provide 16 cores each at 2.1 GHz for heavy workloads
- 256 GB DDR4 ECC registered memory handles large datasets and virtualisation
- Two 300 GB 10K SAS drives give fast, reliable local storage
- HP P244br controller with 1 GB FBWC protects data during power loss
- Integrated 10 GbE 2-port 562T adapter plus iLO Advanced enables remote management
Dual 16-core Xeon blade for dense compute
The HPE BL460c G9 fits two Xeon E5-2683 v4 processors running at 2.1 GHz, each with 16 cores and 40 MB cache. 256 GB of DDR4 ECC registered memory fills the maximum supported capacity. This configuration targets workloads that need high core counts and large memory footprints inside a standard blade enclosure.
P244br controller with flash-backed cache
The integrated SMART ARRAY P244br provides 1 GB of flash-backed write cache and manages the two installed 300 GB 10K SAS drives. This RAID controller enables hardware RAID levels for redundancy or performance without consuming a mezzanine slot. The 10 Gb dual-port 562T adapter and iLO Advanced remote management are also factory-fitted.
Blade form factor limits expansion
As a half-height blade the server occupies a single enclosure bay and supports only two 2.5-inch drives internally. Additional storage, GPU or specialised networking requires enclosure-level shared infrastructure or external arrays. Buyers who need more local drive bays or add-in cards must choose a rack-mount platform instead.
Points forts
- Dual Xeon E5-2683 v4 processors provide 16 cores each at 2.1 GHz for heavy workloads
- 256 GB DDR4 ECC registered memory handles large datasets and virtualisation
- Two 300 GB 10K SAS drives give fast, reliable local storage
- HP P244br controller with 1 GB FBWC protects data during power loss
- Integrated 10 GbE 2-port 562T adapter plus iLO Advanced enables remote management
Caractéristiques
| Brand | HP |
|---|---|
| Series | Proliant BL |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.1 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 256GB |
| Hard Drive (Installed) | 600,00 |
| Storage Controller | HP P244br Storage Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | Integrated Lights-Out (iLO) Advanced |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions sur cet article
What drive maintenance will the two 300 GB SAS HDDs need later?
The installed 10K SAS drives are mechanical; plan to replace them when SMART alerts appear or after the rated workload hours for the 2.5" form factor.
Which limit appears first when both Xeon E5-2683 v4 CPUs run at 2.1 GHz continuously?
Thermal headroom inside the blade slot typically caps sustained turbo before the 16-core processors hit power limits.
How much power does the fully populated blade draw under all-day load?
With dual 16-core CPUs, 256 GB DDR4, dual 300 GB SAS drives and the 10 Gb 2-port adapter, expect peak draw near the enclosure's 10 Gb blade budget.
