HPE

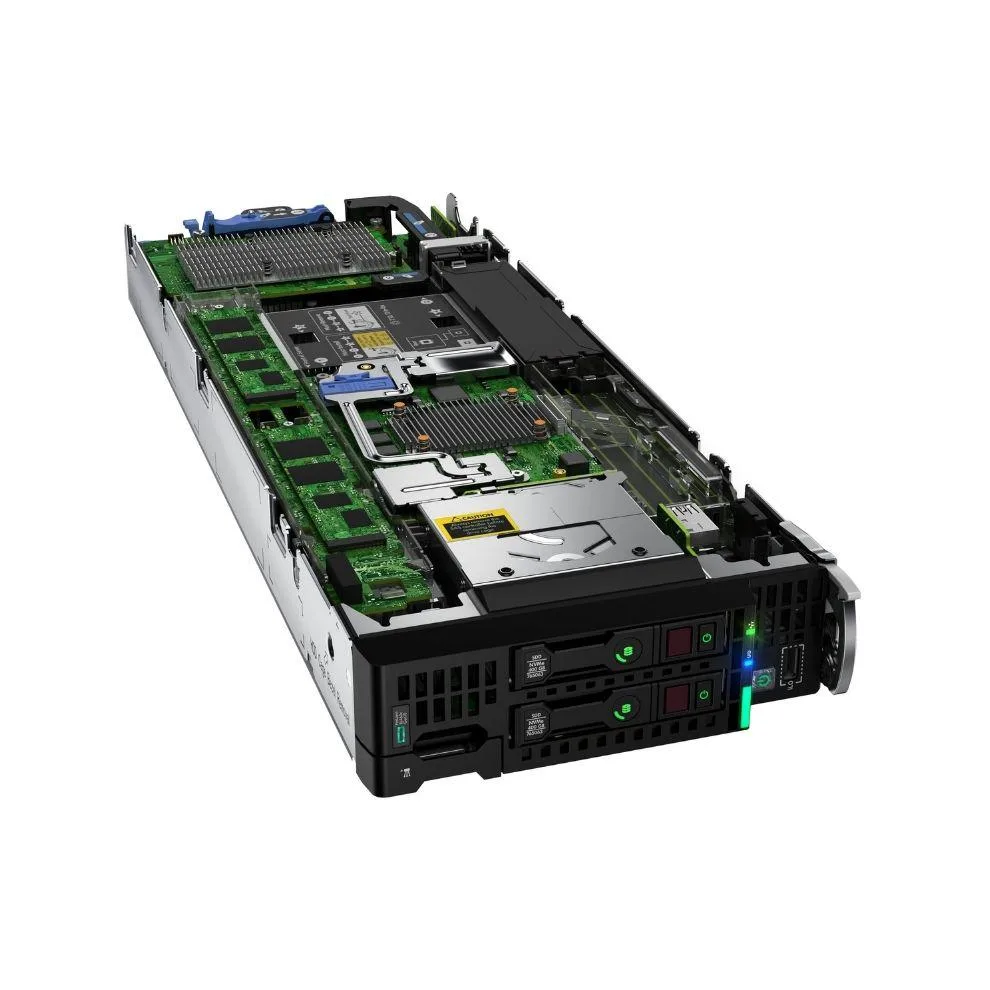

HPE BL460c Gen10 blade server 2x Xeon Platinum 8253 48GB DDR4 2x 4TB SATA
Dual Xeon Platinum 8253 blade server with 48GB DDR4 memory and two 4TB SATA drives
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.2 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size48GB
- Dual Xeon Platinum 8253 CPUs provide 16 cores each at 2.2 GHz
- 48 GB DDR4 ECC registered memory installed with capacity up to 128 GB
- Two 4 TB SATA 2.5" drives on Smart Array P204i-b SR controller
- Integrated Lights-Out Advanced remote management with FlexFabric 20 Gb 2-port adapter
- Compact half-height blade measuring 22 x 22 x 10 in weighing 20 lbs
Blade server for dense compute
The HPE BL460c Gen10 is a half-height blade that fits into a supported enclosure and delivers two Xeon Platinum 8253 processors running at 2.2 GHz with sixteen cores each. It ships with 48 GB of DDR4 ECC registered memory and two 4 TB SATA 2.5-inch drives managed by a Smart Array P204i-b SR controller. This configuration targets virtualisation hosts, database nodes and high-performance workloads that demand maximum core count in a shared chassis.
Verify enclosure and fabric compatibility
Confirm that your HPE c-Class enclosure has available half-height bays and sufficient power and cooling capacity for the dual-processor thermal design. The blade uses a FlexFabric 20 GB 2-port 650FLB adapter, so the interconnect modules must support that fabric speed and port count. Memory can be expanded to 128 GB using DDR4 modules, but the maximum processor count is already reached at two sockets.
Integrated management and storage layout
HPE iLO Advanced provides remote console, power control and firmware updates over a dedicated management network without requiring physical access to the blade. The internal drive cage accepts only two 2.5-inch devices, limiting local storage to the installed SATA drives or a future swap of equal form factor. A rail kit is available separately for rack mounting outside the standard enclosure environment.
Points forts
- Dual Xeon Platinum 8253 CPUs provide 16 cores each at 2.2 GHz
- 48 GB DDR4 ECC registered memory installed with capacity up to 128 GB
- Two 4 TB SATA 2.5" drives on Smart Array P204i-b SR controller
- Integrated Lights-Out Advanced remote management with FlexFabric 20 Gb 2-port adapter
- Compact half-height blade measuring 22 x 22 x 10 in weighing 20 lbs
Caractéristiques
| Brand | HP |
|---|---|
| Series | Proliant BL |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 48GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 128GB |
| Hard Drive (Installed) | 8,00 |
| Storage Controller | HP Smart Array P204i-b SR Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | Integrated Lights-Out (iLO) Advanced |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions sur cet article
Does the blade ship with a rail kit or must I order one separately?
The rail kit is listed as available on request so it is not included by default and must be ordered separately.
Should I choose the 48 GB installed memory or expand toward the 128 GB maximum for virtualization workloads?
The system arrives with 48 GB of DDR4 ECC registered memory installed and supports up to 128 GB total, so add modules if your virtual machines need more capacity.
What usable capacity do the two 4 TB SATA drives provide when configured in RAID 1 with the Smart Array P204i-b SR controller?
In a mirrored RAID 1 array the two 4 TB drives deliver 4 TB of usable space with redundancy for drive failure.
