HPE DL360 Gen10 8SFF 2x Xeon Gold 6226R 16GB DDR4 No Drive Rack Server
1U rack server with two 2.9 GHz Xeon Gold 6226R processors, 16 GB DDR4 memory, Smart Array P408 SAS controller, dual 10 GbE and 1 GbE networking, and eight 2.5-inch drive bays
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.9 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size16GB
- Dual Xeon Gold 6226R processors provide 16 cores each at 2.9 GHz
- 16 GB DDR4 ECC registered memory supports reliable operation
- Smart Array P408 SAS controller manages up to eight 2.5-inch drive bays
- Integrated Intel I350 and X540 network ports deliver 10 GbE and 1 GbE connectivity
- HPE iLO Advanced remote management enables out-of-band server control
Dual-socket Xeon 6226R server

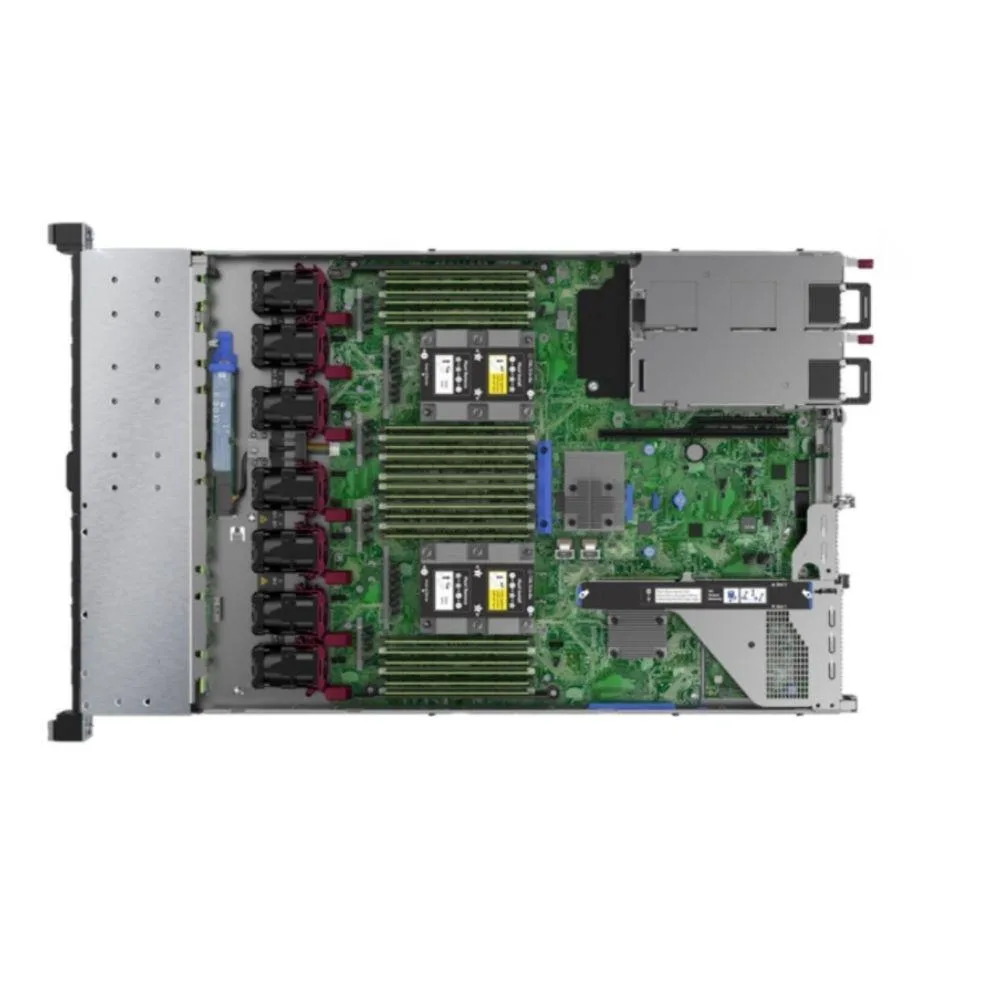

The HPE ProLiant DL360 Gen10 is a 1U rackmount server populated with two Intel Xeon Gold 6226R processors running at 2.9 GHz. Sixteen gigabytes of DDR4 ECC registered memory are installed, and the chassis provides eight 2.5-inch drive bays. It is aimed at IT teams deploying virtualisation hosts, database nodes or high-density compute clusters.
Sustained multi-thread throughput
Each Gold 6226R delivers sixteen cores with a 22 MB cache, giving thirty-two threads across the pair for continuous parallel workloads. The Smart Array P408 SAS controller manages SATA drives with hardware RAID offload, keeping storage latency predictable during extended backup or analytics jobs. Dual 500 W Flex Slot power supplies share the load, reducing thermal stress on any single unit during long runs.
Storage and expansion ceiling
The eight-bay 2.5-inch backplane caps internal raw capacity at the number of bays multiplied by the largest supported drive. PCIe slots are limited to the low-profile, half-length form factor imposed by the 1U height, so full-height accelerators or additional multi-port NICs cannot be fitted. Network I/O is provided by an Intel I350/X540 card delivering two 10 GbE and two 1 GbE ports.
Points forts
- Dual Xeon Gold 6226R processors provide 16 cores each at 2.9 GHz
- 16 GB DDR4 ECC registered memory supports reliable operation
- Smart Array P408 SAS controller manages up to eight 2.5-inch drive bays
- Integrated Intel I350 and X540 network ports deliver 10 GbE and 1 GbE connectivity
- HPE iLO Advanced remote management enables out-of-band server control
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.9 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 16GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 1.920,00 |
| Storage Controller | HPE Smart Array P408 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How much power do the two 500W supplies draw when the server runs 24/7?
Each supply is rated at 500W; actual draw depends on workload but the redundant pair shares the load so neither runs at full capacity continuously.
Which drives and caddies do I need to populate the eight 2.5-inch bays?
The Smart Array P408 controller accepts SAS or SATA 2.5-inch drives; you must supply the drives and matching HPE drive caddies as none are included.
Will my existing DDR4 ECC RDIMMs work alongside the installed 16GB?
Yes, the system uses DDR4 ECC registered memory up to 3TB total; add modules in matched pairs per processor for best performance.
