HPE

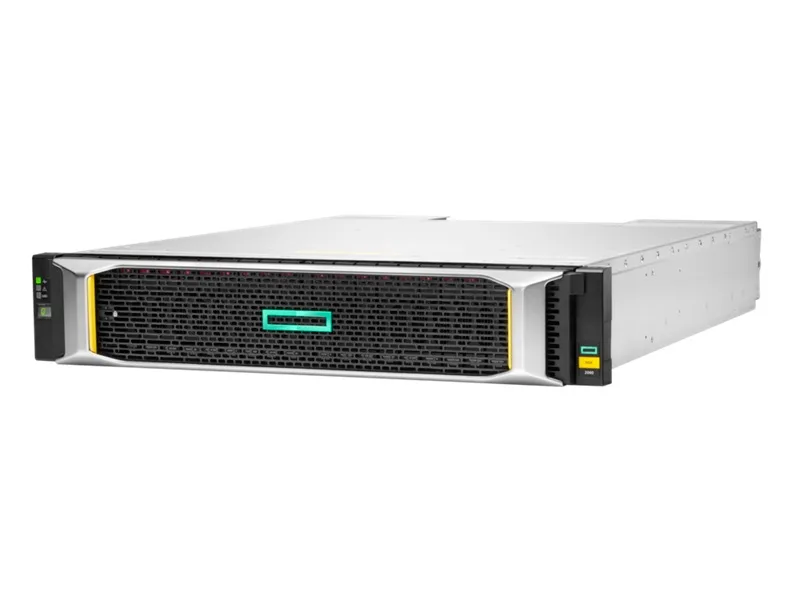

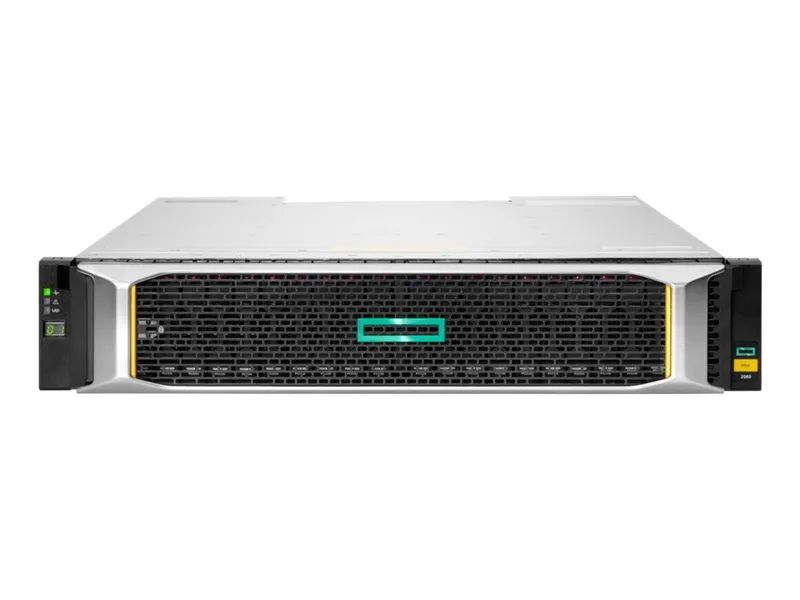

HPE MSA 2062 Rack Storage Array P84170-B25 28.8TB 12 x 2.4TB 2 x 1.92TB SAS SSD 2U
A 2U rack array holds 28.8 TB on twelve 2.4 TB drives plus two 1.92 TB SAS SSDs with dual 16 Gb Fibre Channel controllers
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height2U
- Hard Drive (Installed)28.8TB (12 x 2.4TB)
- Storage Controller2 x 16 Gb Fibre Channel 4-port Controllers
- SSD (Installed)2 x 1.92TB SAS SSD
- 8TB total capacity with 12 x 2.4TB drives and 2 x 1.92TB SAS SSDs installed
- Dual 16 Gb Fibre Channel 4-port controllers deliver high-throughput connectivity
- 2U rack form factor fits dense data-centre deployments
- Expandable to 24 SFF drives per base array for future growth
- Maximum raw capacity scales to 1.77 PB all-SFF or 2.7 PB mixed configurations
HPE MSA 2062 Rack Storage Array
The HPE MSA 2062 is a 2U rack storage array designed for general-purpose server workloads. It ships with twelve 2.4TB hard drives and two 1.92TB SAS SSDs installed. The system provides 28.8TB of raw capacity out of the box.
Dual 16 Gb Fibre Channel Controllers
Dual 16 Gb Fibre Channel 4-port controllers and a 4-pack of short-wave SFP+ transceivers are included. This connectivity enables direct host attachment or switch-based SAN integration. The hardware supports block-level access for applications requiring consistent throughput.
Capacity Headroom and Expansion Limits
The base array holds up to 24 SFF drives, allowing growth beyond the factory 28.8TB. Maximum raw capacity reaches 1.77 PB with all SFF drives or 2.7 PB when mixing SFF and LFF enclosures. Workloads exceeding these limits will require additional arrays.
Points forts
- 8TB total capacity with 12 x 2.4TB drives and 2 x 1.92TB SAS SSDs installed
- Dual 16 Gb Fibre Channel 4-port controllers deliver high-throughput connectivity
- 2U rack form factor fits dense data-centre deployments
- Expandable to 24 SFF drives per base array for future growth
- Maximum raw capacity scales to 1.77 PB all-SFF or 2.7 PB mixed configurations
Caractéristiques
| Brand | HPE |
|---|---|
| Series | MSA 2062 |
| Model | P84170-B25 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 2U |
| Hard Drive (Installed) | 28.8TB (12 x 2.4TB) |
| Storage Controller | 2 x 16 Gb Fibre Channel 4-port Controllers |
| SSD (Installed) | 2 x 1.92TB SAS SSD |
| Max HDD Capacity | Maximum array raw capacity of 1.77 PB (all SFF) and 2.7 PB (SFF & LFF) |
| Ethernet Controller | HPE MSA 16 Gb Short Wave Fibre Channel SFP+ 4-pack Transceivers |
| Expansion Bays | Up to 24 SFF HDD and/or SSD per base array |
| Poids d’expédition | 0.91 kg |
| Dimensions du colis | 203 × 152 × 25 mm |
Questions sur cet article
When will the 12 x 2.4TB SAS drives or the 2 x 1.92TB SAS SSDs need replacement?
The 12 x 2.4TB SAS drives and 2 x 1.92TB SAS SSDs are mechanical and solid-state components that will require replacement after their rated endurance or if a SMART error is reported by the MSA 2062 controller.
Which limit appears first when the array runs at full 16 Gb Fibre Channel throughput all day?
The 16 Gb Fibre Channel 4-port controllers set the sustained bandwidth ceiling; the 24 SFF expansion bays and installed 28.8TB capacity will not saturate before the controller links do.
How much heat and power does the 2U chassis draw with all 12 HDDs and 2 SSDs spinning continuously?
The 2U rack enclosure houses 12 x 2.4TB SAS HDDs and 2 x 1.92TB SAS SSDs plus dual 16 Gb Fibre Channel controllers; power draw and thermal output scale with that full complement.
