Silver 2U rack enclosure with twelve drive carriers visible at the front

HPE

HPE MSA 2070 2U SFF 12x3.84TB SAS SSD 2x16Gb FC P76570-B25

SKU CH-RASK-Z89H3 MPN P76570-B25

2U SFF storage array with twelve 3.84 TB SAS SSDs, dual 16 Gb Fibre Channel controllers and 46.08 TB usable capacity

  • WorkloadStorage Server
  • TypeSmall Form Factor
  • Rack Height2U
  • Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
  • SSD (Installed)12 x 3.84TB SAS SSD
  • Max HDD CapacityUp to 2.73 PB with maximum capacity expansion

SSD (Installed) 12 x 3.84TB SAS SSD

Option 4 x 16 Gb Fibre Channel SFP+ transceivers

  • 12 x 3.84 TB SAS SSDs provide 46.08 TB of fast flash capacity
  • Dual 16 Gb Fibre Channel 4-port controllers deliver high-throughput host connectivity
  • 2U SFF chassis supports 24 drives with room for 12 more SFF devices
  • Expansion enclosures scale raw capacity up to 2.73 PB for growing workloads
  • Two 580 W redundant power supplies keep the array running during a supply failure

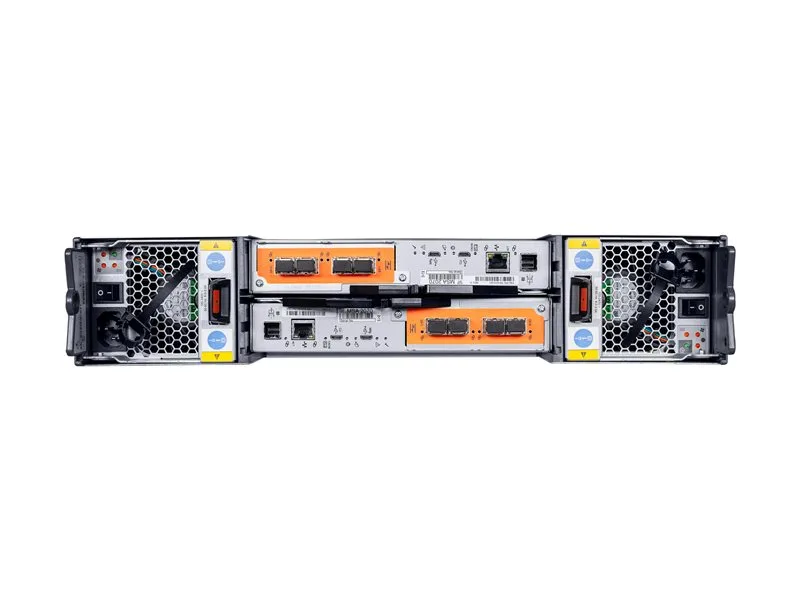

HPE MSA 2070 2U SFF storage array

The HPE MSA 2070 is a 2U small form factor SAN storage system designed for shared storage workloads. It ships with twelve 3.84 TB SAS SSDs providing 46.08 TB of raw capacity. Dual 16 Gb Fibre Channel 4-port controllers deliver host connectivity. The platform supports Windows Server, VMware vSphere, Red Hat Linux and SUSE SLES.

Verify Fibre Channel host ports and rack space

Confirm that your servers have available 16 Gb or 32 Gb Fibre Channel host bus adapters and matching cabling. Ensure the rack can accommodate a 2U enclosure with two redundant 580 W power supplies and suitable cooling. Check that the operating environment matches the certified OS list before deployment.

Expands with SFF or LFF drive enclosures

The base array accepts up to twelve additional SFF drives internally. External expansion supports 2U 24-drive SFF enclosures or 2U 12-drive LFF enclosures, with up to nine enclosures daisy-chained for a maximum raw capacity of 2.73 PB. Four 16 Gb Fibre Channel SFP+ transceivers are included for immediate controller uplinks.

Points forts

  • 12 x 3.84 TB SAS SSDs provide 46.08 TB of fast flash capacity
  • Dual 16 Gb Fibre Channel 4-port controllers deliver high-throughput host connectivity
  • 2U SFF chassis supports 24 drives with room for 12 more SFF devices
  • Expansion enclosures scale raw capacity up to 2.73 PB for growing workloads
  • Two 580 W redundant power supplies keep the array running during a supply failure

Caractéristiques

BrandHPE
SeriesMSA 2070 Gen7
ModelP76570-B25
WorkloadStorage Server
TypeSmall Form Factor
Rack Height2U
Storage Controller2 x 16 Gb Fibre Channel 4-port Controller
SSD (Installed)12 x 3.84TB SAS SSD
Max HDD CapacityUp to 2.73 PB with maximum capacity expansion
Expansion Bays2U 24-drive SFF drive enclosure and/or 2U 12-drive LFF drive enclosure (add up to 9)
Compatible/Certified OSWindows Server
VMware vSphere
Red Hat Linux
SUSE SLES
Power CharacteristicsTwo 580W redundant power supplies
Package ContentsHPE MSA 16Gb Short Wave Fibre Channel SFP+ 4-pack Transceiver
Poids d’expédition13.61 kg
Dimensions du colis762 × 635 × 254 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the box include and what must be purchased separately?

The box includes the 2U SFF array, twelve 3.84 TB SAS SSDs, two 16 Gb Fibre Channel 4-port controllers, two 580 W redundant power supplies and a 4-pack of 16 Gb short-wave SFP+ transceivers. Additional drives and expansion enclosures are sold separately.

Which capacity or version should I choose for this array?

This SKU is a single configuration: twelve 3.84 TB SSDs providing 46.08 TB installed capacity with 16 Gb Fibre Channel connectivity. Other capacities or host interfaces are different part numbers.

What does the 46.08 TB installed capacity mean once the array is in a rack?

It is the raw capacity of the twelve 3.84 TB SAS SSDs already installed. Usable capacity will be lower after RAID overhead and any spare allocation, and the array can scale to 2.73 PB with extra enclosures.
