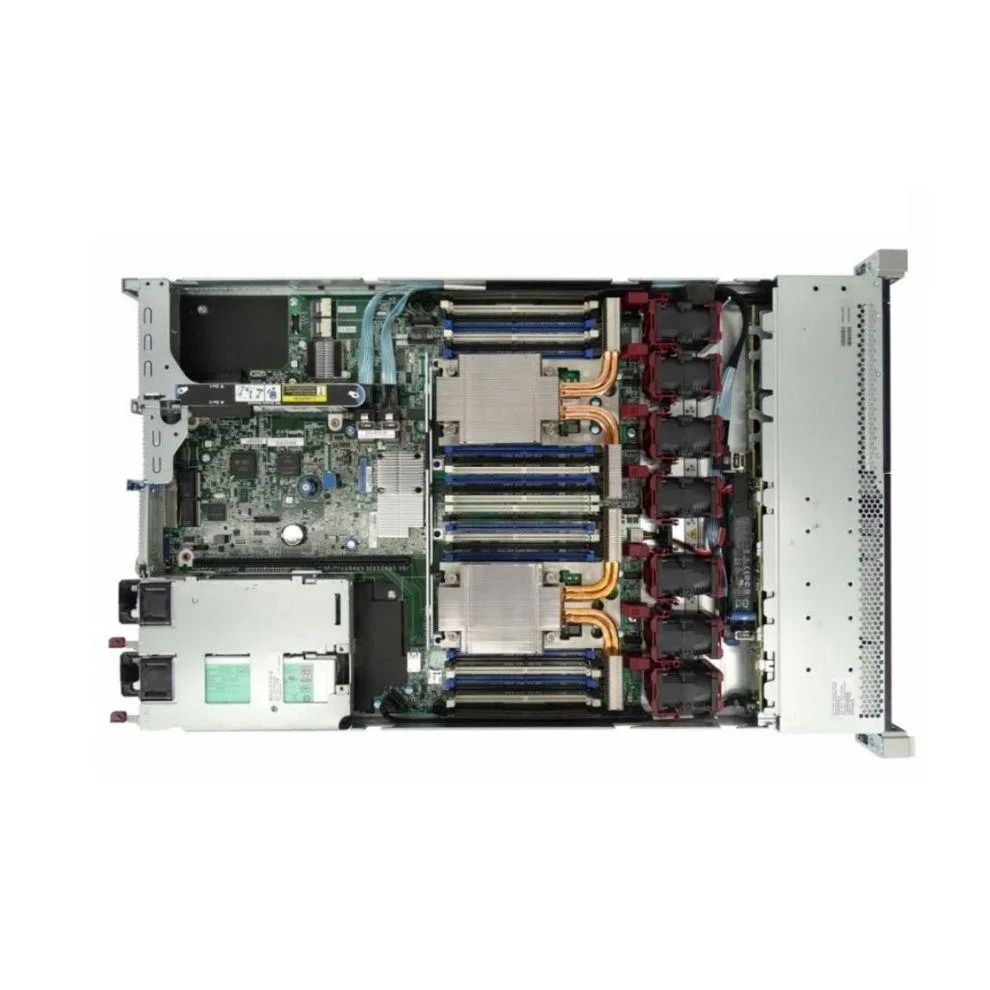

HPE ProLiant DL360 Gen9 4LFF 1x Xeon E5-2683 v4 384GB DDR4
A 4-bay 3.5-inch rack server with one 16-core Xeon at 2.1 GHz and 384 GB DDR4 ECC memory, ready for custom storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.1GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size384GB
- 16-core Xeon at 2.1 GHz drives heavy compute
- 384 GB DDR4 ECC memory handles large datasets
- Four 3.5-inch drive bays ready for SAS or SATA storage
- HPE Smart Array P440 controller provides hardware RAID
- Dual 10 GbE plus dual 1 GbE ports for high-speed networking
Ready-to-rack server for compute-heavy workloads
This 1U rack-mount system ships with a single Intel Xeon E5-2683 v4 processor running at 2.1GHz and sixteen cores. The chassis holds four 3.5-inch drive bays and includes 384GB of DDR4 ECC registered memory across the available slots. It targets buyers who need dense processing power in a standard rack footprint.
Maximum memory ceiling of 768GB
The board supports up to 768GB total capacity, so the installed 384GB leaves headroom for future expansion. The storage controller is an HPE Smart Array P440 SAS controller that manages SATA drives; no drives are installed in the four bays. Buyers who want more storage than four bays provide should look at larger chassis options.
Slide-in rails and tool-less access
A rail kit is available on request and the top cover removes without tools for quick DIMM or drive changes. The dual 500W flex-slot power supplies are hot-plug, so a failed unit can be swapped without downtime. Remote management uses HPE iLO Advanced for out-of-band control. Installers who skip the firmware update step before adding hardware often hit compatibility errors.
Points forts
- 16-core Xeon at 2.1 GHz drives heavy compute
- 384 GB DDR4 ECC memory handles large datasets
- Four 3.5-inch drive bays ready for SAS or SATA storage
- HPE Smart Array P440 controller provides hardware RAID
- Dual 10 GbE plus dual 1 GbE ports for high-speed networking
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.1GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 768GB |
| Hard Drive (Installed) | 4,00 |
| Storage Controller | HPE Smart Array P440 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How does the 384 GB of DDR4 perform when the server is running a full workload?
With 384 GB of DDR4 ECC registered memory installed, the system can hold large datasets in RAM and run many virtual machines simultaneously, and it can be expanded up to 768 GB if needed.
What does the P440 SAS controller mean for the four 3.5-inch drive bays?
The HPE Smart Array P440 PCIe SAS controller manages the four 3.5-inch SATA bays and provides hardware RAID for the drives you install.
Will the 36 x 24 x 10 inch chassis fit in my standard rack?
The chassis is designed for rack mounting and a rail kit is available on request for installation.
