HPE ProLiant DL380 G10 2U rack server P06422-B21 Xeon 5118 12-core 64GB DDR4 2x800W
2U rack server with 12-core Xeon 5118 processor, 64GB DDR4 memory and dual 800W power supplies
- TypeRack
- Rack Height2U
- CPU TypeIntel Xeon Scalable
- CPU Speed5118 (2.30 GHz)
- Number of CPU Cores12-Core Processor
- # of Processors Installed1
- 12-core Xeon 5118 at 2.30 GHz drives demanding workloads
- 64GB DDR4 memory at 2400 MT/s supports heavy virtualization
- P408i-a controller with 2GB cache and Smart Storage Battery protects data
- Four-port 1Gb 331i Ethernet adapter handles network traffic
- Dual 800W power supplies deliver redundant power

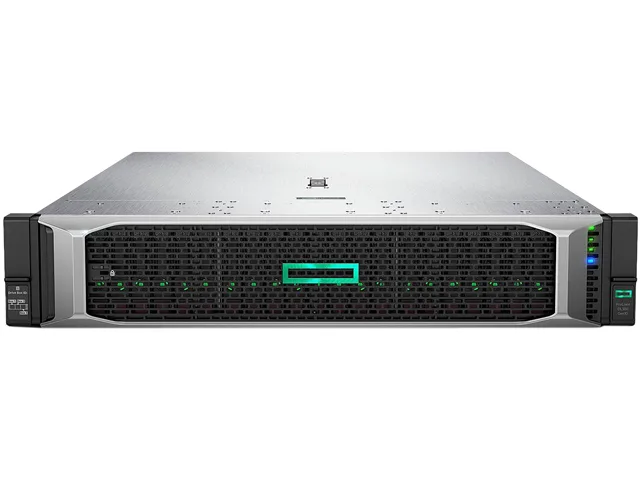

HPE ProLiant DL380 G10 2U rack server
This 2U rack server ships with a single Intel Xeon Scalable 5118 processor running at 2.30 GHz across 12 cores. It includes 64 GB of DDR4 memory that operates at 2400 MT/s due to the processor limitation. The system is designed for workloads requiring moderate compute density in a standard rack footprint.
Build quality and daily connectivity
Dual 800 W power supplies provide redundancy for continuous operation. Network access comes from an HPE 1Gb Ethernet 4-Port 331i Adapter. Storage is managed by a P408i-a controller with 2 GB cache and a Smart Storage Battery. Three PCIe slots, two x16 and one x8, allow expansion cards to be added without proprietary risers.
Practical limits of the platform
Memory speed is capped at 2400 MT/s by the installed processor, so faster DDR4 modules will not run at their rated frequency. Only one processor socket is populated, leaving the second socket available but requiring a matching Xeon Scalable CPU for an upgrade. The four 1 Gb Ethernet ports limit aggregate throughput to 4 Gb/s without additional NICs.
Points forts
- 12-core Xeon 5118 at 2.30 GHz drives demanding workloads
- 64GB DDR4 memory at 2400 MT/s supports heavy virtualization
- P408i-a controller with 2GB cache and Smart Storage Battery protects data
- Four-port 1Gb 331i Ethernet adapter handles network traffic
- Dual 800W power supplies deliver redundant power
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant DL380 G10 |
| Model | P06422-B21 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel Xeon Scalable |
| CPU Speed | 5118 (2.30 GHz) |
| Number of CPU Cores | 12-Core Processor |
| # of Processors Installed | 1 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 |
| Memory Features | NOTE: Runs at 2400 MT/s due to processor limitation. |
| Storage Controller | P408i-a/2GB with Smart Storage Battery |
| Ethernet Controller | HPE 1Gb Ethernet 4-Port 331i Adapter |
| Expansion Slots | 3 x PCIe: 2 x16, 1 x8 |
| Power Characteristics | 2 x 800W |
| Dimensions | 3.44" x 17.54" x 28.75" |
| Weight | 32.60 lbs. |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 1016 × 762 × 127 mm |
Questions sur cet article
Does the Xeon 5118 limit the DDR4 memory speed to 2400 MT/s?
Yes, the installed 64GB DDR4 runs at 2400 MT/s because the 12-core 5118 processor caps the memory bus at that rate.
What rack space and clearance does the 2U chassis need?
The server is 3.44 inches high, 17.54 inches wide and 28.75 inches deep, weighing 32.60 lbs, so it fits a standard 2U rack bay with enough depth for cable routing.
How do I add the P408i-a controller and Smart Storage Battery, and what step is often missed?
The controller and battery ship installed; if you replace or add the battery, seat it firmly in the dedicated holder and connect the cable before closing the chassis, otherwise the write cache will not enable.
