HPE ProLiant DL380 Gen10 2x Xeon Gold 6226 384GB RAM No Drive rack server
Dual Xeon Gold 6226 2.7GHz 12-core server with 384GB DDR4 ECC, P408 SAS controller and dual 10GbE/1GbE networking in a 2.5" 8-bay chassis
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.7GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size384GB
- Dual Xeon Gold 6226 CPUs deliver 24 cores at 2.7GHz for heavy workloads
- 384GB DDR4 ECC memory supports large datasets and virtualization
- HPE Smart Array P408 SAS controller enables flexible RAID storage
- iLO Advanced remote management provides secure out-of-band server control
- 5-inch drive bays allow custom SATA storage configuration

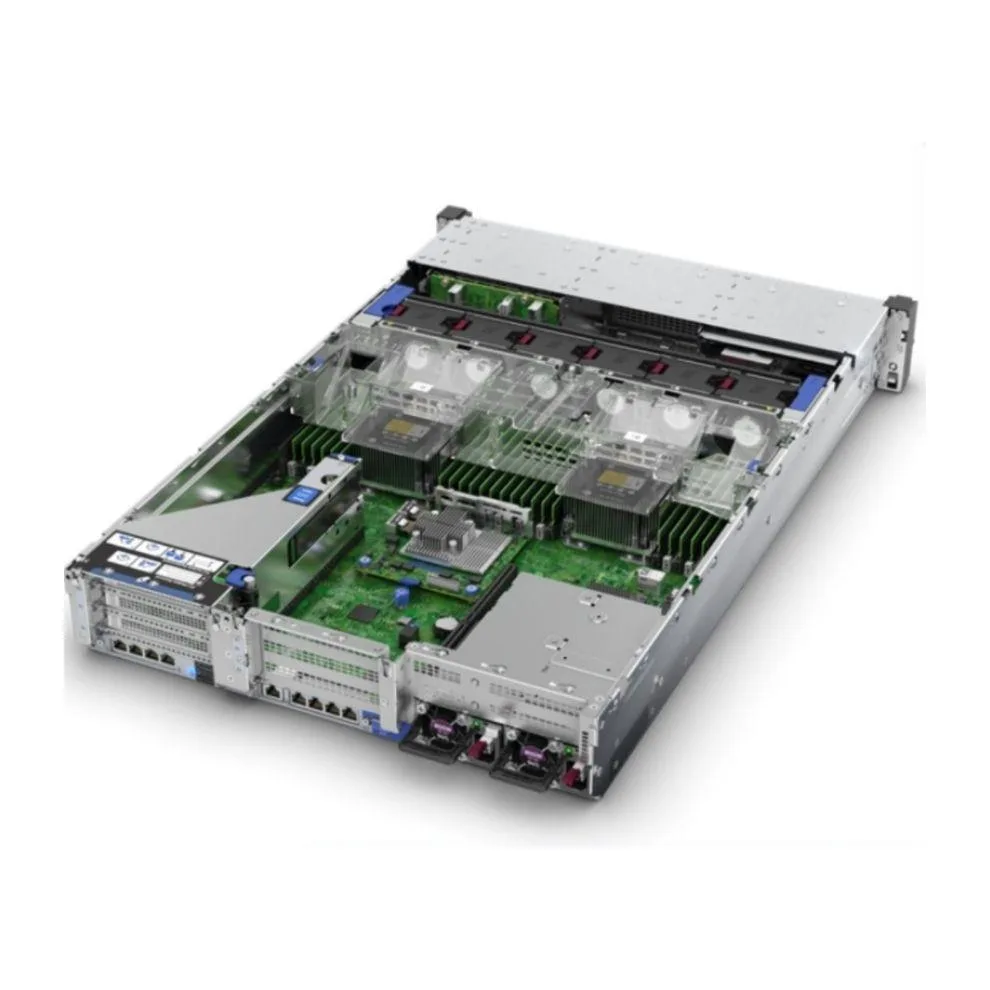

HPE ProLiant DL380 Gen10 dual-socket server
The HPE ProLiant DL380 Gen10 is a 2U rack server built for virtualisation hosts, database clusters and compute-intensive workloads. Two Intel Xeon Gold 6226 processors provide 24 cores running at 2.7 GHz with 19.25 MB cache each. The system ships with 384 GB of DDR4 ECC registered memory and an HPE Smart Array P408 SAS controller.
2.5-inch bay limit and SAS/SATA interface
The chassis supports up to eight 2.5-inch drive bays connected through the P408 controller using SAS or SATA signalling. No drives are installed, so capacity and redundancy must be planned before deployment. Network connectivity includes two 10 GbE and two 1 GbE ports from the installed Intel I350/X540 adapter.
Tool-less rails and firmware readiness
Tool-less rail kits are available on request and simplify rack mounting in standard 19-inch cabinets. Each unit arrives with BIOS and firmware updated to the latest stable version and has passed full diagnostics and burn-in testing. Dual 500 W Flex Slot power supplies provide redundancy; remote management is handled through HPE iLO Advanced.
Points forts
- Dual Xeon Gold 6226 CPUs deliver 24 cores at 2.7GHz for heavy workloads
- 384GB DDR4 ECC memory supports large datasets and virtualization
- HPE Smart Array P408 SAS controller enables flexible RAID storage
- iLO Advanced remote management provides secure out-of-band server control
- 5-inch drive bays allow custom SATA storage configuration
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.7GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 3,84 |
| Storage Controller | HPE Smart Array P408 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
Should I choose the 2.5-inch 8-bay chassis or a different drive-bay layout?
This configuration uses the 8-bay 2.5-inch chassis that supports up to eight SATA or SAS drives, and the installed Smart Array P408 controller manages them.
What does the 384GB DDR4 ECC registered memory mean for real workloads?
The 384GB of DDR4 ECC registered RAM provides error-corrected capacity for large virtualisation hosts or in-memory databases, with room to expand to the platform maximum of 3TB.
How does the P408 SAS controller limit drive performance?
The Smart Array P408 is a 12Gb/s SAS RAID controller, so each attached SATA or SAS drive is capped at that controller link speed rather than the drive's native interface maximum.
