HPE ProLiant DL380 Gen10 8LFF rack server 1x Xeon Silver 4210 2.2GHz 256GB DDR4 no drives
Rack server with 256GB DDR4 memory, one Xeon Silver 4210 2.2GHz processor, Smart Array P408 controller and eight 3.5-inch bays
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size256GB
- 10-core Xeon Silver 4210 at 2.2GHz for compute density
- 256GB DDR4 ECC registered memory for large datasets
- Smart Array P408 SAS controller for RAID flexibility
- Eight 3.5-inch drive bays ready for SATA storage
- HPE iLO Advanced remote management for lights-out control
8LFF chassis for 3.5-inch drives

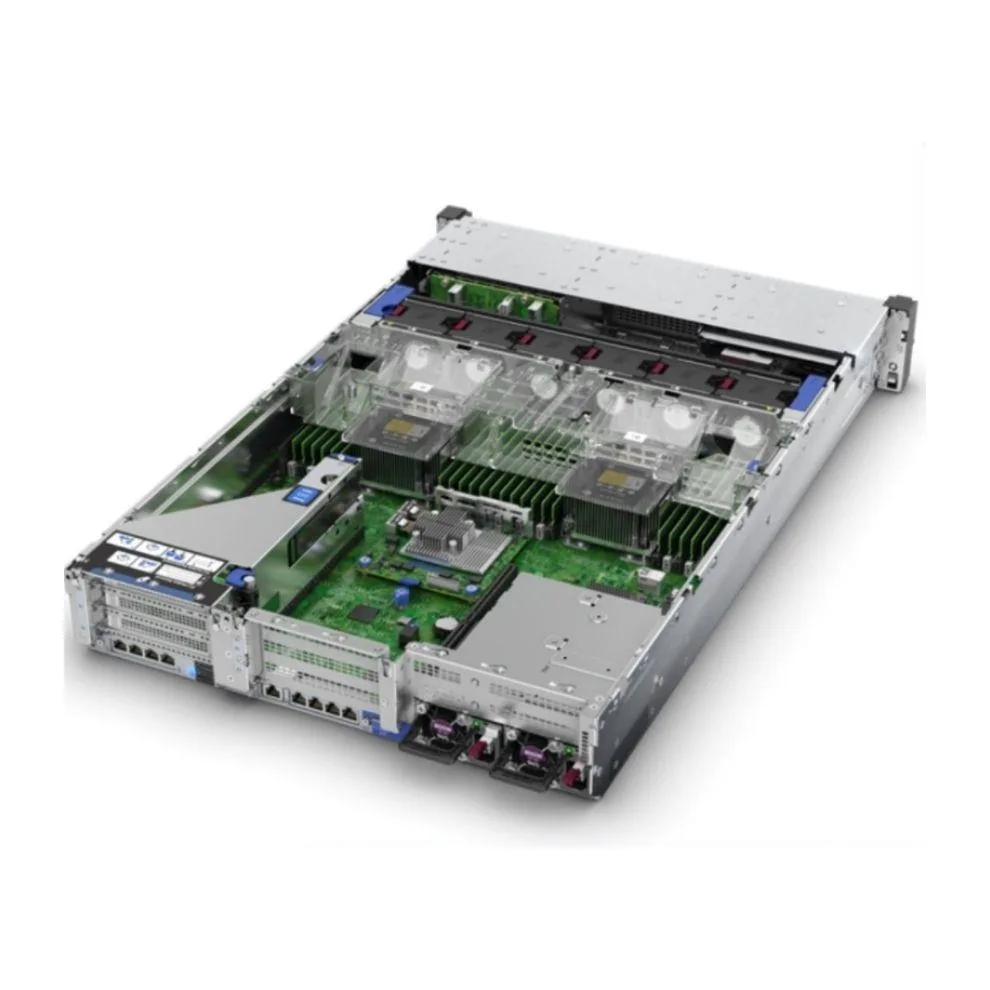

The HPE ProLiant DL380 Gen10 is a 2U rack server with an 8LFF chassis that accepts up to eight 3.5-inch SATA drives. It ships with one Xeon Silver 4210 processor running at 2.2 GHz with 10 cores and 13.75 MB cache, plus 256 GB of DDR4 ECC registered memory. A Smart Array P408 SAS controller and dual 500 W Flex Slot power supplies are installed. Integrated graphics and HPE iLO Advanced remote management come standard.
Upgrade from smaller LFF or SFF configs
This configuration replaces servers limited to fewer drive bays or smaller form-factor chassis when capacity density matters. The jump is worth it when workloads need room for up to eight 3.5-inch drives and a second processor socket for future expansion. The installed 256 GB DDR4 and 10 GbE networking also lift memory and throughput ceilings above entry-level single-socket builds.
Verify rack depth and drive carrier supply
Confirm the 36-inch depth fits your rack enclosure and that airflow clearance meets the chassis design. No drives or drive carriers are included, so source compatible 3.5-inch SATA drives and carriers before deployment. Ensure the operating environment supports the installed dual 500 W power supplies and that iLO licensing aligns with your management requirements.
Points forts
- 10-core Xeon Silver 4210 at 2.2GHz for compute density
- 256GB DDR4 ECC registered memory for large datasets
- Smart Array P408 SAS controller for RAID flexibility
- Eight 3.5-inch drive bays ready for SATA storage
- HPE iLO Advanced remote management for lights-out control
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 20,00 |
| Storage Controller | HPE Smart Array P408 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What rack depth does the 36 x 24 x 10 in chassis require for the rail kit?
The chassis is 36 in deep, so allow at least 36 in of usable rack depth plus cable clearance behind the rear panel.
How is the Smart Array P408 controller cabled to the eight 3.5 in drive bays, and what step is often missed?
Connect the P408 mini-SAS cables to the backplane ports; the step often missed is seating both cables fully so all eight bays are detected.
When the 500 W Flex Slot power supplies need replacement, what matching unit must be used?
Replace with another HPE 500 W Flex Slot supply; mixing wattages or form factors will prevent the server from posting.
