HPE
HPE ProLiant DL380 Gen9 12LFF 2x Xeon E5-2680v4 512GB DDR4 rack server
A 12-bay 3.5-inch rack server with dual Xeon E5-2680v4 processors and 512GB DDR4 memory, ready for custom storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size512GB
- Dual 14-core Xeon processors handle heavy workloads
- 512 GB DDR4 ECC memory supports large datasets
- 12-bay 3.5-inch chassis offers high-capacity storage
- P440ar SAS controller with expander manages multiple drives
- Dual 10 GbE and dual 1 GbE network ports enable fast connectivity

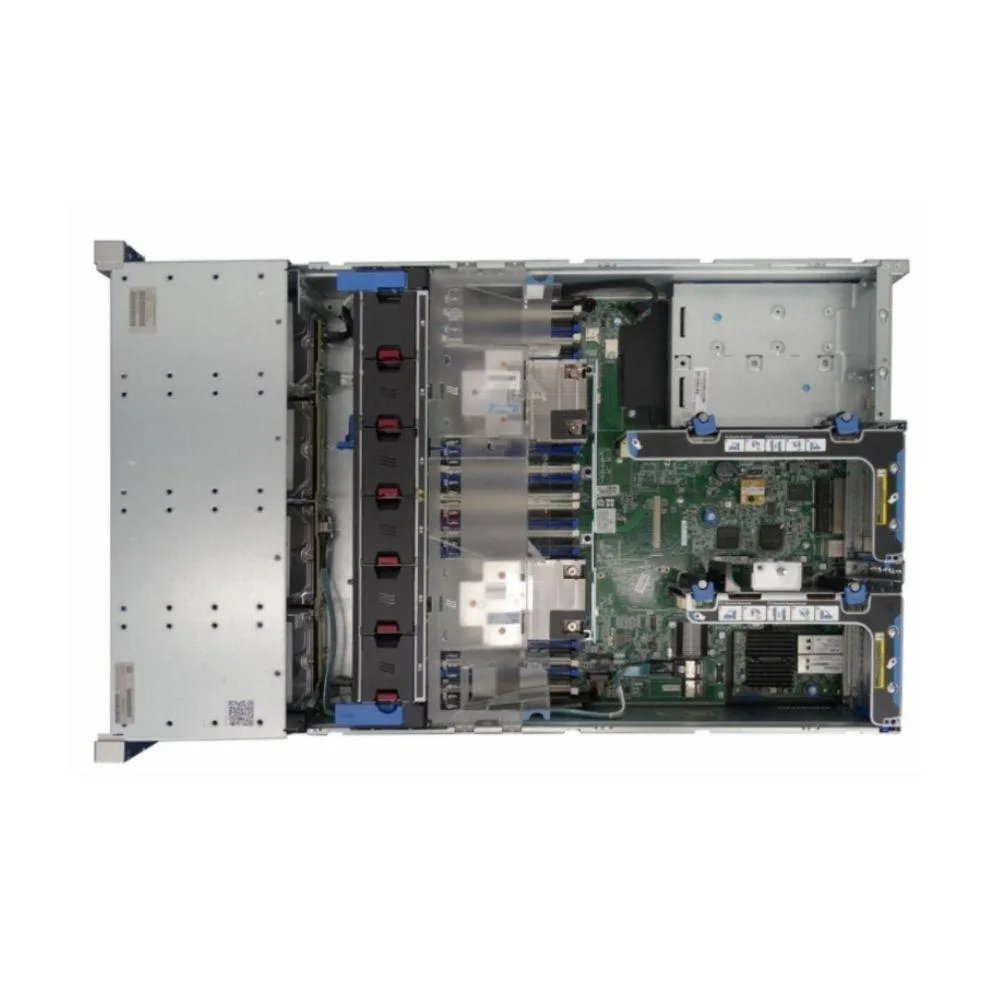

DL380 Gen9 12-bay rack server
The HPE ProLiant DL380 Gen9 is a 2U rack server built around two Intel Xeon E5-2680v4 processors running at 2.4 GHz with 14 cores each and 35 MB cache. It ships with 512 GB of DDR4 ECC registered memory and a Smart Array P440ar controller with SAS expander supporting up to twelve 3.5-inch SATA drive bays. Dual 800 W hot-plug power supplies and iLO Advanced remote management are included.
Suits virtualisation hosts needing dense memory
Buyers who need more than two processors or memory beyond the 3 TB maximum should consider larger platforms. Systems requiring GPU acceleration or fibre-channel connectivity are not addressed by this configuration. The 12-bay chassis limits raw storage device count compared to 24-bay variants.
Dual Xeon E5-2680v4 with 512 GB DDR4
The installed CPU and memory combination defines the performance envelope for compute-heavy workloads such as database servers or virtualisation clusters. Both processors and all 512 GB of DDR4 are factory-installed and tested. This specification determines whether the system matches the required core count, clock speed and memory capacity for the target application.
Points forts
- Dual 14-core Xeon processors handle heavy workloads
- 512 GB DDR4 ECC memory supports large datasets
- 12-bay 3.5-inch chassis offers high-capacity storage
- P440ar SAS controller with expander manages multiple drives
- Dual 10 GbE and dual 1 GbE network ports enable fast connectivity
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 512GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 6,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What thermal or power limit appears first when both Xeon E5-2680v4 CPUs run at full load continuously?
The dual 800W Flex Slot hot-plug power supplies set the ceiling; sustained full-load draw from two 14-core 2.4GHz processors will hit the PSU rating before the cooling capacity is exceeded.
How loud and hot does the 12LFF chassis get during 24/7 operation with the installed P440ar controller and dual 800W supplies?
Redundant 800W Flex Slot units and the 12-bay 3.5" airflow design keep noise at typical rack-server levels and temperatures within spec for continuous duty.
Which drive trays and caddies must I already have to populate the 12-bay 3.5" front enclosure?
The chassis accepts standard 3.5" LFF hot-plug trays; no proprietary carrier is required beyond what fits the Gen9 12LFF backplane.
