HPE ProLiant DL380 Gen9 12LFF 2x Xeon E5-2690 v4 128GB DDR4 rack server
Dual 14-core Xeon E5-2690 v4 processors at 2.6 GHz with 128 GB DDR4 ECC in a 12-bay 3.5-inch LFF chassis
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.6GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size128GB
- Dual 14-core Xeon 2.6GHz CPUs deliver high parallel throughput
- 128GB DDR4 ECC registered memory supports large workloads
- 12 LFF 3.5-inch drive bays enable massive storage capacity
- P440ar SAS controller with expander manages redundant arrays
- Dual 800W hot-plug supplies and iLO Advanced ensure uptime

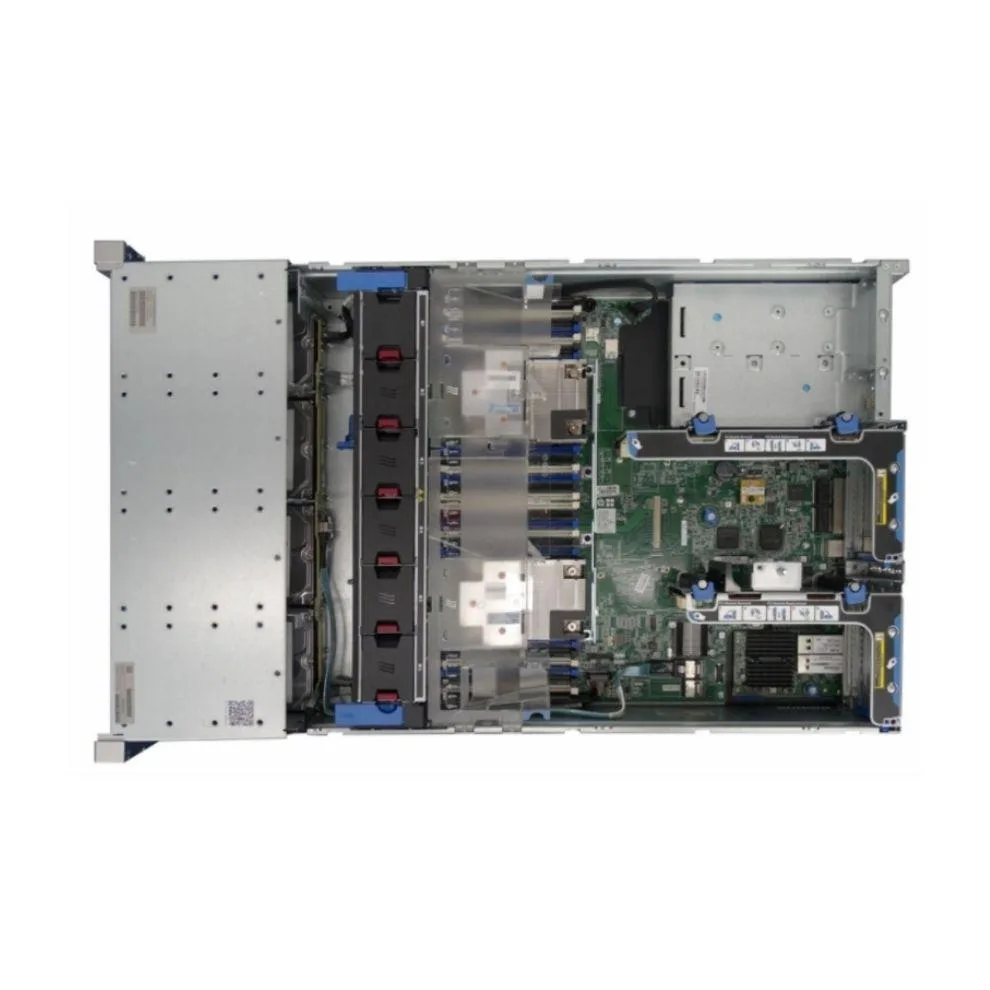

HPE ProLiant DL380 Gen9 12LFF Rack Server
The HPE ProLiant DL380 Gen9 12LFF is a 2U rack server configured with two Intel Xeon E5-2690 v4 processors at 2.6GHz and 128GB of DDR4 ECC registered memory. It includes a Smart Array P440ar SAS controller with expander supporting up to twelve 3.5-inch SATA drive bays and dual 800W hot-plug power supplies. Remote management is handled by HPE iLO Advanced.
Suited for virtualisation hosts
This configuration suits organisations needing high core counts and large memory capacity for virtualisation, database, or file-serving roles. The twelve-bay chassis provides dense local storage expansion using SATA drives. Buyers requiring GPU acceleration or more than two processor sockets should evaluate alternative platforms.
Twelve 3.5-inch drive bays define storage capacity
The single specification that decides fit is the twelve-bay 3.5-inch LFF chassis paired with the P440ar SAS controller. It dictates the maximum number of SATA drives installable and the RAID levels available. Confirm the bay count and controller match your storage design before purchase.
Points forts
- Dual 14-core Xeon 2.6GHz CPUs deliver high parallel throughput
- 128GB DDR4 ECC registered memory supports large workloads
- 12 LFF 3.5-inch drive bays enable massive storage capacity
- P440ar SAS controller with expander manages redundant arrays
- Dual 800W hot-plug supplies and iLO Advanced ensure uptime
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.6GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 128GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 48,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How many 3.5-inch drive bays does the 12LFF chassis provide for installation?
The chassis supports up to 12 drive bays for 3.5-inch SATA drives, with a Smart Array P440ar and SAS expander already installed.
What is the correct order for installing the two Xeon E5-2690 v4 processors and 128GB DDR4 memory?
Both processors are pre-installed in the dual-socket configuration; the 128GB DDR4 ECC registered memory is also factory-installed and tested.
When should the hot-plug power supplies be checked or replaced in this server?
Two 800W Flex Slot hot-plug power supplies are installed; monitor iLO alerts for degradation and replace a unit only if a fault is reported.
