HPE

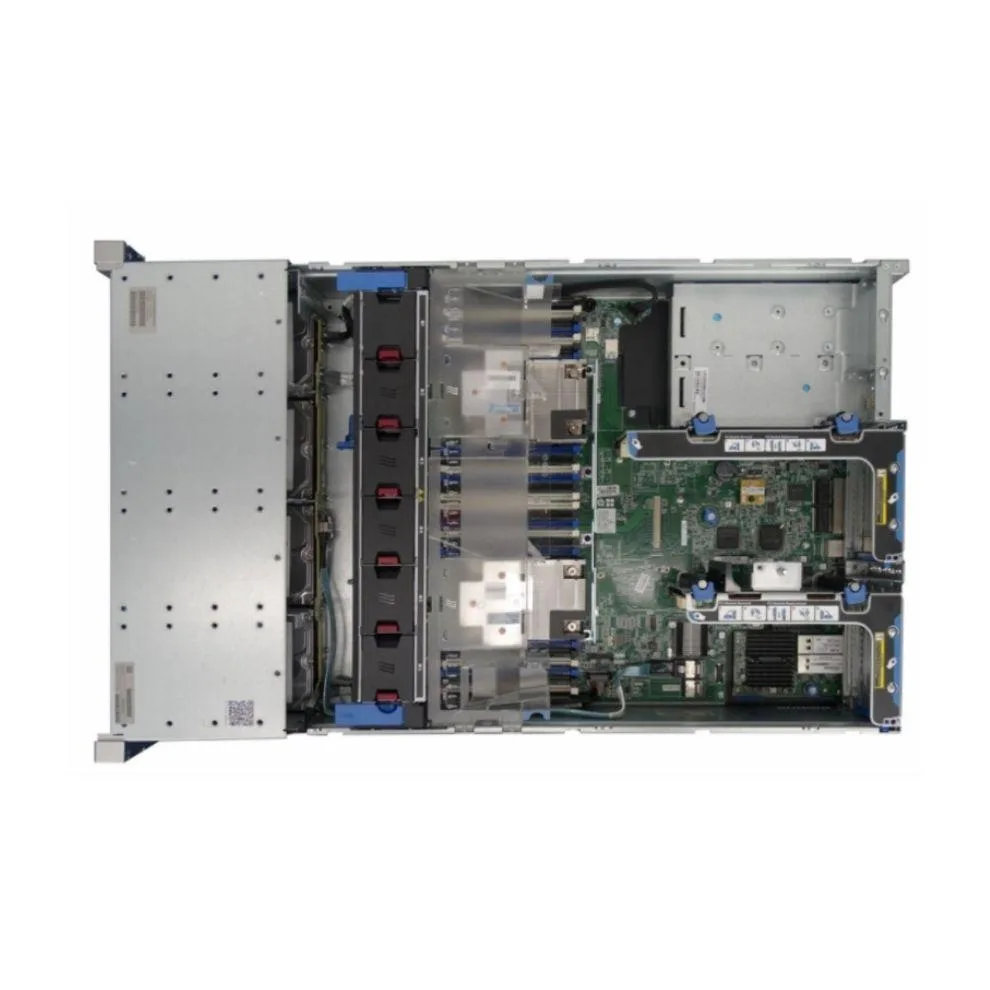

HPE ProLiant DL380 Gen9 12LFF rack server 1x Xeon E5-2620 v3 2.4GHz 384GB DDR4 no drive
12-bay 3.5-inch rack server with one Xeon E5-2620 v3 at 2.4 GHz and 384 GB DDR4 ECC memory, no drives included
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size384GB
- 12 large-form-factor drive bays support 3.5" SATA storage
- 384GB DDR4 ECC memory handles heavy virtualisation workloads
- Dual 800W hot-plug power supplies keep the system running
- HPE iLO Advanced remote management simplifies server administration
- Intel Xeon E5-2620 v3 six-core processor delivers 2.4GHz performance
12 LFF Drive Bay Server
The HPE ProLiant DL380 Gen9 chassis holds up to twelve 3.5-inch drive bays for high-capacity storage arrays. A single Xeon E5-2620 v3 processor at 2.4GHz with six cores and 15MB cache provides the compute base. 384GB of DDR4 ECC registered memory is installed across the available slots. The system ships without drives so you can populate the bays with the SATA devices your workload requires.
Sustained Load Behaviour
Dual 800W hot-plug power supplies share the load and keep the server running if one unit fails. The P440ar SAS controller with expander manages all twelve bays through a single RAID domain. Intel I350 and X540 network adapters deliver two 10GbE and two 1GbE ports for continuous data movement. HPE iLO Advanced remote management stays active even when the host OS is halted, allowing firmware updates and power cycling without physical access.
Practical Interface Limits
The SAS expander connects every 3.5-inch bay to the P440ar controller using SATA or SAS signalling, so drive count is limited by the twelve physical slots rather than controller ports. DDR4 memory scales to 3TB when a second processor is added and all DIMM slots are filled. The second CPU socket remains empty in this configuration, leaving room for a matching Xeon E5-2620 v3 to double thread count and memory channels. Network throughput tops out at the two 10GbE ports provided by the installed adapters.
Points forts
- 12 large-form-factor drive bays support 3.5" SATA storage
- 384GB DDR4 ECC memory handles heavy virtualisation workloads
- Dual 800W hot-plug power supplies keep the system running
- HPE iLO Advanced remote management simplifies server administration
- Intel Xeon E5-2620 v3 six-core processor delivers 2.4GHz performance
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 16,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How much heat and power will the dual 800W supplies and 2.4GHz Xeon 2620 v3 generate under continuous load?
The server includes two 800W Flex Slot hot-plug power supplies and a single Xeon E5-2620 v3 at 2.4GHz with six cores and 15MB cache; actual heat output and draw depend on the workload and any second processor you add.
Which drives and caddies must I supply to populate the twelve 3.5-inch bays?
The 12LFF chassis provides twelve 3.5-inch bays with a P440ar SAS controller and expander supporting SATA drives; no drives or caddies are installed, so you must provide both.
Can I keep my existing DDR4 ECC registered modules when expanding the 384GB already installed?
The system holds 384GB of DDR4 ECC registered memory today and supports up to 3TB total; additional modules must match the DDR4 ECC registered type already present.
