HPE
HPE ProLiant DL380 Gen9 12LFF rack server 1x Xeon E5-2620 v3 64GB DDR4
A 12-bay 3.5-inch rack server with one 2.4 GHz Xeon E5-2620 v3 processor and 64 GB DDR4 memory, ready for custom storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size64GB
- 12 x 3.5 inch drive bays for high-density storage
- 1x Xeon E5-2620 v3 at 2.4GHz with 6 cores and 15MB cache
- 64GB DDR4 ECC registered memory for reliable performance
- P440ar SAS controller with expander for flexible RAID options
- Dual 800W hot-plug power supplies for redundancy
HPE DL380 Gen9 12LFF server with Xeon E5-2620 v3

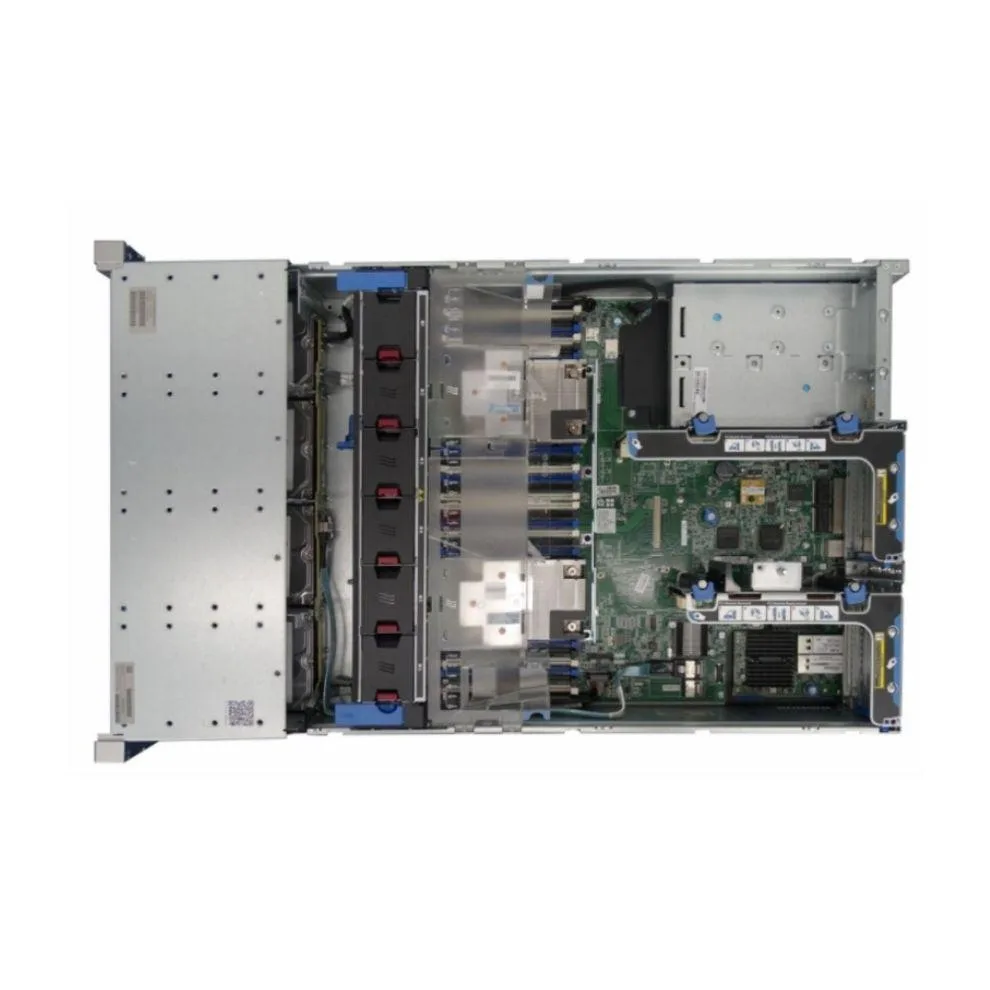

The HPE ProLiant DL380 Gen9 is a 2U rack server that ships with a single Intel Xeon E5-2620 v3 processor running at 2.4 GHz and 64 GB of DDR4 ECC registered memory. It uses a 12-bay 3.5-inch LFF chassis and includes an HP Smart Array P440ar controller with a SAS expander for SATA drives. Remote management is provided by HPE iLO Advanced. The unit is new and has updated firmware.
Ideal for storage-heavy workloads
This configuration suits teams that need dense 3.5-inch drive capacity and room for a second processor up to the two-socket maximum. Organisations that require 2.5-inch SFF bays, more than 12 drive slots, or a GPU-ready chassis should look at a different platform. Buyers needing installed operating-system drives must add them separately.
12-bay 3.5-inch LFF chassis with P440ar controller
The server supports up to twelve 3.5-inch SATA hard drives managed by the P440ar RAID controller and SAS expander. No drives are installed, so storage capacity and RAID level are defined at deployment. Maximum memory reaches 3 TB across the available DIMM slots.
Points forts
- 12 x 3.5 inch drive bays for high-density storage
- 1x Xeon E5-2620 v3 at 2.4GHz with 6 cores and 15MB cache
- 64GB DDR4 ECC registered memory for reliable performance
- P440ar SAS controller with expander for flexible RAID options
- Dual 800W hot-plug power supplies for redundancy
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 4,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What rack depth and width does the 36 x 24 x 10 inch chassis require?
The unit is 36 inches deep, 24 inches wide and 10 inches high, so the rack must provide at least 36 inches of usable depth and a 24-inch wide mounting opening.
How are the two 800W Flex Slot power supplies installed, and what step is often missed?
Slide each supply into the rear bays until the latch clicks, then connect both to separate circuits; the step often missed is seating the second supply firmly enough to engage its latch.
When should the 64GB DDR4 ECC registered memory be upgraded or replaced?
Add modules when workloads exceed the installed 64GB, up to the 3TB maximum; replace any module that triggers a corrected-error alert in iLO or fails POST memory test.
