HPE ProLiant DL380 Gen9 8SFF rack server 2x Xeon E5-2650L v3 384GB DDR4
Rack server with two 1.8 GHz 12-core Xeon processors, 384 GB DDR4 memory, eight 2.5-inch drive bays and a P440 SAS controller
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed1.8GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size384GB
- Dual 12-core Xeon processors deliver 24 threads for parallel workloads
- 384GB DDR4 ECC memory supports large datasets and virtualisation
- Eight 2.5-inch drive bays with P440 SAS controller enable flexible storage arrays
- Integrated iLO Advanced remote management simplifies lights-out administration
- Redundant 500W power supplies maintain uptime during module failure

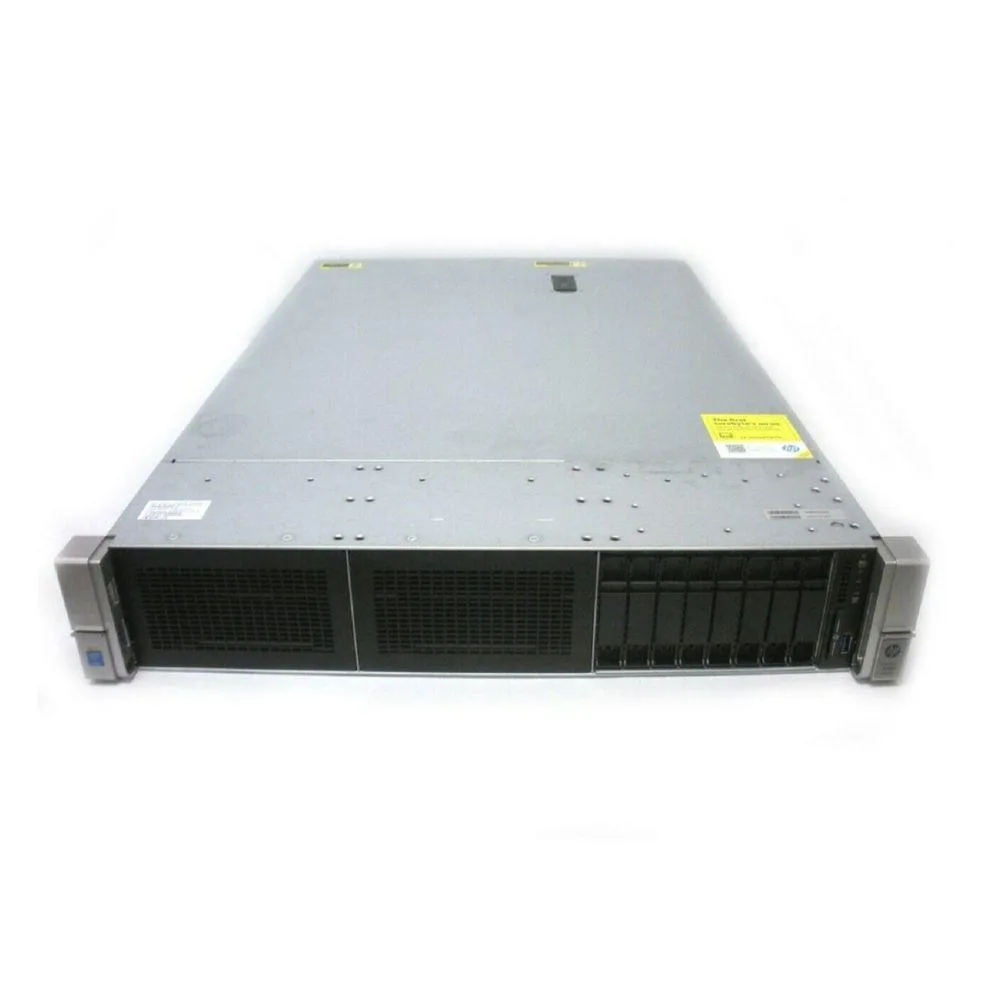

HPE ProLiant DL380 Gen9 8SFF server
The HPE ProLiant DL380 Gen9 is a 2U rack server fitted with two Xeon E5-2650L v3 processors running at 1.8 GHz, twelve cores each and 30 MB cache. It ships with 384 GB of DDR4 ECC registered memory and a Smart Array P440 SAS controller that supports up to eight 2.5-inch SATA drive bays. Remote management is provided by HPE iLO Advanced and dual 500 W Flex Slot power supplies are installed.
Suited for memory-heavy workloads.
This configuration suits virtualisation hosts, database caching tiers and compute clusters that benefit from large memory capacity and dual-socket parallelism. Buyers who require higher single-thread frequencies, GPU acceleration or storage interfaces beyond SATA and SAS should evaluate other platforms.
384 GB DDR4 ECC registered memory
The installed 384 GB of DDR4 ECC registered memory is the decisive specification; it determines whether the system can hold the working set for your applications. The chassis accepts up to 3 TB in total, so additional modules can be added later if the current capacity proves insufficient.
Points forts
- Dual 12-core Xeon processors deliver 24 threads for parallel workloads
- 384GB DDR4 ECC memory supports large datasets and virtualisation
- Eight 2.5-inch drive bays with P440 SAS controller enable flexible storage arrays
- Integrated iLO Advanced remote management simplifies lights-out administration
- Redundant 500W power supplies maintain uptime during module failure
Caractéristiques
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 1.8GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 15,36 |
| Storage Controller | HPE Smart Array P440 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What power-supply redundancy do I need to run the two 500 W Flex Slot units installed in this DL380 Gen9?
The server ships with two 500 W Flex Slot power supplies, providing 1+1 redundancy for the dual Xeon E5-2650L v3 configuration.
Can my existing 2.5-inch SATA drives connect directly to the P440 SAS controller in this chassis?
Yes, the P440 PCIe SAS controller supports SATA drives, so 2.5-inch SATA SSDs or HDDs plug into the eight front bays without an interposer.
How do I confirm the full 384 GB of DDR4 ECC registered memory is recognised after the firmware update?
During POST the memory count will display 384 GB, and the iLO Advanced interface will show all DIMM slots populated with zero correctable errors.
