HPE

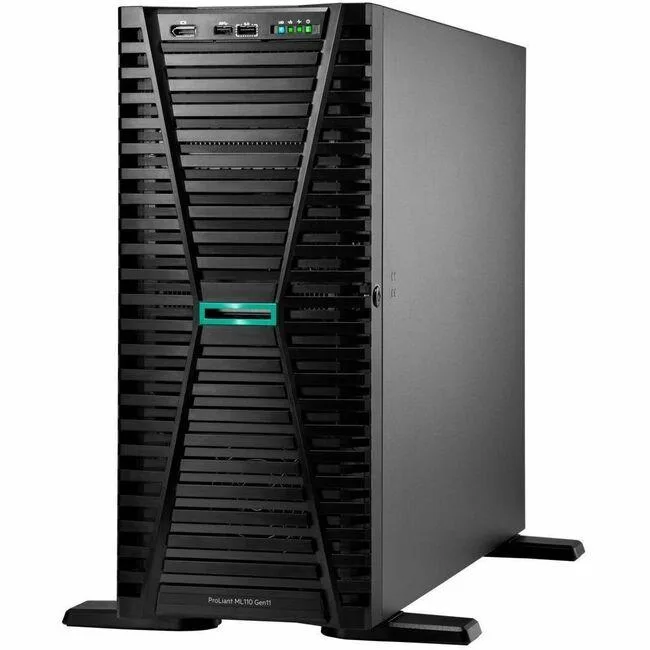

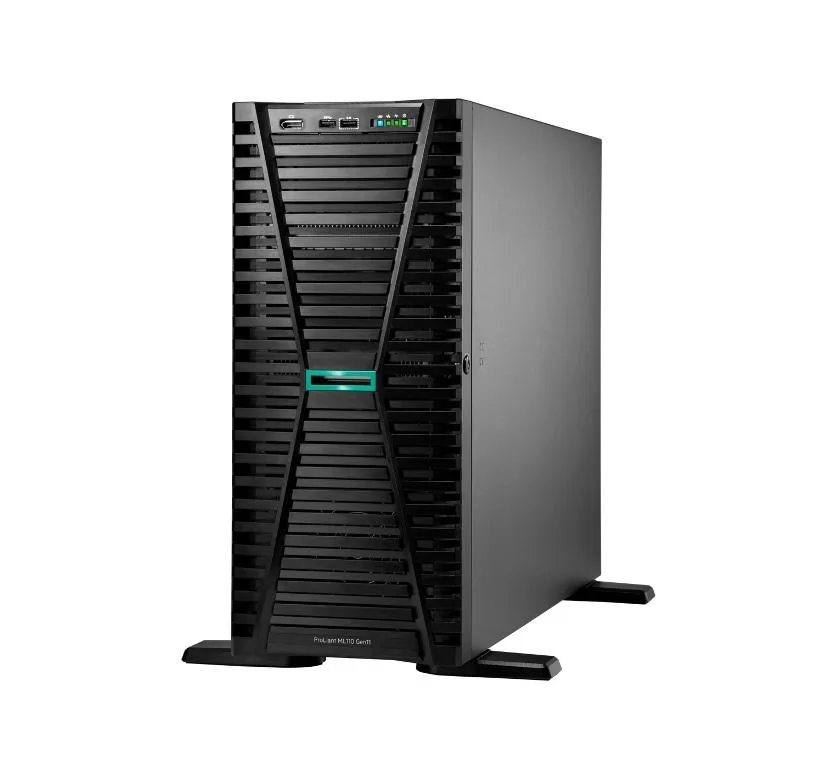

HPE ProLiant ML110 Gen11 4.5U Tower Server Xeon Gold 5416S 2.0 GHz 16-Core 32GB DDR5 P55537-001
4.5U tower server with 16-core Xeon at 2.0 GHz and 32 GB DDR5, expandable to 1 TB memory
- TypeTower
- SecurityUEFI Secure Boot and Secure Start support Immutable Silicon
- CPU TypeIntel Xeon Gold
- CPU Speed5416S (2.0 GHz)
- Number of CPU Cores16-Core Processor
- # of Processors Installed1
- 16-core Xeon Gold 5416S at 2.0 GHz drives multi-thread workloads
- 32 GB DDR5 installed with 1 TB maximum capacity for growth

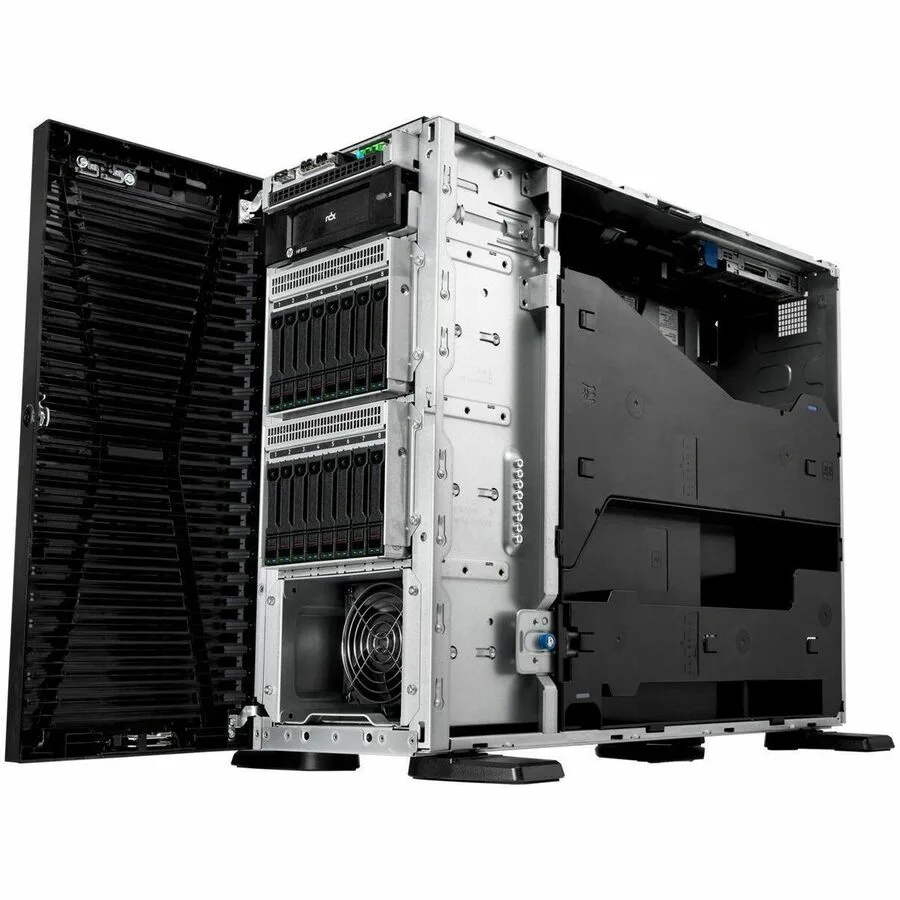

- 8 small-form-factor bays in a 4.5U tower for local storage density
- HPE iLO 6 with Silicon Root of Trust and FIPS 140-3 validation
- Single 800 W power supply supports the configured platform
Server Purpose
The HPE ProLiant ML110 Gen11 is a 4.5U tower server built around a single Intel Xeon Gold 5416S processor running at 2.0 GHz with 16 cores. It ships with 32 GB of DDR5 memory and supports up to 1 TB across 16 slots. The platform targets small offices, remote branches and growing businesses that need expandable compute and storage in a standalone form factor.
Installation Notes
The chassis measures 18.2 inches high, 7.7 inches wide and 23.1 inches deep, weighing 44.31 lb. Eight SFF drive bays provide internal storage capacity while a single 800 W power supply delivers power. Installers should verify rack clearance if the optional rackable chassis is used and confirm that DDR5 modules match the 16 available slots for future upgrades.
Interface Limits
The server uses the Intel C741 chipset and includes Gigabit Ethernet for network connectivity. PCIe Gen5 lanes are available for expansion cards but total bandwidth depends on the single processor configuration. Memory speed follows DDR5 JEDEC standards supported by the Xeon Gold 5416S and the system maxes out at one processor, so dual-socket scaling is not possible.
Points forts
- 16-core Xeon Gold 5416S at 2.0 GHz drives multi-thread workloads
- 32 GB DDR5 installed with 1 TB maximum capacity for growth
- 8 small-form-factor bays in a 4.5U tower for local storage density
- HPE iLO 6 with Silicon Root of Trust and FIPS 140-3 validation
- Single 800 W power supply supports the configured platform
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant |
| Model | ProLiant ML110 Gen11 |
| Part Number | P55537-001 |
| Type | Tower |
| Security | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates -- components digitally signed and verified Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of N |
| CPU Type | Intel Xeon Gold |
| CPU Speed | 5416S (2.0 GHz) |
| Number of CPU Cores | 16-Core Processor |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 32GB |
| Memory Type | DDR5 |
| Max Memory Capacity | 1TB |
| Number of Memory Slots | 16 |
| Remote Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| Dimensions | Height: 18.2" Width: 7.7" Depth: 23.1" |
| Weight | 44.31 lb |
| Poids d’expédition | 7.26 kg |
| Dimensions du colis | 889 × 635 × 381 mm |
Questions sur cet article
How do I confirm the HPE iLO remote management is responding after first power-on?
Connect a network cable to the server, then browse to the iLO IP shown on the front-panel display; the login prompt confirms the embedded management firmware is running.
What ships inside the box and what must I purchase separately?
The box contains the 4.5U tower chassis with one Xeon Gold 5416S processor, 32 GB DDR5 memory, one 800 W power supply, eight SFF drive bays, and the Intel C741 chipset; drives, extra memory, and a rack-mount kit are not included.
Which memory capacity should I choose for this single-processor configuration?
The system supports up to 1 TB across 16 DDR5 slots; with 32 GB already installed you can add modules in matched pairs until you reach the workload target or the 1 TB limit.
