HPE

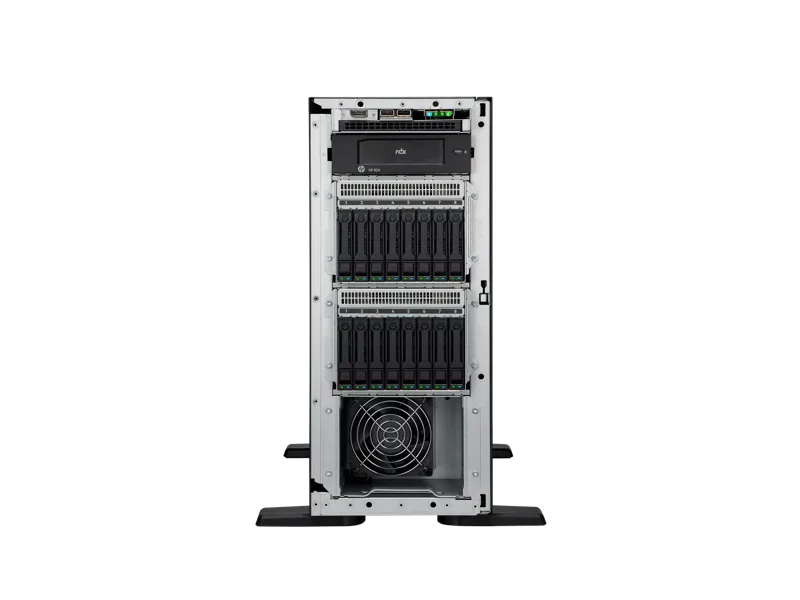

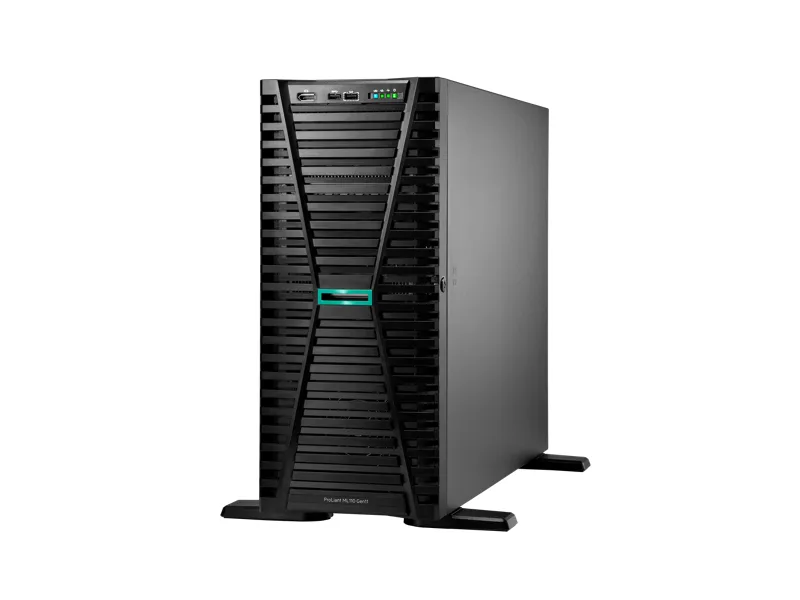

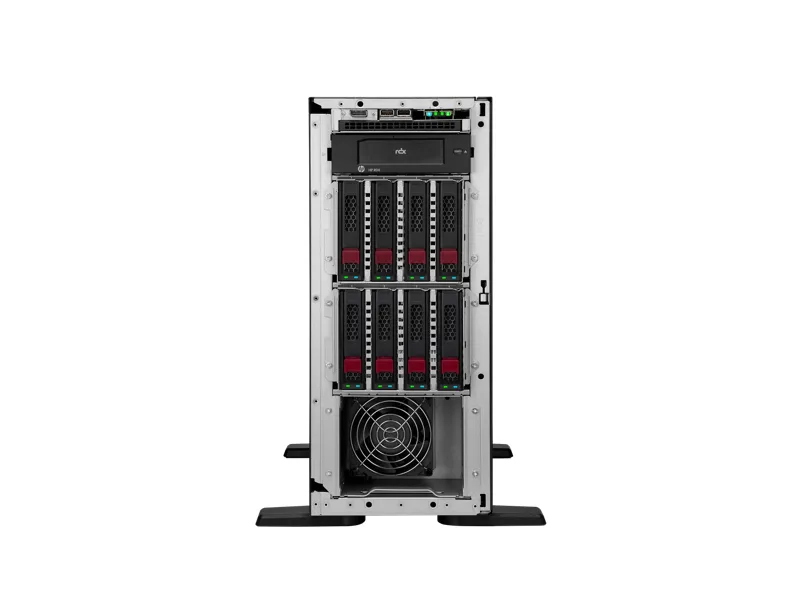

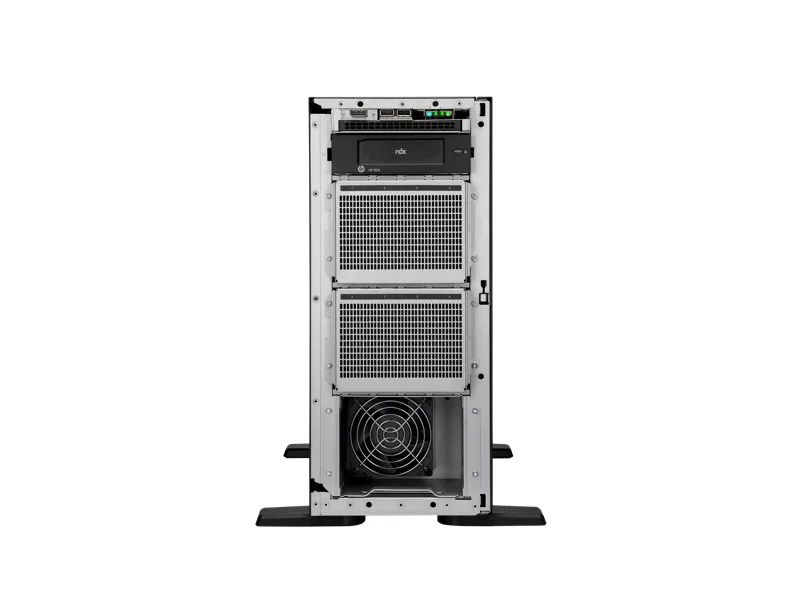

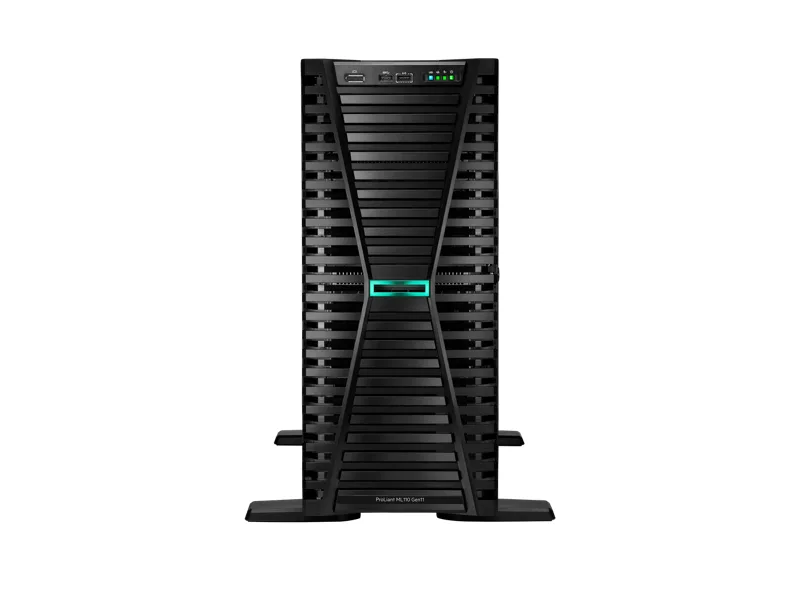

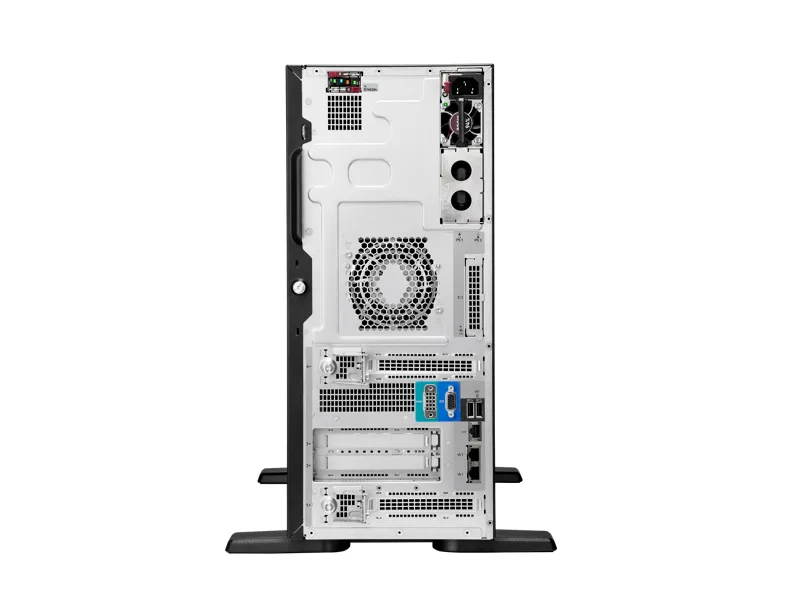

HPE ProLiant ML110 Gen11 P83317-005 Xeon Gold 5416S 16-Core 2.0GHz 64GB DDR5 2x960GB SATA 2x800W Rack Server
Rack tower server with 16-core Xeon Gold 5416S at 2.0GHz, 64GB DDR5, dual 960GB SATA SSDs and redundant 800W power supplies
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height4.5U/Tower
- Hot-swap Fans2 x Standard Fans
- CPU TypeIntel Xeon Gold
- CPU Speed5416S (2.00GHz)
- 16-core Xeon Gold 5416S at 2.0 GHz handles heavy workloads
- 64 GB DDR5 Smart Memory at 4800 MT/s speeds data access
- Dual 960 GB SATA SSDs provide fast read-intensive storage
- Redundant 800 W hot-plug power supplies keep systems running
- 5U tower or rack form factor fits flexible deployments
General Purpose Server Platform
The HPE ProLiant ML110 Gen11 is a rack-mountable tower server built for general purpose workloads. It ships with a single Intel Xeon Gold 5416S processor delivering 16 cores at 2.0 GHz and 30 MB of L3 cache. The system includes 64 GB of HPE DDR5 Smart Memory configured as two 32 GB modules running at 4800 MT/s. Two 960 GB SATA read-intensive SSDs provide boot and primary storage through the integrated MR408i-o controller.
Sustained Load Behaviour
Dual 800 W Flex Slot Platinum power supplies deliver redundant power for continuous operation under heavy demand. The MR408i-o storage controller uses x8 PCIe Gen5 lanes and 4 GB of cache to maintain consistent throughput for the installed SATA SSDs. Two standard hot-swap fans provide active cooling across the 4.5U chassis during extended compute tasks. The single-socket design focuses all 16 cores on parallel workloads without inter-processor latency.
Thermals Noise And Power
Redundant 800 W hot-plug power supplies share the load to reduce individual unit stress and fan speed. Standard hot-swap fans adjust airflow based on internal temperature sensors across the 24.8 by 7.21 by 23.62 inch chassis. Platinum efficiency ratings minimise waste heat during normal operation. The tower orientation allows flexible placement where rack mounting is not available.
Points forts
- 16-core Xeon Gold 5416S at 2.0 GHz handles heavy workloads
- 64 GB DDR5 Smart Memory at 4800 MT/s speeds data access
- Dual 960 GB SATA SSDs provide fast read-intensive storage
- Redundant 800 W hot-plug power supplies keep systems running
- 5U tower or rack form factor fits flexible deployments
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant ML110 G11 |
| Model | P83317-005 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 4.5U/Tower |
| Hot-swap Fans | 2 x Standard Fans |
| CPU Type | Intel Xeon Gold |
| CPU Speed | 5416S (2.00GHz) |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 30 MB L3 Cache |
| # of Processors Installed | 1 |
| Installed Memory Size | 64 GB (2x32 GB, 4800 MT/s) |
| Memory Type | HPE DDR5 Smart Memory |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| SSD (Installed) | 2 x HPE 960GB SATA 6G Read Intensive SFF |
| Ethernet Controller | Embedded 2-Port 1GbE BCM5720 networking ports |
| Expansion Slots | 2 to 4 x16 PCIe Gen5 and 1 x16 OCP3 slot |
| Power Characteristics | 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Dimensions | 24.8" x 7.21" x 23.62" |
| Weight | 27.117 lbs. |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 508 × 508 × 152 mm |
Questions sur cet article
How much power do the two 800W platinum supplies draw when the server runs 24/7?
The dual 800W Flex Slot platinum units share the load and only pull what the components need, so actual draw varies with CPU and storage utilisation.
Which rack rails or tower feet must I already have to mount this 4.5U chassis?
The 4.5U rack-tower chassis ships with standard mounting hardware; no extra rails or feet are required for either orientation.
Will my existing PCIe Gen4 add-in cards work in the x16 Gen5 slots?
The two to four x16 PCIe Gen5 slots and the x16 OCP3 slot are backward compatible, so Gen4 cards install and operate at Gen4 speeds.
