Small green circuit board 22 by 80 millimetres with gold edge connector and black controller chip

HUADISK

HUADISK HYV128X3(4280) 128GB 2242 NVMe internal SSD

SKU CH-XH66-A19QN

128 GB 2242 NVMe drive includes a 2280 extension board for dual-slot compatibility, delivering 2000 MBps read and 1100 MBps write

  • Max Sequential ReadUp to 2000 MBps
  • Max Sequential WriteUp to 1100 MBps
  • 4KB Random ReadUp to 200,000 IOPS
  • 4KB Random WriteUp to 230,000 IOPS
  • Terabytes Written (TBW)60TB
  • MTBF1,000,000 hours

Capacity 128GB

  • Sequential read speed up to 2000 MBps for fast boot and load times
  • Sequential write speed up to 1100 MBps for quick file saves
  • Random read up to 200000 IOPS for snappy multitasking
  • Random write up to 230000 IOPS for responsive application performance
  • 60 TBW endurance rating supports heavy daily workloads

128 GB 2242 NVMe with 2280 adapter

The HUADISK HYV128X3(4280) is a 128 GB internal SSD built on 3D NAND and the NVMe 1.3 protocol. It ships as a 2242 module paired with an extension board that converts it to the 2280 form factor for dual-slot compatibility. The drive targets laptops, desktops and single-board computers such as Raspberry Pi where a compact NVMe upgrade is needed.

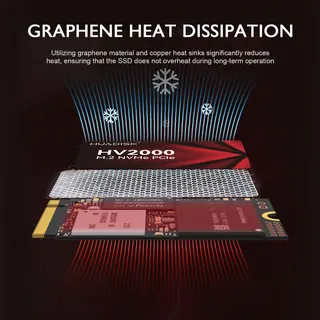

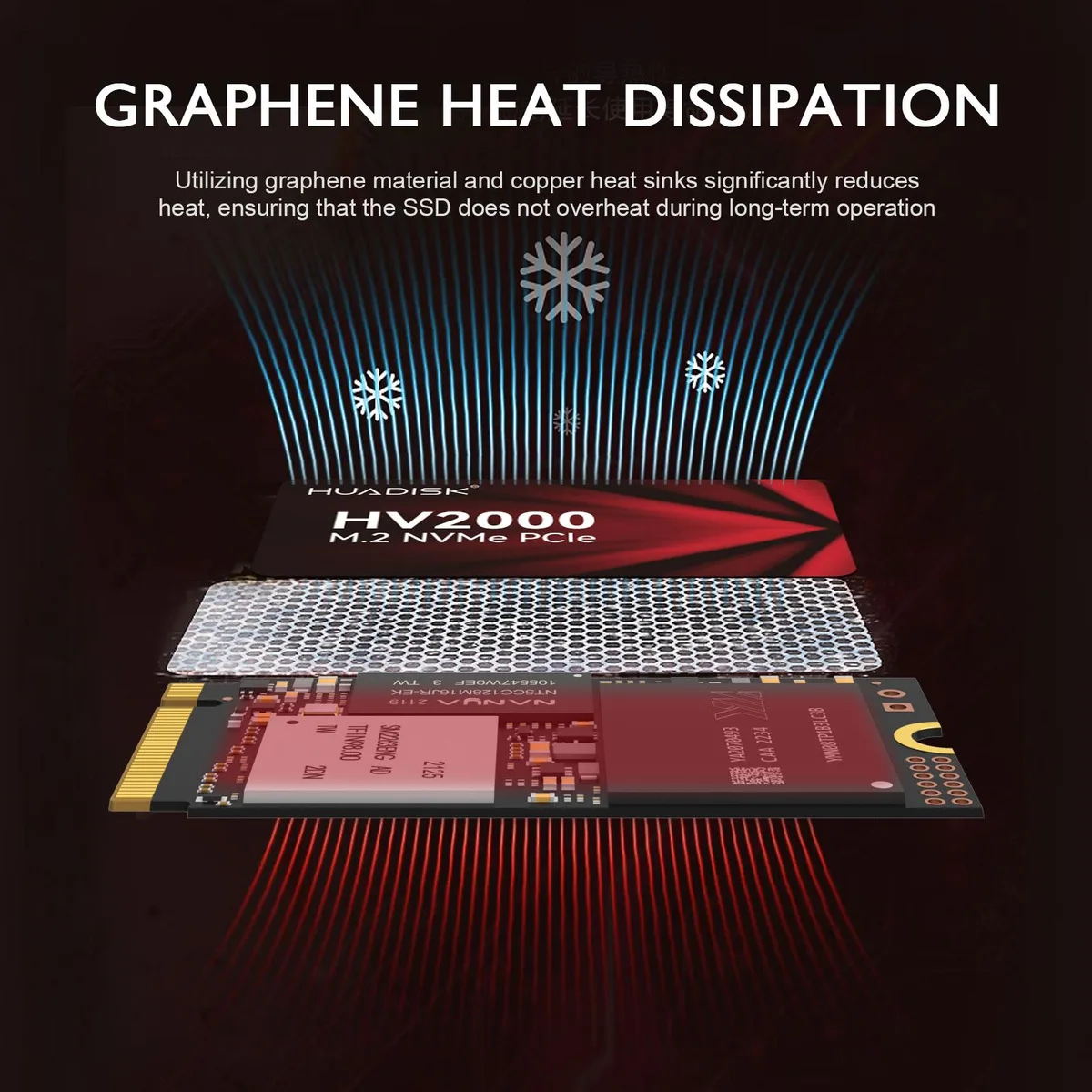

Graphene cooling and tool-free conversion

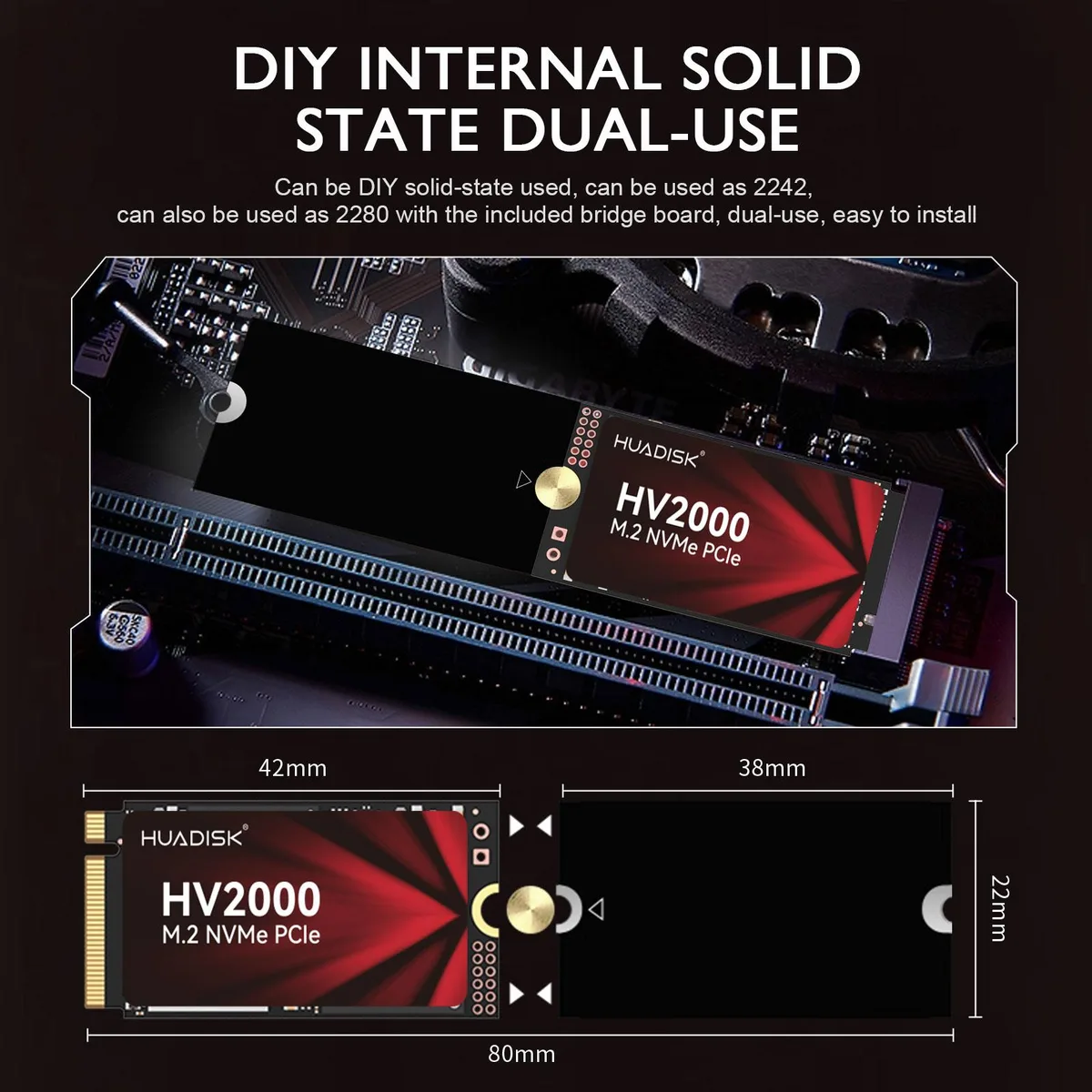

The 2242 module uses a graphene layer to dissipate heat during sustained workloads such as 4K editing or large file transfers. Attaching the supplied extension board requires no tools and retains full PCIe 3.0 x4 signalling, so the drive fits both 2242 and 2280 M.2 slots without performance loss. Active power draw is 3.23 W and idle draw is 1.19 W.

PCIe 3.0 x4 limits sequential speed to 2000 MB/s

The four-lane Gen 3 interface caps maximum sequential read at 2000 MB/s and write at 1100 MB/s, with 4 KB random performance of 200,000 read IOPS and 230,000 write IOPS. Endurance is rated at 60 TBW and MTBF at 1,000,000 hours. Operating temperature range is 0 °C to 70 °C, so sustained heavy loads in poorly ventilated chassis may throttle before the drive reaches its peak throughput.

Points forts

  • Sequential read speed up to 2000 MBps for fast boot and load times
  • Sequential write speed up to 1100 MBps for quick file saves
  • Random read up to 200000 IOPS for snappy multitasking
  • Random write up to 230000 IOPS for responsive application performance
  • 60 TBW endurance rating supports heavy daily workloads

Caractéristiques

Max Sequential ReadUp to 2000 MBps
Max Sequential WriteUp to 1100 MBps
4KB Random ReadUp to 200,000 IOPS
4KB Random WriteUp to 230,000 IOPS
Terabytes Written (TBW)60TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Form FactorM.2 2280
Capacity128GB
InterfacePCI-Express 3.0 x4
Memory Components3D NAND
ProtocolNVMe 1.3
Power Consumption (Active)3.23W
Power Consumption (Idle)1.19W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
BrandHUADISK
SeriesHYVXXXX3(4280)
ModelHYV128X3(4280)
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Height22mm
Width80mm
Depth2.1mm
Weight100g

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What interface and PCIe generation does the HUADISK HYV128X3(4280) use, and what throughput does that cap?

It runs on PCI-Express 3.0 x4 with NVMe 1.3, limiting sequential reads to 2000 MBps and writes to 1100 MBps.

What physical space and mounting points does the drive need?

The module is 22 mm by 80 mm by 2.1 mm and weighs 100 g, fitting a standard M.2 2280 slot with a single screw mount.
