Green M.2 2280 SSD circuit board with black controller and silver label

HUADISK

HUADISK HYV512X3(XT) 512GB M.2 2280 internal SSD

SKU CH-6MRQ-64KWV

A 512GB M.2 2280 internal SSD delivering up to 2500 MBps read and 1900 MBps write speeds with 300TB endurance

  • Max Sequential ReadUp to 2500 MBps
  • Max Sequential WriteUp to 1900 MBps
  • 4KB Random ReadUp to 200,000 IOPS
  • 4KB Random WriteUp to 230,000 IOPS
  • Terabytes Written (TBW)300TB
  • MTBF1,000,000 hours

Capacity 512GB

  • Reads up to 2500 MB/s for fast boot and app load
  • Writes up to 1900 MB/s for quick file saves and transfers
  • Random read 200000 IOPS for snappy multitasking
  • Random write 230000 IOPS for responsive heavy workloads
  • 300 TBW and 1000000 hours MTBF for long-term reliability

HUADISK 512GB NVMe SSD

The HUADISK HYV512X3(XT) is a 512GB internal solid-state drive built on the M.2 2280 form factor. It connects through a PCI-Express 3.0 x4 interface and uses 3D NAND memory with NVMe 1.3 protocol. Sequential reads reach up to 2500 MBps and writes up to 1900 MBps.

Suits PCIe 3.0 desktops and laptops

This drive suits desktops and laptops with an M.2 slot wired for PCIe 3.0 x4 and NVMe support. It operates from 0°C to 70°C and draws 3.23W active or 1.19W idle. Systems without an M.2 NVMe slot or those limited to PCIe 2.0 will not achieve the rated throughput.

300TBW endurance rating

The drive is rated for 300TBW with a 1,000,000-hour MTBF. Random read peaks at 200,000 IOPS and random write at 230,000 IOPS. No heatsink is included, so airflow across the controller is required for sustained workloads.

Points forts

  • Reads up to 2500 MB/s for fast boot and app load
  • Writes up to 1900 MB/s for quick file saves and transfers
  • Random read 200000 IOPS for snappy multitasking
  • Random write 230000 IOPS for responsive heavy workloads
  • 300 TBW and 1000000 hours MTBF for long-term reliability

Caractéristiques

Max Sequential ReadUp to 2500 MBps
Max Sequential WriteUp to 1900 MBps
4KB Random ReadUp to 200,000 IOPS
4KB Random WriteUp to 230,000 IOPS
Terabytes Written (TBW)300TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Form FactorM.2 2280
Capacity512GB
InterfacePCI-Express 3.0 x4
Memory Components3D NAND
ProtocolNVMe 1.3
Power Consumption (Active)3.23W
Power Consumption (Idle)1.19W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
BrandHUADISK
SeriesHYVXXXX3(XT)
ModelHYV512X3(XT)
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Height22mm
Width80mm
Depth2.1mm
Weight40g

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will this drive fit in a standard M.2 2280 slot on a laptop motherboard?

Yes, the form factor is M.2 2280 with dimensions of 80mm length, 22mm width and 2.1mm depth, matching the standard slot size.

Does the drive require a separate heatsink for sustained workloads?

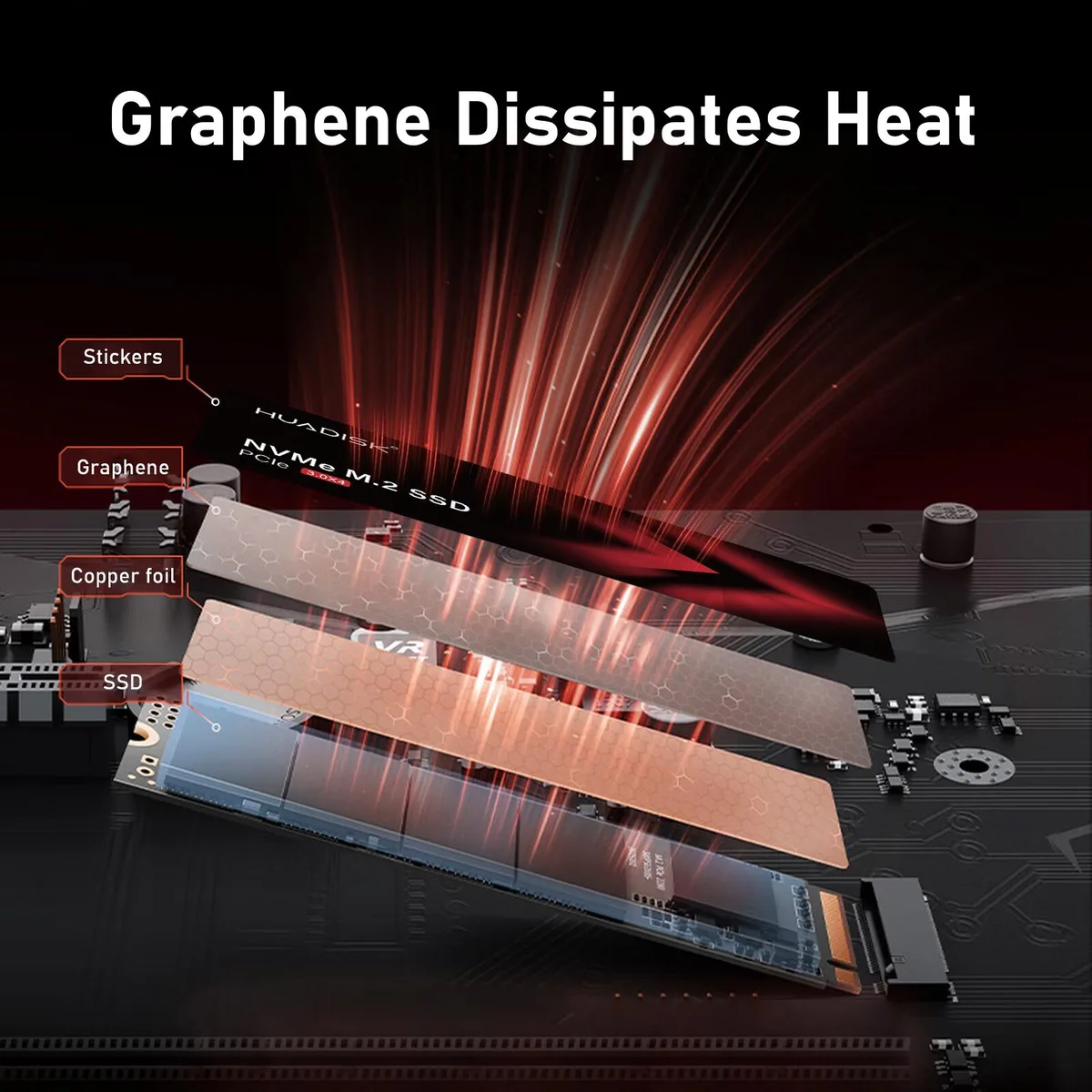

The drive includes graphene layers for heat dissipation and is listed without a separate heatsink; it operates within 0°C to 70°C.

What is the endurance rating for this 512GB model?

The drive is rated for 300TBW (Terabytes Written) with an MTBF of 1,000,000 hours.
