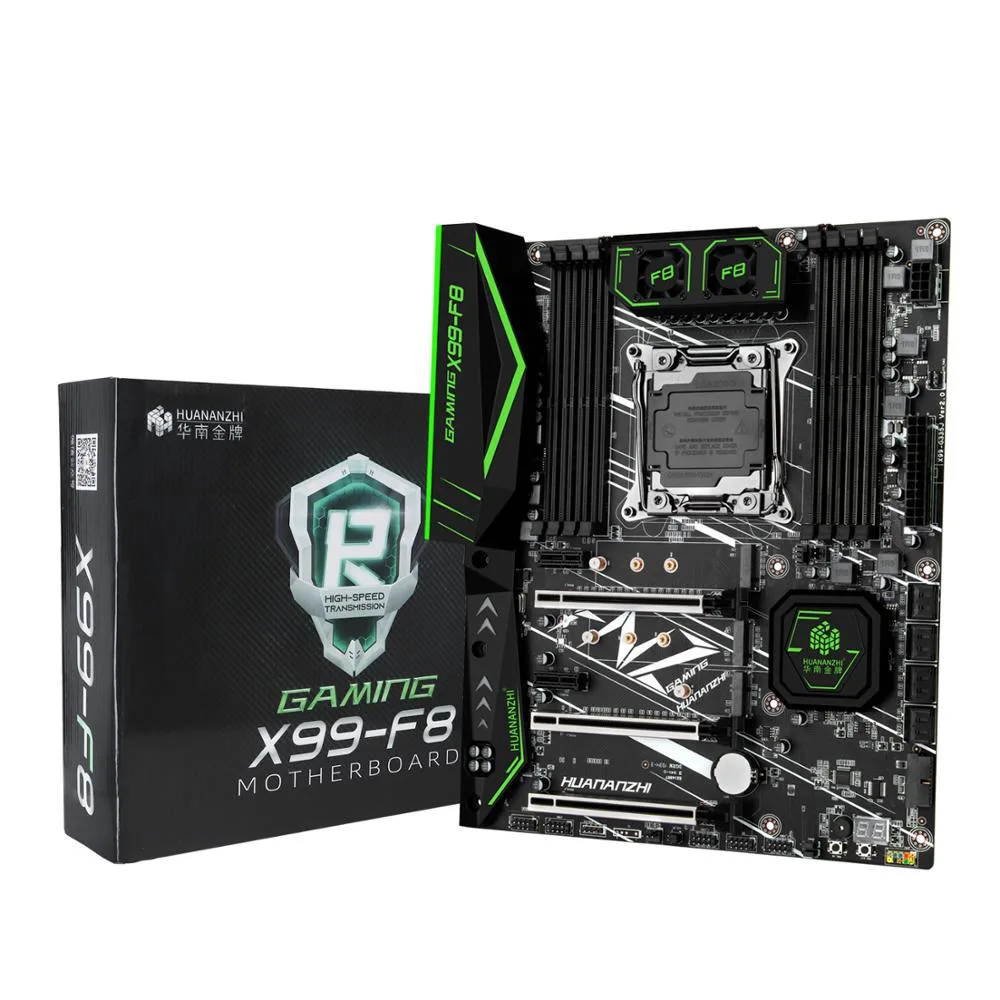

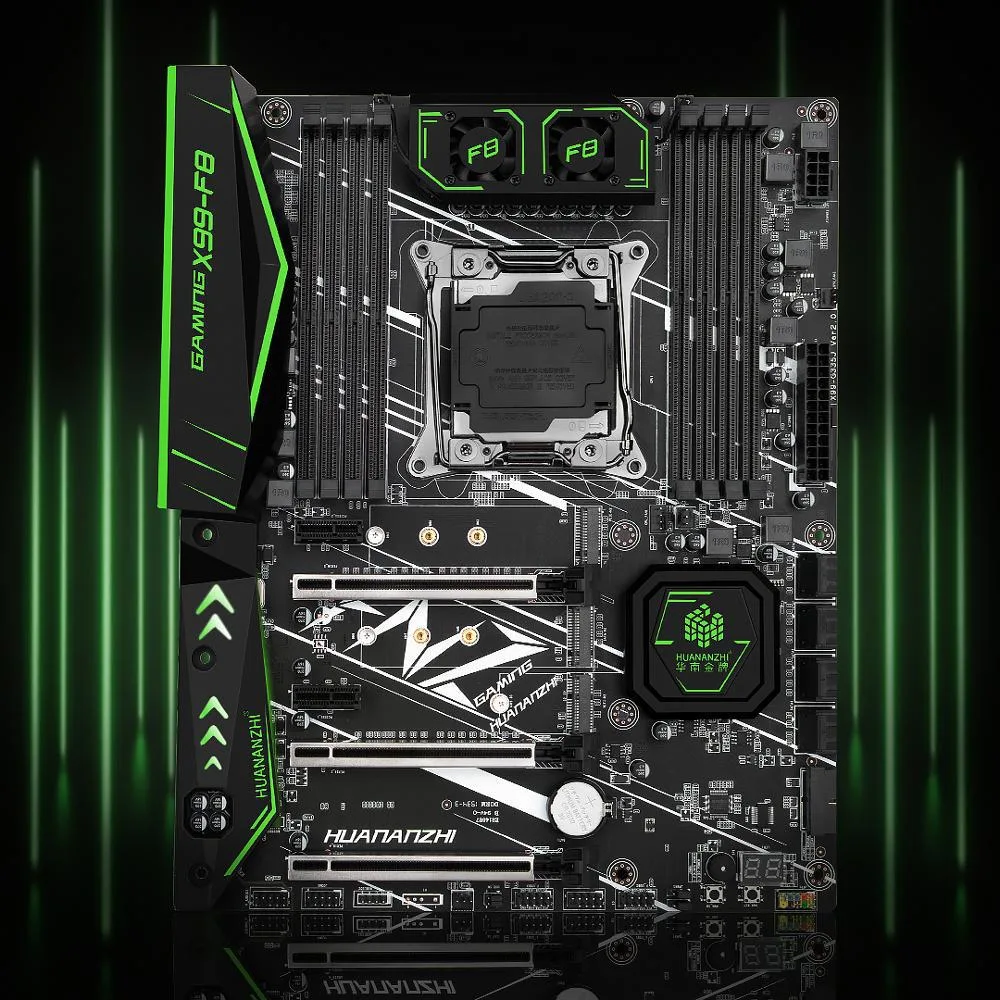

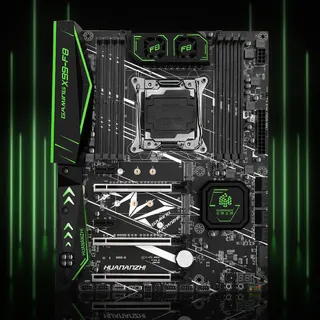

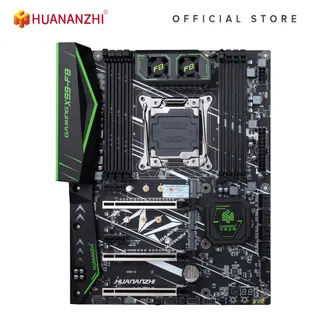

Rectangular green ATX motherboard with silver CPU socket and multiple expansion slots

HUANANZHI

HUANANZHI X99-F8 Intel motherboard LGA2011-3 ATX

SKU CH-1J2R-SV3FF

ATX board for LGA2011-3 Xeon CPUs with eight DDR4 slots, eight SATA 3.0 ports, six USB 3.0 ports and dual M.2 NVMe slots

  • CPU Socket TypeLGA 2011
  • Supports Xeon E5 processors with LGA2011-3 socket
  • Eight DDR4 slots in quad-channel up to 2400 MHz
  • Ten-layer PCB with six-phase power delivery
  • Dual M.2 NVMe plus eight SATA 3.0 ports
  • Two PCIe 3.0 x16 slots for multi-GPU setups

Socket LGA2011-3 ATX Workstation Board

The HUANANZHI X99-F8 is an ATX motherboard built around the Intel X99 chipset for LGA2011-3 Xeon E5 processors. It targets workstation and server builds that need multi-core throughput and large memory capacity. Eight DDR4 slots run in quad-channel mode and accept both non-ECC and registered ECC modules up to 32 GB each. Integrated graphics are absent, so a discrete card is required.

Ten-Layer PCB With Six-Phase Power Delivery

A 10-layer PCB and six-phase power delivery help maintain stable voltages when all cores are loaded for extended rendering or compute sessions. Two PCIe 3.0 x16 slots, one x4 slot and two x1 slots provide room for multiple GPUs or accelerator cards without bandwidth bottlenecks. Gigabit Ethernet handles steady network traffic for remote management or cluster interconnects.

Verify PSU Capacity And Case Clearance

The supplier notes the platform demands strong power and recommends at least a 500 W unit. The board measures 300 mm by 244 mm, so confirm your chassis fits standard ATX dimensions. Two M.2 NVME slots and eight SATA 3.0 ports are available for fast storage arrays. Six USB 3.0 and eight USB 2.0 headers cover front-panel and internal connectivity needs.

Points forts

  • Supports Xeon E5 processors with LGA2011-3 socket
  • Eight DDR4 slots in quad-channel up to 2400 MHz
  • Ten-layer PCB with six-phase power delivery
  • Dual M.2 NVMe plus eight SATA 3.0 ports
  • Two PCIe 3.0 x16 slots for multi-GPU setups

Caractéristiques

BrandHUANANZHI
SeriesX99 F8
ModelX99 F8
CPU Socket TypeLGA 2011

Questions sur cet article

What power supply capacity is recommended for this motherboard?

The supplier notes that the platform needs powerful power and recommends at least a 500w power supply to support it.

Which memory types and speeds does the board support?

It has 8 DDR4 slots in a 4-channel layout, accepts non-ECC, registered ECC and ECC modules, and runs at 1866, 2133 or 2400 speeds.

What expansion slots and storage interfaces are available?

Two PCI-E 3.0 16x slots, two PCI-E 1x slots, one PCI-E 4x slot, eight SATA 3.0 ports, two M.2 NVME slots and one M.2 WIFI slot.
