Black ATX mid-tower case with full-coverage micro-mesh side panel and louvered blade ventilation on top

HYTE

HYTE CS-HYTE-X50A-BB ATX Mid-Tower PC Case Black

SKU CH-Q45N-407C0 MPN CS-HYTE-X50A-BB

ATX mid-tower case with full-coverage micro-mesh intake and louvered blade exhaust for low-resistance airflow

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialABS / Steel
  • Motherboard CompatibilityATX / E-ATX / ITX / Micro ATX
  • Side PanelMesh Panel
  • Dust FiltersBottom

Option Air (Black)

Les versions barrées existent, mais ne sont pas disponibles ici.

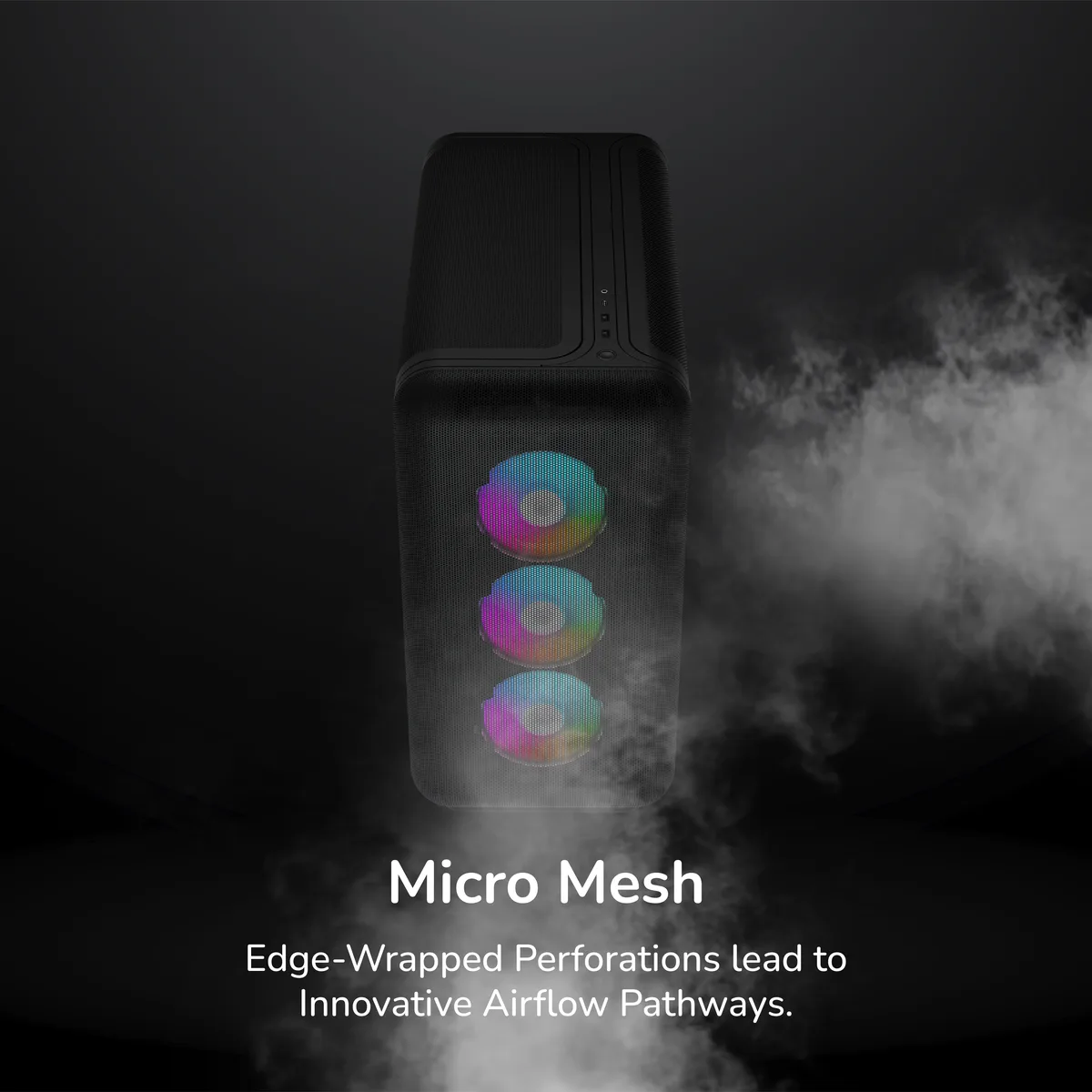

  • Full-coverage micro-mesh intake lowers resistance for cooler, quieter operation
  • Patent-pending louvered blade ventilation cuts exhaust impedance while stiffening the frame
  • Cold-floor cooling directs up to 360 mm of fresh air straight to the graphics card
  • Structural PSU canopy with tie-down points and velcro straps simplifies cable routing
  • Supports ATX, E-ATX, Micro-ATX and ITX boards with 170 mm CPU cooler clearance

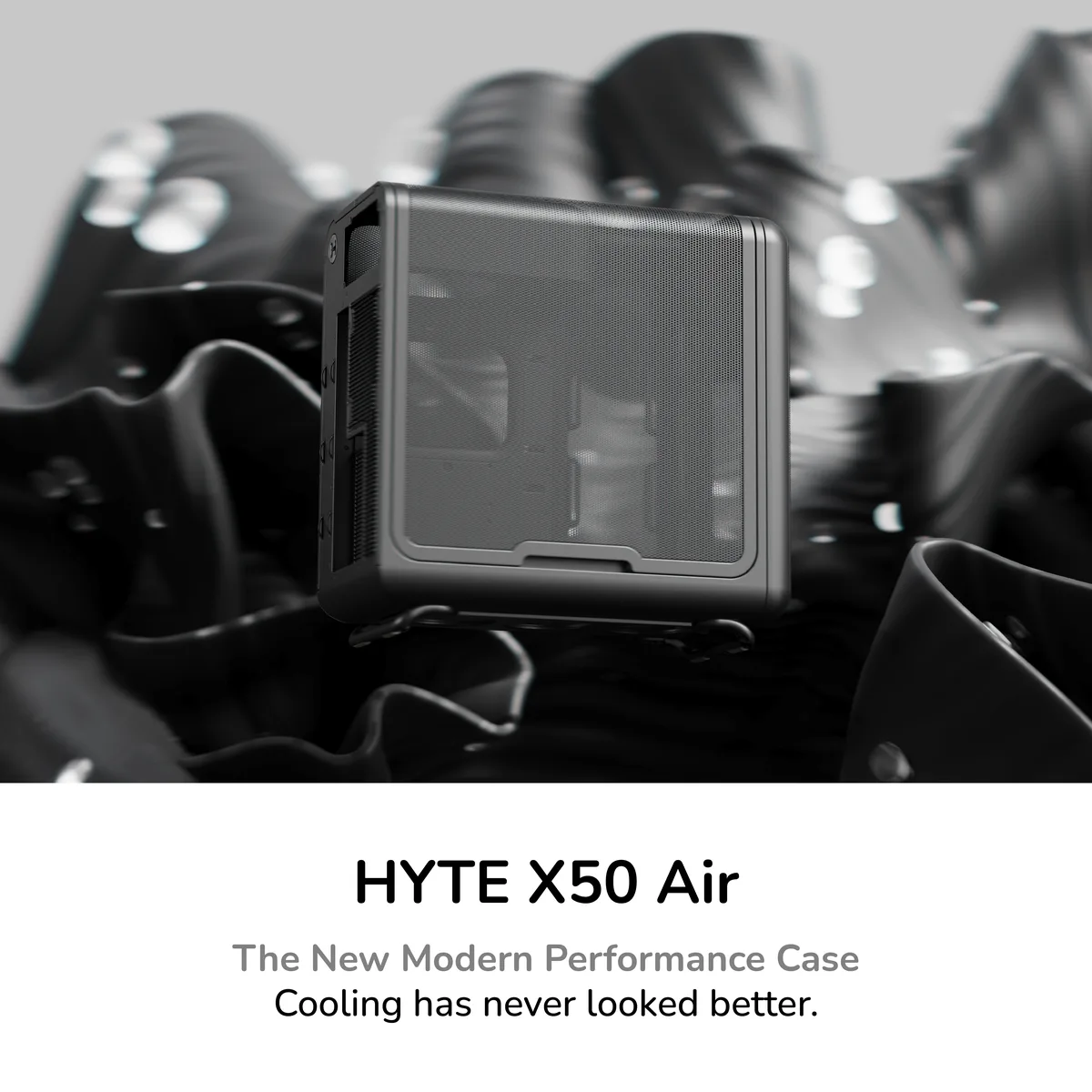

Modern airflow ATX mid-tower

The HYTE X50 Air is an ATX mid-tower case built for modern performance cooling. It supports ATX, E-ATX, Micro-ATX and ITX motherboards. The full-coverage micro-mesh side panel and louvered blade ventilation create low-resistance intake and exhaust paths. A structural PSU canopy at the top enables gravity-assisted cable routing with included velcro straps.

Thermals noise and power draw in normal use

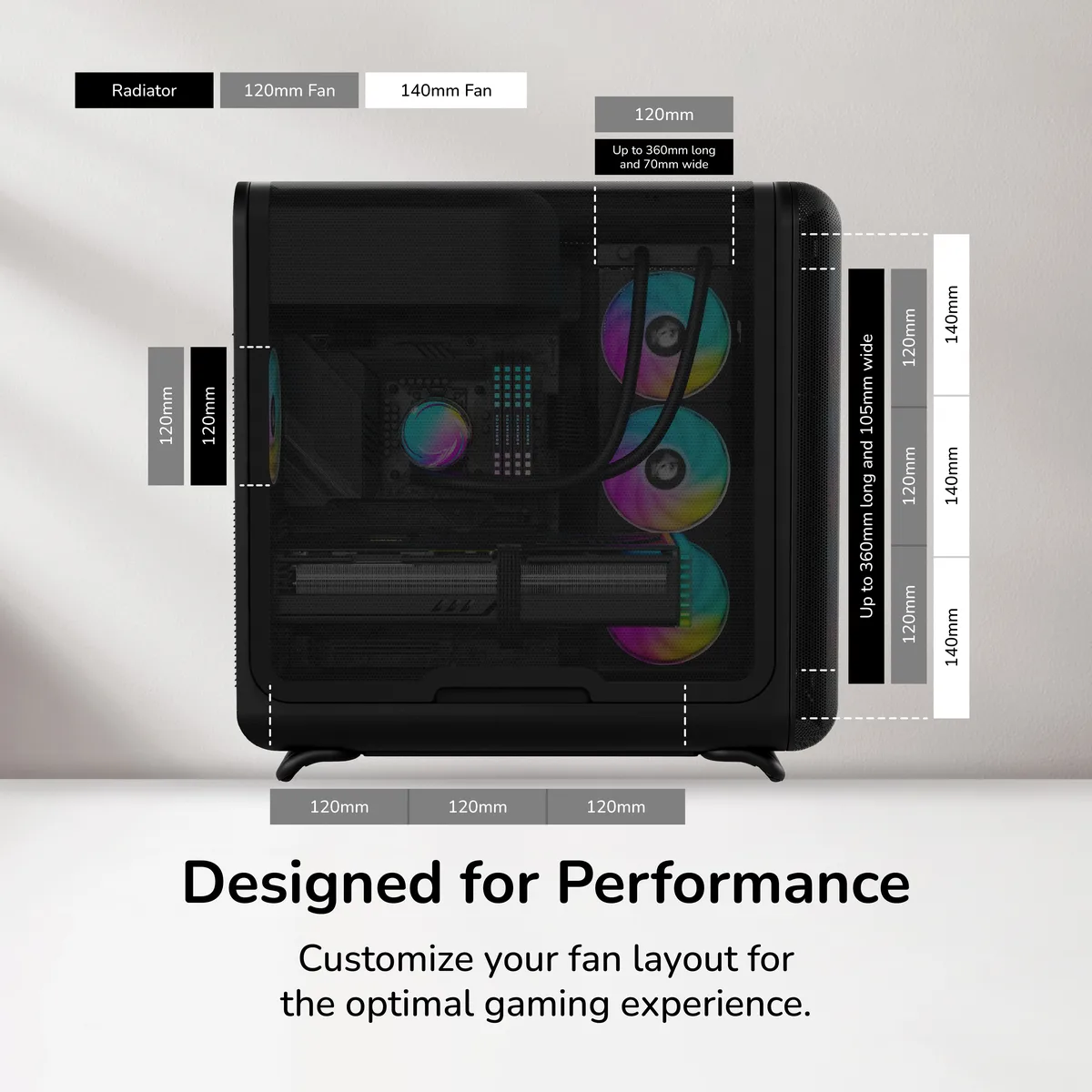

The chassis accepts up to seven 120 mm fans across front, side and rear mounts, though none are pre-installed. Cold-floor cooling directs up to 360 mm of fresh intake air straight to the graphics card. Maximum CPU cooler height is 170 mm. Dust filters on the bottom protect internal components from debris during operation.

What the bundled accessories change

The package includes velcro straps positioned both inside and outside the chassis for meticulous cable management. The structural PSU canopy provides dedicated tie-down points that keep power cables organised and out of the airflow path. No fans or drive brackets beyond the listed 3.5 inch and 2.5 inch bays are supplied.

Points forts

  • Full-coverage micro-mesh intake lowers resistance for cooler, quieter operation
  • Patent-pending louvered blade ventilation cuts exhaust impedance while stiffening the frame
  • Cold-floor cooling directs up to 360 mm of fresh air straight to the graphics card
  • Structural PSU canopy with tie-down points and velcro straps simplifies cable routing
  • Supports ATX, E-ATX, Micro-ATX and ITX boards with 170 mm CPU cooler clearance

Caractéristiques

BrandHYTE
ModelCS-HYTE-X50A-BB
TypeATX Mid Tower
ColorBlack
Case MaterialABS / Steel
Motherboard CompatibilityATX / E-ATX / ITX / Micro ATX
Side PanelMesh Panel
Dust FiltersBottom
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots7
Fan OptionsFront - 3 x 120mm / Rear - 1 x 120mm / Side - 3 x 120mm
Pre-installed FansNo Fan Installed
Max CPU Cooler Height170 mm
Poids d’expédition12.32 kg
Dimensions du colis599 × 597 × 343 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the side mesh panel and what step do builders often miss?

The side panel uses full-coverage micro-mesh that lifts off after removing the rear thumbscrews; the step most miss is re-seating the panel flush so the louvered blade ventilation aligns with the exhaust path.

What maintenance will the dust filters need later?

Only a bottom dust filter is fitted; pull it out through the front, rinse or vacuum the mesh, dry it fully, then slide it back to keep the low-resistance intake clear.

What thermal limit appears first when the GPU runs sustained loads?

The CPU cooler height limit of 170 mm caps the tower cooler you can fit, so the processor temperature ceiling arrives before the 360 mm side intake can be fully utilised.
