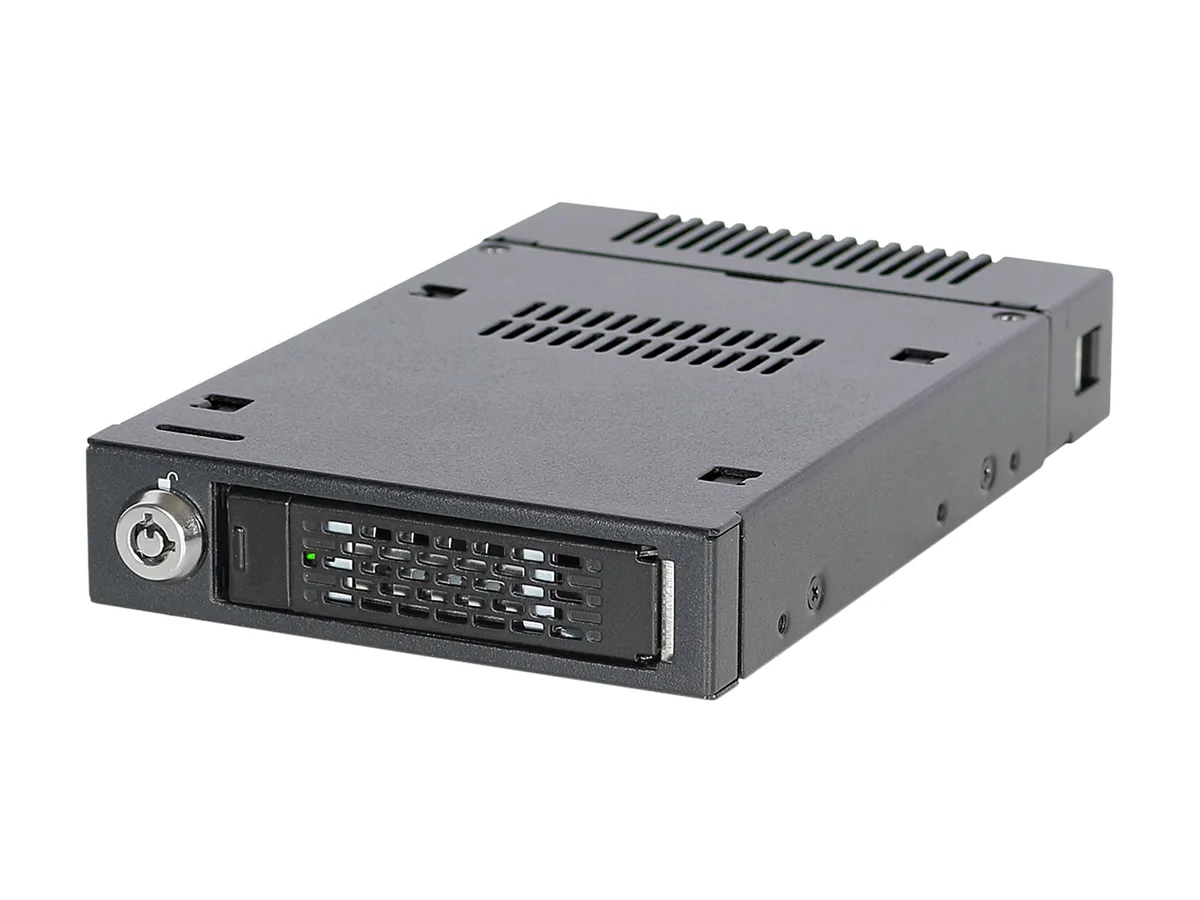

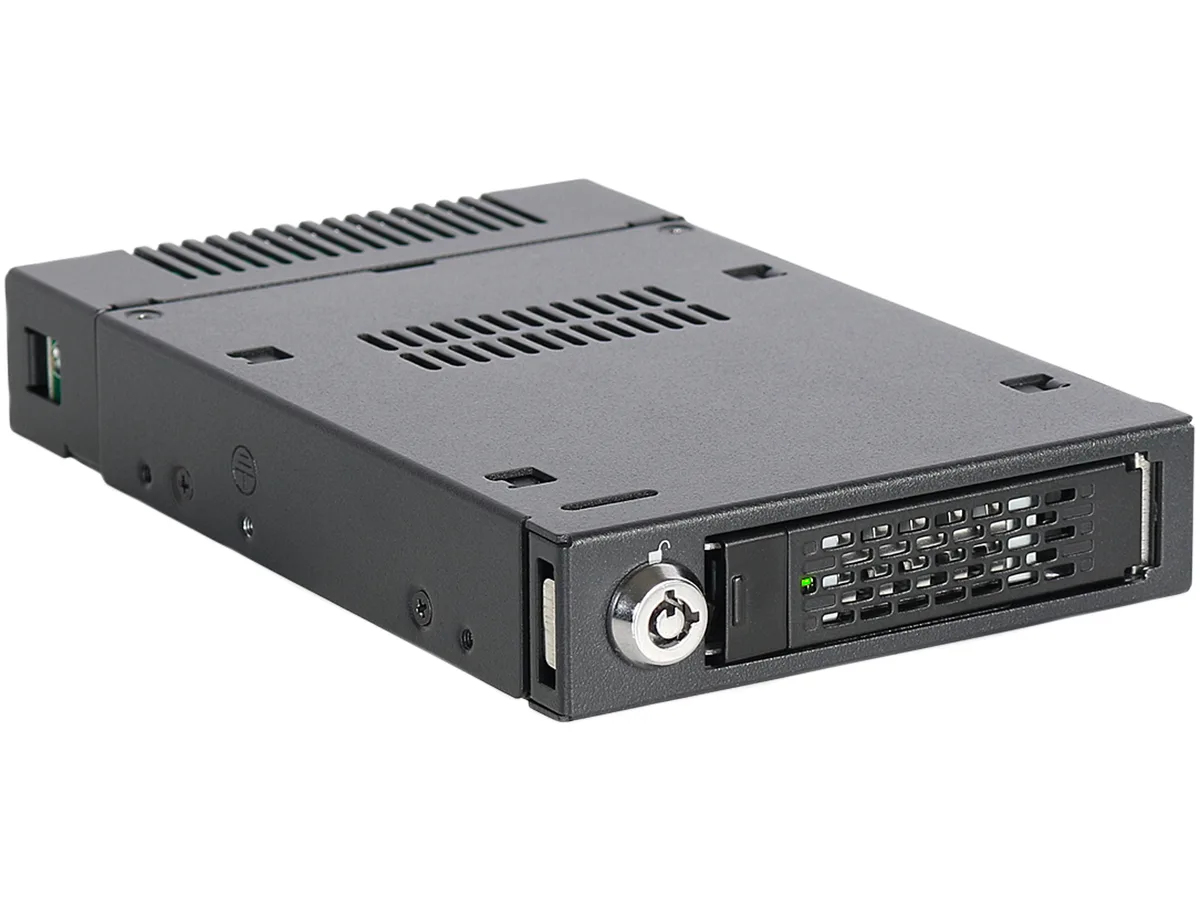

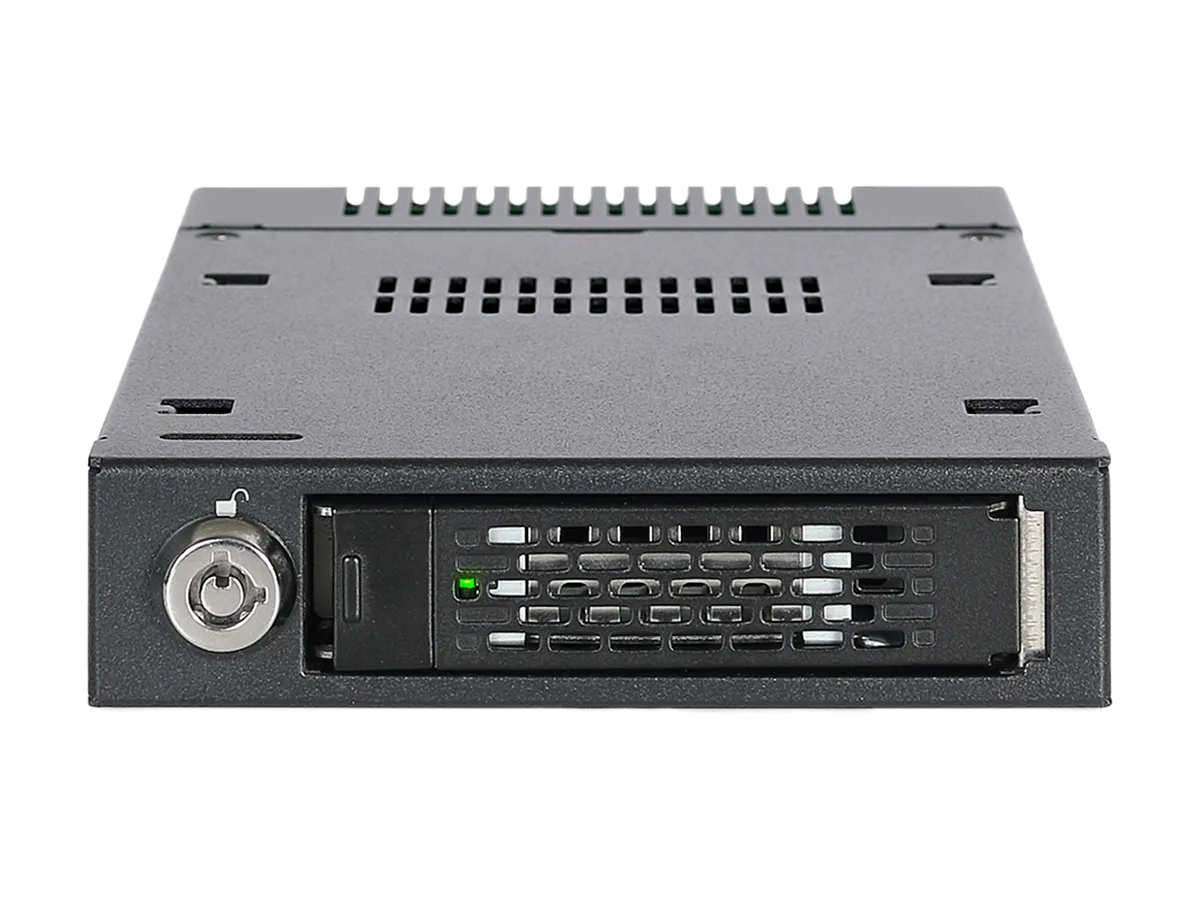

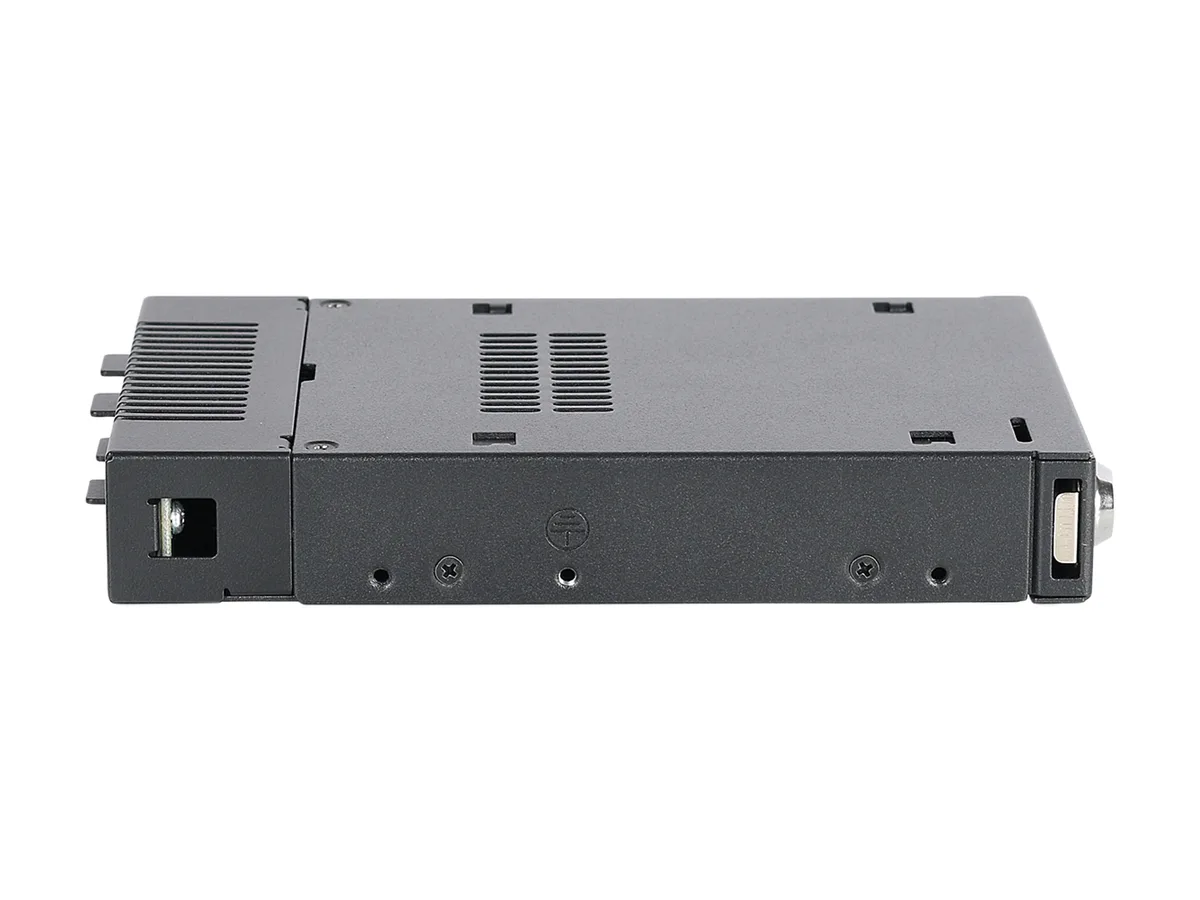

Black metal mobile rack for one M.2 NVMe SSD, fits 3.5 inch bay with U.2 connector

ICY DOCK

ICY DOCK MB601M2K-1B M.2 NVMe SSD mobile rack 3.5" bay U.2 ssd accessory

SKU CH-7CBV-JRV2P MPN MB601M2K-1B

Mobile rack converts a 3.5" bay to accept one M.2 NVMe SSD up to 110mm via U.2 connection at 32 Gbps

  • ColorBlack
  • Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack InterfaceHost Interface: 1 x U.2 Connector (SFF-8639) Drive Type: 1 x
  • Protection CaseSingle Drive
  • Compatible Products1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280/2211
  • SpecificationsSupport Drive Size: 1 x M / B + M key M.2 PCIe NVMe SSD 2230
  • Supports M.2 NVMe SSDs from 30 mm to 110 mm

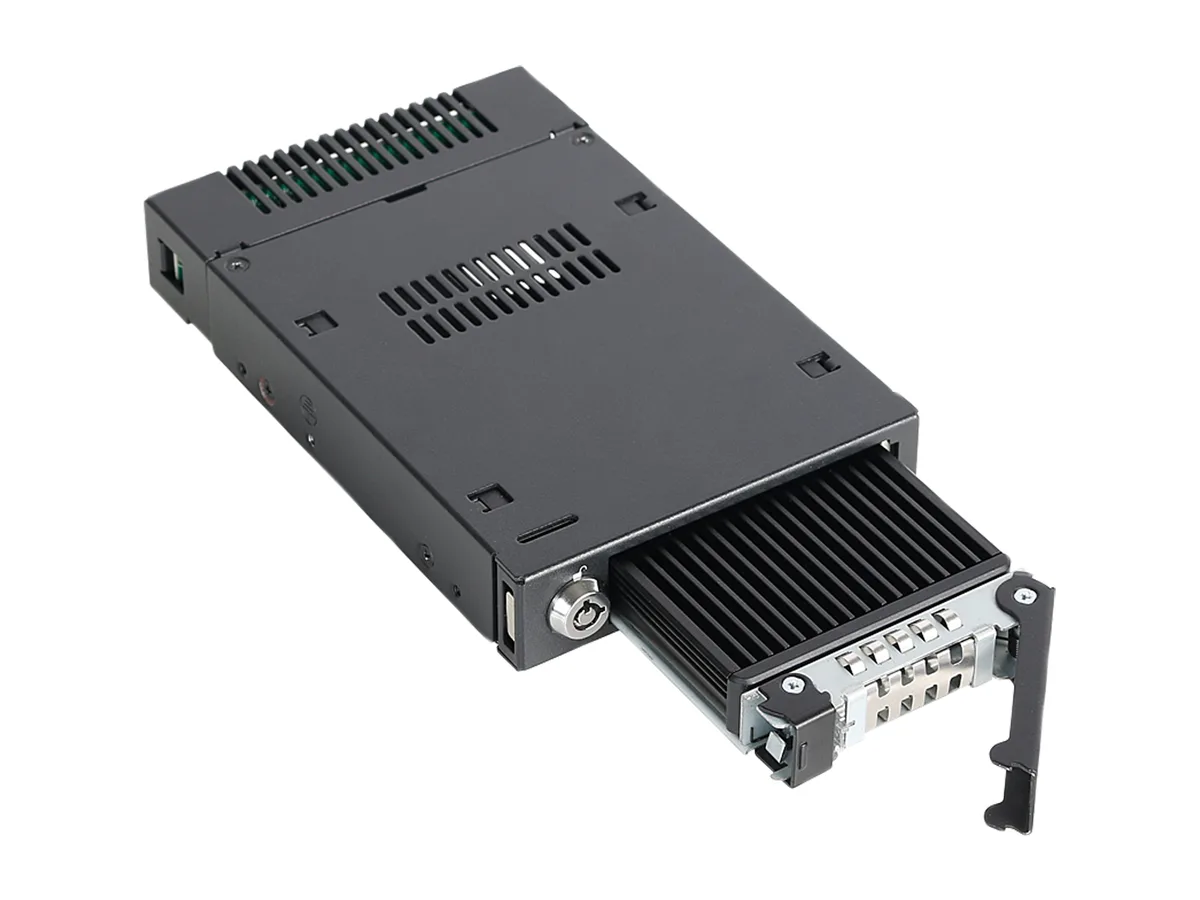

  • Adjustable locker secures every drive length without movement
  • Fits any standard external 3.5" device or floppy bay
  • U.2 connection delivers full 32 Gbps NVMe bandwidth
  • Full-metal enclosure with integrated heatsink enables passive cooling

M.2 NVMe mobile rack for 3.5" bay

The ICY DOCK ToughArmor MB601M2K-1B installs a single M.2 PCIe NVMe SSD into any standard external 3.5" device bay. It accepts M and B+M key drives in 2230, 2242, 2260, 2280 and 22110 lengths. A full-metal enclosure provides passive cooling and meets flammability requirements.

Builders adding fast NVMe storage to a 3.5" slot

This unit suits builders who want to use an M.2 NVMe drive where only a 3.5" bay is available. The adjustable locker secures every supported length without extra brackets. Buyers who need to install more than one drive or who require a different host interface should look at other solutions.

U.2 host connection at 32 Gbps

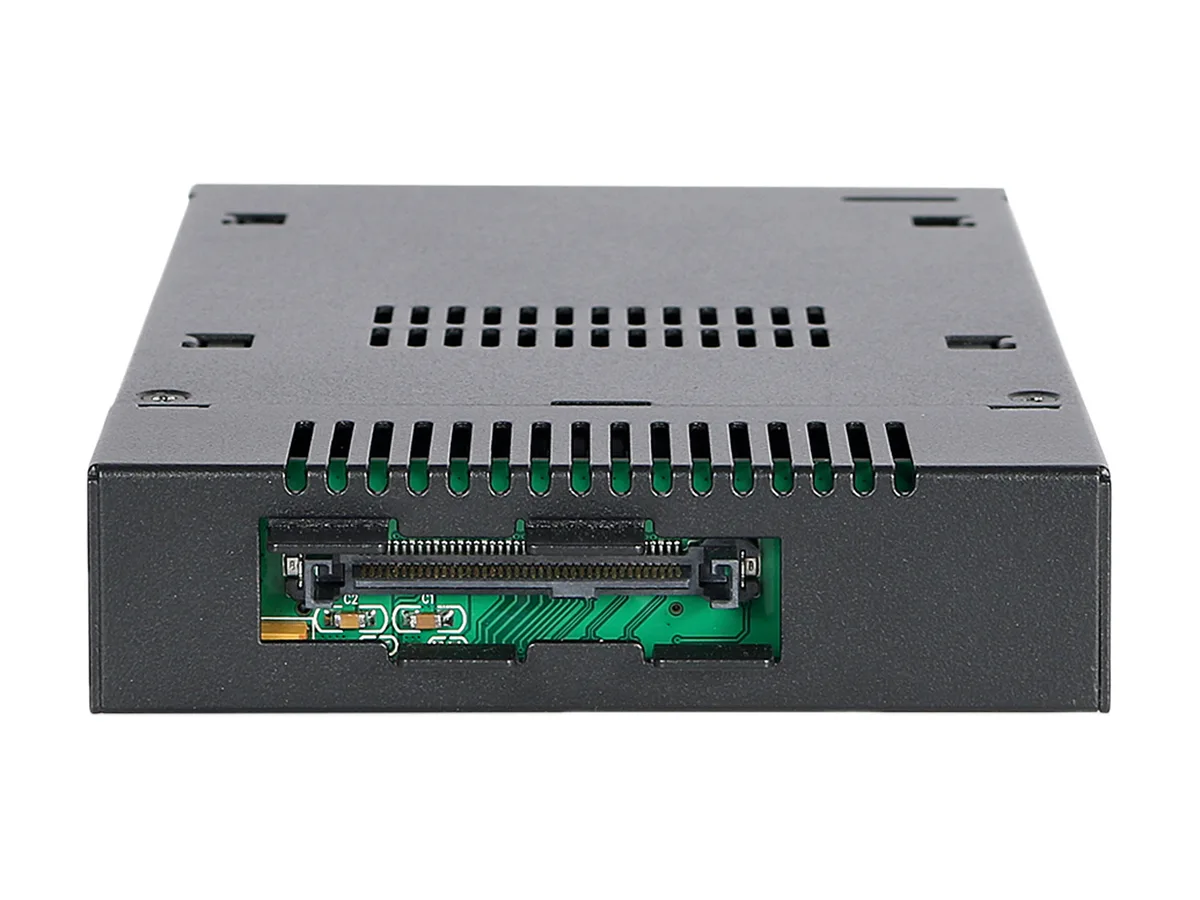

The rack connects to the system through a single U.2 connector (SFF-8639) and delivers the full NVMe bandwidth specification of 32 Gbps. An NVMe-capable host is required for operation. Two segment keys add physical security for the installed drive.

Points forts

  • Supports M.2 NVMe SSDs from 30 mm to 110 mm
  • Adjustable locker secures every drive length without movement
  • Fits any standard external 3.5" device or floppy bay
  • U.2 connection delivers full 32 Gbps NVMe bandwidth
  • Full-metal enclosure with integrated heatsink enables passive cooling

Caractéristiques

BrandICY DOCK
ModelToughArmor MB601M2K-1B
ColorBlack
Part NumberMB601M2K-1B
Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
Mobile Rack InterfaceHost Interface: 1 x U.2 Connector (SFF-8639)
Drive Type: 1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
Protection CaseSingle Drive
Compatible Products1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
SpecificationsSupport Drive Size: 1 x M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
Compatible Drive Type: NVMe M.2
Number of Drives: 1
Drive Bay: 1 x external 3.5" drive bay
Host Interface: 1 x U.2 connector (SFF-8639)
Power Input: Via U.2 (SFF-8639)
Transfer Rate: Up to 32Gbps
Support HDD Capacity: No Limitation
Drive Cooling: Metal heat dispersion with passive cooling
Structure / Material: Full Metal
Support Hot-Swap: Yes
Drive Security: 2 segment key lock
Product Dimension (L x W x H): 168.7 x 101.2 x 25.4mm
Product Net Weight: 546g
Drive Activity LED Indication: Drive power: solid
FeaturesFits 1x M.2 NVMe SSD of all lengths, 30mm 2230, 42mm 2242, 60mm 2260, 80mm 2280, and 110mm 22110
Adjustable drive locker holds all length drives securely
Installs into any standard external 3.5" device bay or floppy bay
Uses a U.2 port (SFF-8639) to connect, requires NVMe host
Supports the full NVMe bandwidth specification of 32 Gbps
Ruggedized full-metal enclosure meeting flammability requirements
Integrated heat sink and ample ventilation for excellent passive cooling
2-segment key lock for additional physical security
Eagle-hook tray latch securely holds the tray inside the enclos
Package Contents1 - Device
1 - User manual
10 - Screw
2 - Key
Poids d’expédition0.60 kg
Dimensions du colis197 × 114 × 38 mm

Questions sur cet article

What does the 32 Gbps NVMe bandwidth mean once the drive is installed in a system?

The U.2 connector passes the full NVMe bandwidth of 32 Gbps to the host, so the M.2 SSD can run at its rated PCIe speed without bottleneck from the rack.

What interface standard does the rack use and what does it cap in practice?

It uses a U.2 connector (SFF-8639) that requires an NVMe-capable host and delivers up to 32 Gbps of NVMe bandwidth.

What physical space and mounting does this mobile rack need to fit?

It installs into any standard external 3.5" device bay or floppy bay and holds one M.2 NVMe SSD from 2230 to 22110 length with an adjustable locker.
