Black 5.25 inch DuoSwap caddy holding one 2.5 and one 3.5 SATA drive

ICY DOCK

ICY DOCK MB971SP-B 5.25" DuoSwap 2.5" 3.5" SATA SSD accessory

SKU CH-DY9P-GNGF3 MPN MB971SP-B

Fits one 2.5" and one 3.5" SATA drive into a single 5.25" bay with tool-less hot-swap trays, individual LEDs and power buttons

  • ColorBlack
  • Conversion Tray1 x 3.5" Drive to 5.25" Bay
  • Mobile Rack Drives Support2.5" & 3.5" Drives to 1 x 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III
  • Protection CaseSingle Drive
  • SpecificationsHost Connection: 7 pin SATA port x 2 Device Space: 5.25" hal
  • Tool-less hot-swap lets you exchange drives in seconds
  • Fits one 2.5" and one 3.5" SATA drive in a single 5.25" bay
  • Supports SATA I/II/III at up to 6 Gbit/sec transfer
  • Individual LED indicators and power buttons for each drive slot
  • Two-part anti-dust cover protects internals even with small 2.5" drives

5.25" DuoSwap SATA drive caddy

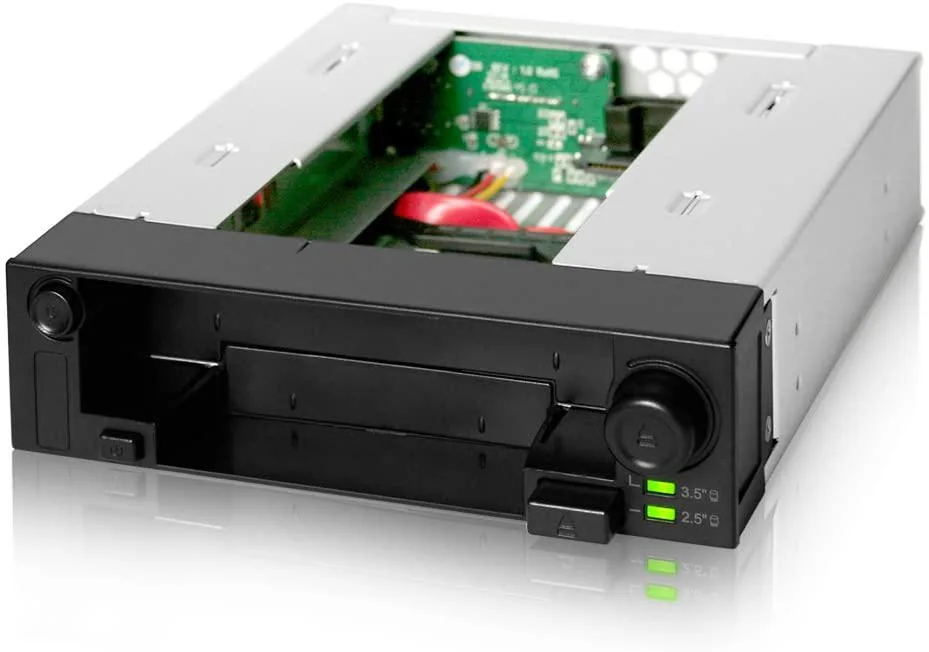

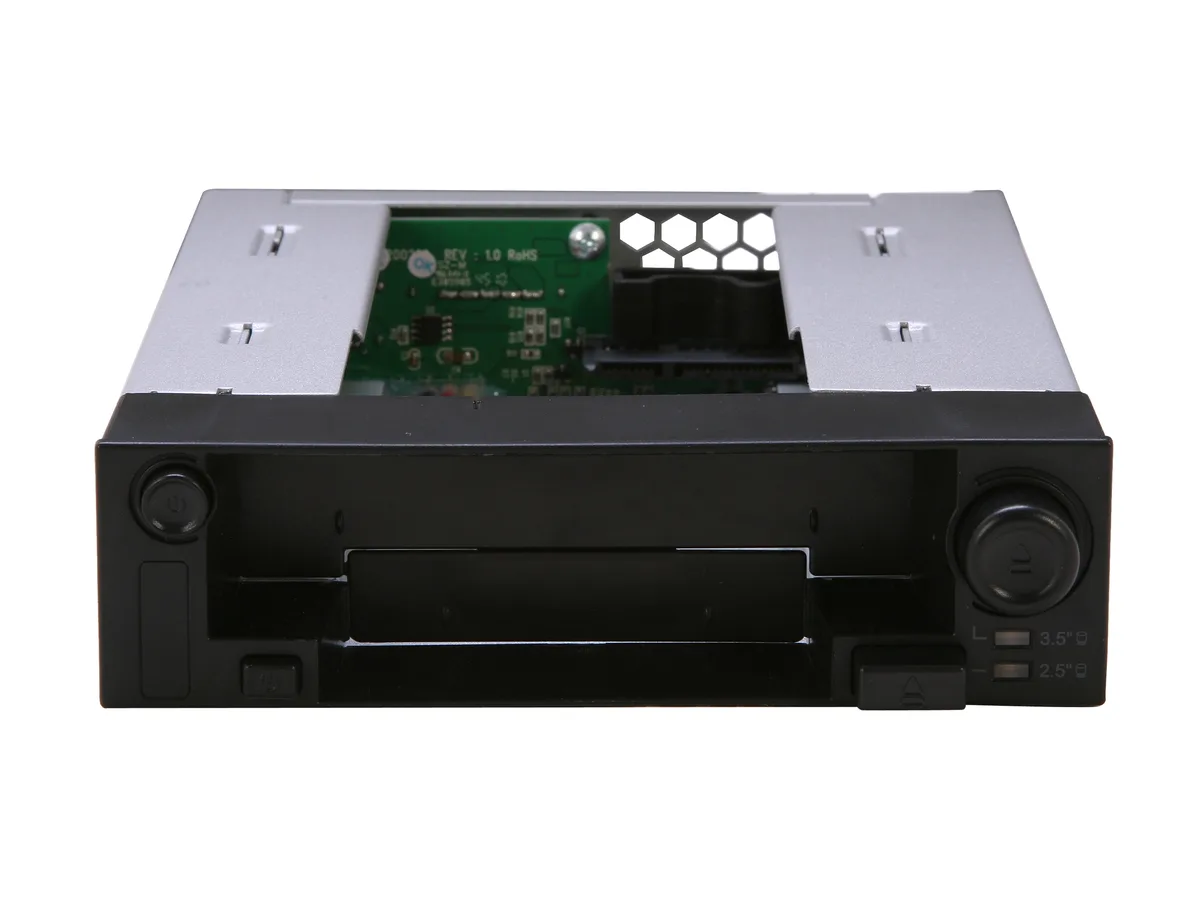

The ICY DOCK MB971SP-B mounts one 2.5" SATA SSD or HDD and one 3.5" SATA HDD inside a single 5.25" half-height bay. Tool-less trays and individual eject buttons let you hot-swap either drive in seconds without opening the case. Two SATA 7-pin host ports deliver up to 6 Gbit/s transfer rates, limited only by the installed drive. A two-part anti-dust cover seals the unused slot when only the smaller drive is fitted.

Suits labs and duplication rigs needing quick SATA

Technicians who frequently rotate 2.5" or 3.5" SATA drives for imaging, recovery or testing will benefit from the front-access design and per-drive power LEDs. Builders with no free 5.25" bay, or who require support for drives taller than 12.5 mm, must choose a different mounting solution. The caddy does not accommodate 2.5" drives thicker than 9.5 mm when the 3.5" bay is occupied.

Single 5.25" bay hosts two SATA drives

The defining constraint is the shared bay: one 2.5" drive up to 12.5 mm and one 3.5" drive occupy the same front panel, so maximum thickness for the smaller drive drops to 9.5 mm when both bays are populated. Verify your case has an available 5.25" half-height opening and two spare SATA data ports before purchase.

Points forts

  • Tool-less hot-swap lets you exchange drives in seconds
  • Fits one 2.5" and one 3.5" SATA drive in a single 5.25" bay
  • Supports SATA I/II/III at up to 6 Gbit/sec transfer
  • Individual LED indicators and power buttons for each drive slot
  • Two-part anti-dust cover protects internals even with small 2.5" drives

Caractéristiques

BrandICY DOCK
ModelMB971SP-B
ColorBlack
Part Number1 x 2.5" SSD/HDD + 3.5" HDD
Conversion Tray1 x 3.5" Drive to 5.25" Bay
Mobile Rack Drives Support2.5" & 3.5" Drives to 1 x 5.25" Bay
Mobile Rack InterfaceSATA I/II/III
Protection CaseSingle Drive

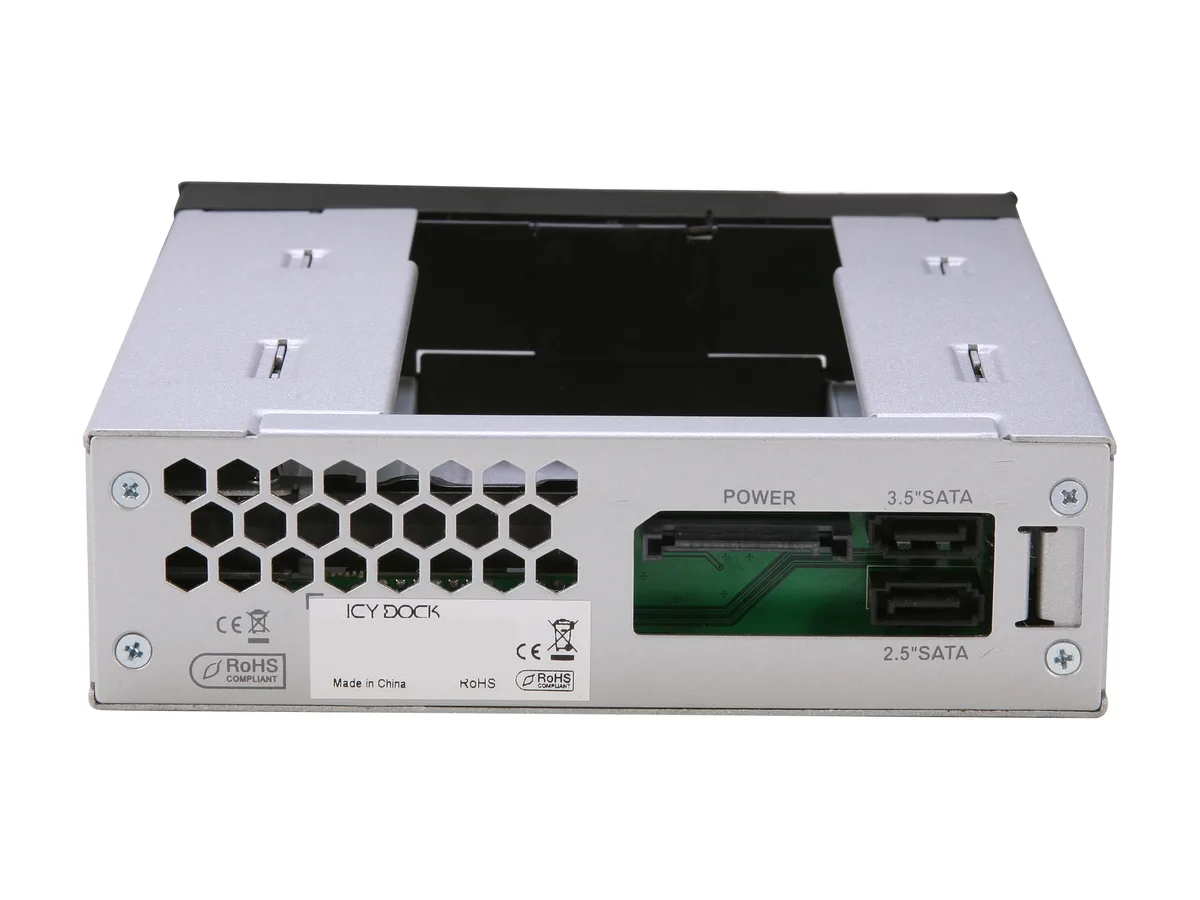

SpecificationsHost Connection: 7 pin SATA port x 2
Device Space: 5.25" half height device bay
Drive Fit:
2.5" SATA HDD or SSD x 1
3.5" SATA HDD or SSD x 1
Transfer Rate: Up to 6 Gbit / sec. (depending on hard drive speed)
Insert& Extract connection Via: Direct SATA hard drive connection
Structure: Metal body w/ partial plastic
Power Connector: 15 pin SATA Power
Drive Cooling: Metal heat dispersion
Power Indicator: Solid Green LED
HDD Access Indicator: Flashing Amber LED
Dimension (L x W x H): 147.8 42 178.2 mm
Weight: 621g
FeaturesConnects up to one 2.5" & 3.5" SATA HDD in one 5.25" bay for a space saving setup.
Supports a single 2.5" HDD / SSD in 12.5mm height. (Up to 9.5 mm while the 3.5" bay is in use)
Fast and simple tool-less drive installation.
Able to run 2.5" & 3.5" SATA hard drive or SSD Simultaneously.
Individual SATA 6 Gbps connection for each hard drive or SSD.
2 part anti-dust cover protects system internals even when a small 2.5" SATA drive is used.
Anti vibration kit for the 3.5" drive bay to help reduce movement.
Eagle-Hook mechanism design added extra security to the 3.5" hard drive.
Individua
Poids d’expédition0.70 kg
Dimensions du colis196 × 160 × 56 mm

Questions sur cet article

How can I confirm the MB971SP-B is functioning correctly after installation?

The individual LED indicators for each drive slot will illuminate when a 2.5" or 3.5" SATA drive is detected and powered. Use the dedicated power button to spin drives up or down; the eject button releases the tray for hot-swap verification.

What ships with the MB971SP-B and what must I provide?

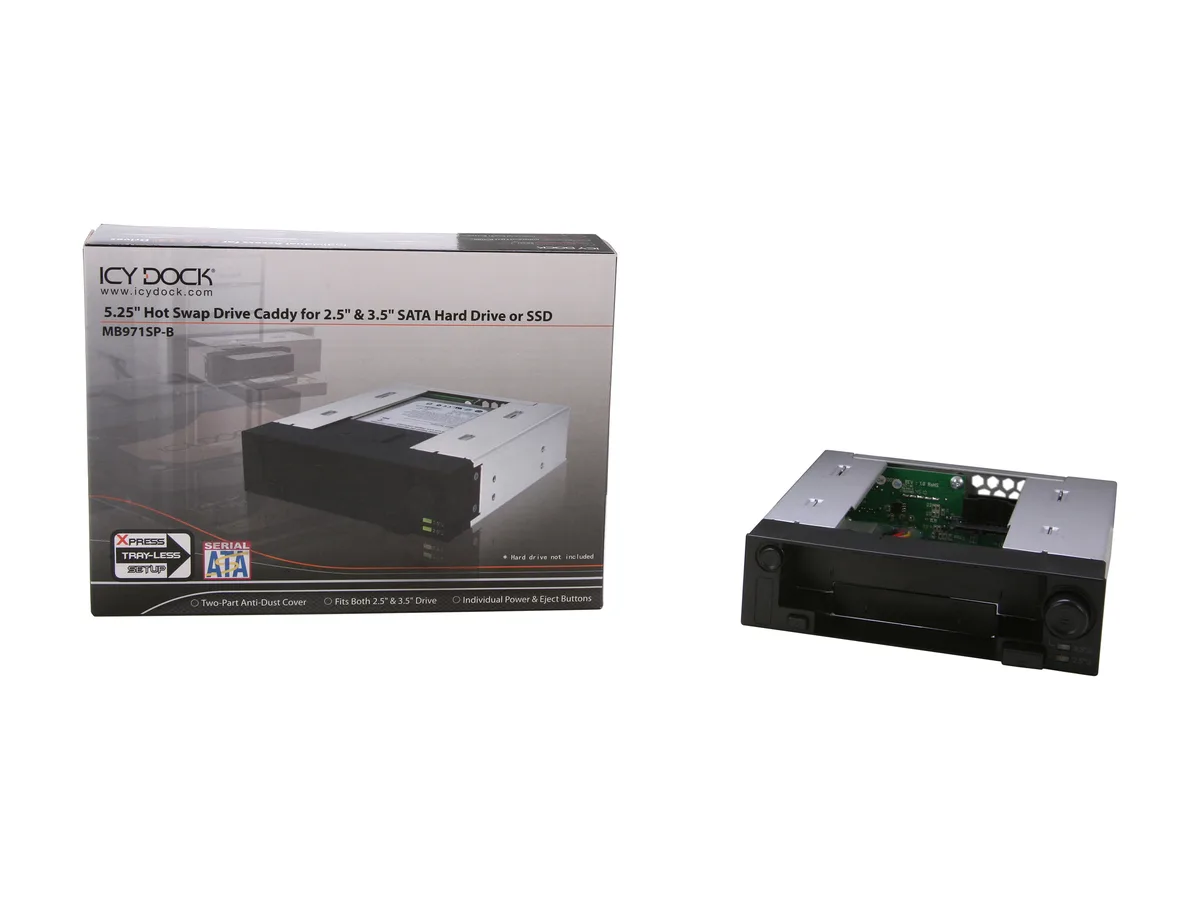

The unit includes the DuoSwap enclosure with a 3.5"-to-5.25" conversion tray and anti-dust cover. You must supply your own 2.5" SATA SSD/HDD (up to 12.5 mm) and 3.5" SATA HDD/SSD, plus two SATA data cables and SATA power from your PSU.

Which drive heights fit the two bays simultaneously?

A 2.5" drive up to 12.5 mm fits alone, but when the 3.5" bay is occupied the 2.5" slot is limited to 9.5 mm height. The 3.5" bay accepts standard-height 3.5" SATA drives.
