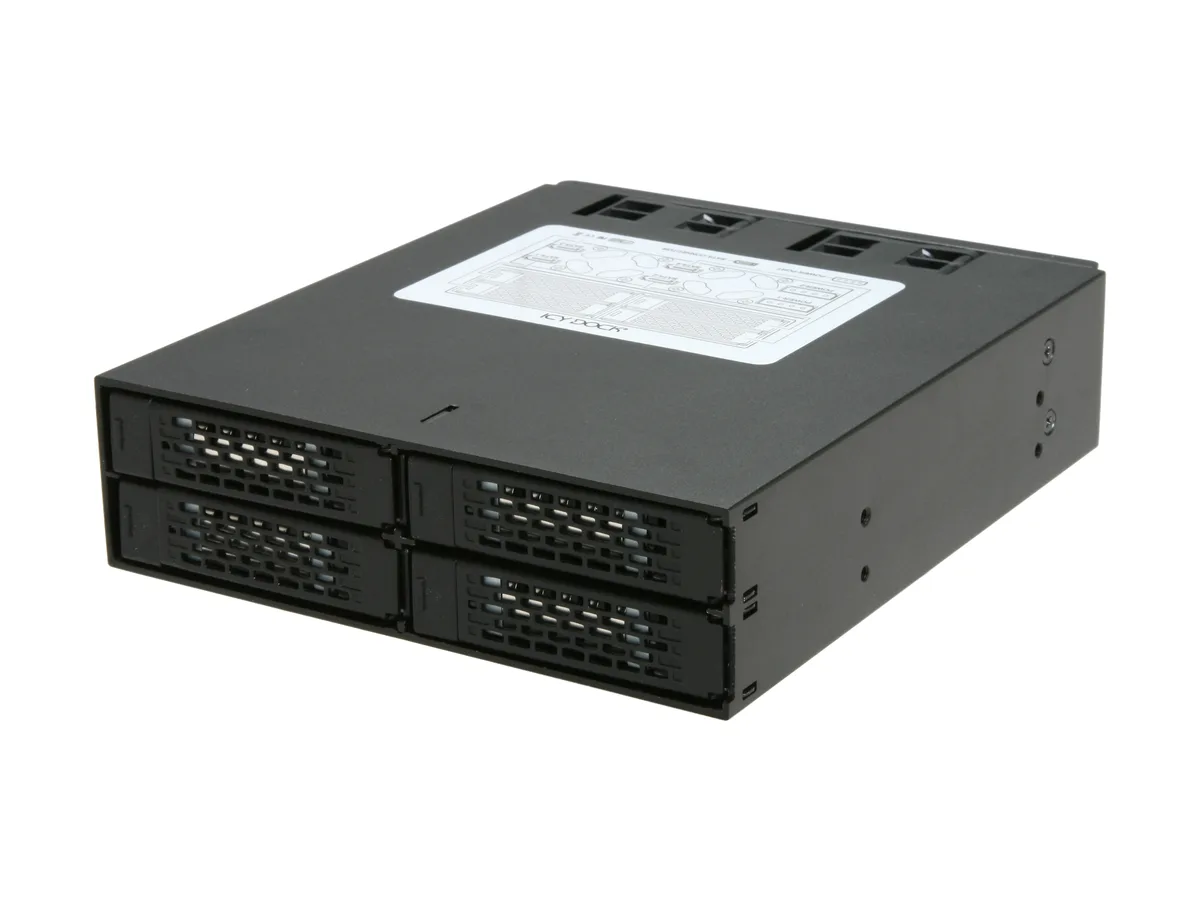

Black metal cage holding four 2.5 inch drive trays in one 5.25 inch bay with front LEDs

ICY DOCK

ICY DOCK MB994SP-4S 4 x 2.5 SATA SAS 5.25 hdd accessory

SKU CH-SADY-1FZ94 MPN MB994SP-4S

Fits four 2.5" SAS/SATA drives into one 5.25" bay with 6 Gbps support and front LEDs

  • ColorBlack
  • Conversion Tray4 x 2.5" Drive to 5.25" Bay
  • Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • SpecificationsColor: Matt Black Host Interface: 7 pin SATA x 4 Drive Fit:

Model ToughArmors 4BAY-SAS

  • ToughArmors 4BAY-SAS
  • ToughArmors 1BAY-SAS
  • ToughArmors 1BAY
  • ToughArmors 2BAY
  • ToughArmors 2BAY-RAID
  • ToughArmors 3BAY
  • ToughArmors 1BAY+LOCK
  • ToughArmors 2BAY+LOCK
  • ToughArmors Slim ODD
  • ToughArmors 4BAY - Lite
  • ToughArmors Slim ODD+LOCK
  • ToughArmors Slim ODD MinSATA
Voir les 4 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

Option 1 x 5.25in

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Fits four 2.5" drives in one 5.25" bay
  • SATA 6 Gbps and SAS 2.0 interface support
  • Heavy-duty full-metal construction for durability
  • Front status LED per drive for quick monitoring
  • Dual 40 mm cooling fans maintain optimal temperatures

ToughArmor 4-Drive 5.25" Bay Converter

The ICY DOCK MB994SP-4S fits four 2.5" SATA or SAS hard drives and solid-state drives into a single 5.25" front bay. Its full-metal chassis and included dual 40 mm fans provide structural rigidity and active cooling for sustained workloads. Each tray features an individual status LED for immediate drive-health visibility.

Suited for Multi-Drive Arrays Not Single-Drive

This unit targets builders who need four hot-swappable bays in one 5.25" slot such as media servers medical systems or all-in-one workstations. Buyers who only need to install one 2.5" drive or who lack a spare 5.25" bay should consider simpler bracket solutions. The tray height limit of 15 mm also excludes thicker enterprise drives.

Dual-Protocol SATA and SAS 6 Gbps Backplane

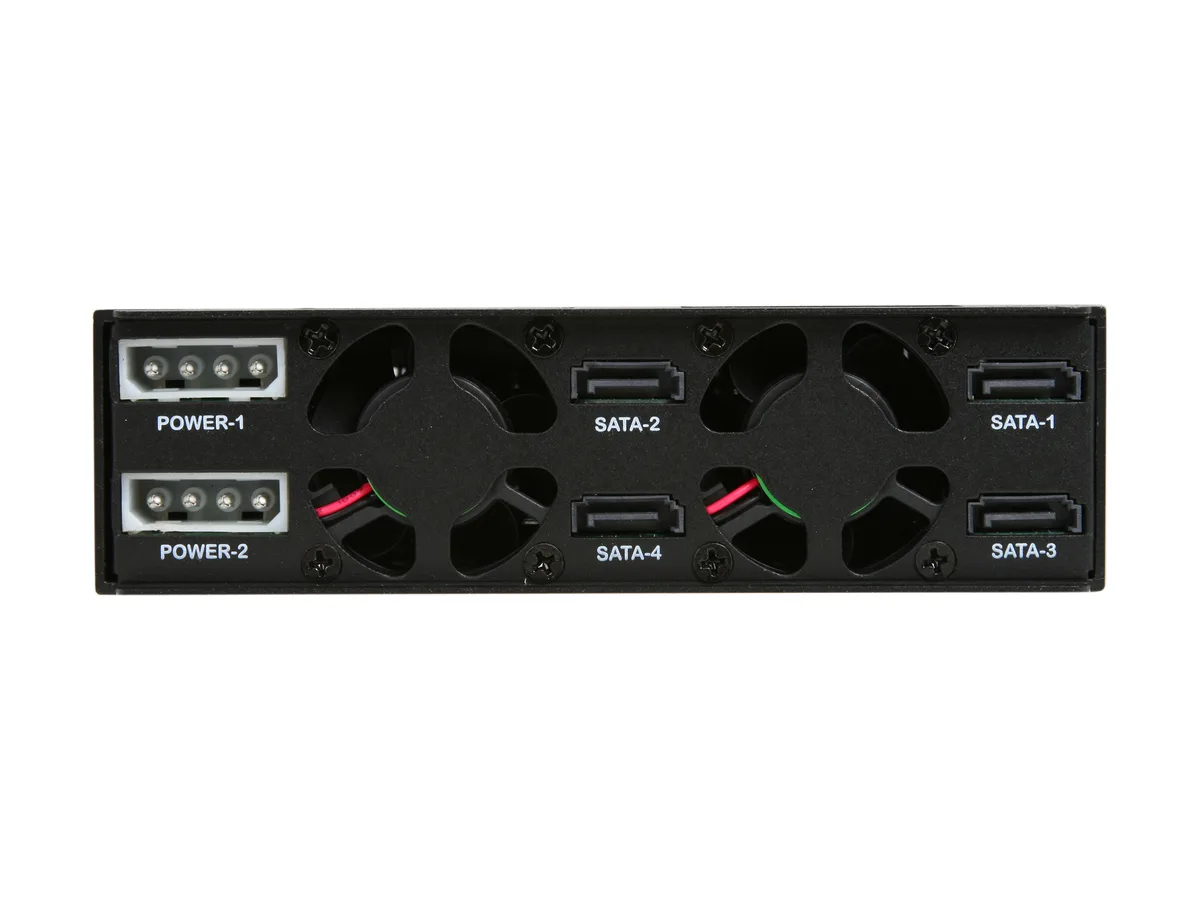

The backplane carries four independent 7-pin SATA connectors and supports both SATA 6 Gbps and SAS 2.0 signalling including dual-channel SAS operation. Drive throughput scales with the installed device up to 6 Gbps per port. Compatibility is limited to drives using the SATA or SAS interface.

Points forts

  • Fits four 2.5" drives in one 5.25" bay
  • SATA 6 Gbps and SAS 2.0 interface support
  • Heavy-duty full-metal construction for durability
  • Front status LED per drive for quick monitoring
  • Dual 40 mm cooling fans maintain optimal temperatures

Caractéristiques

BrandICY DOCK
ModelMB994SP-4S
ColorBlack
Conversion Tray4 x 2.5" Drive to 5.25" Bay
Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
SpecificationsColor: Matt Black
Host Interface: 7 pin SATA x 4
Drive Fit: 2.5" SAS or SATA I /II/III HDD / SSD x 4
Drive Bay: 5.25" Bay x 1
Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed)
Insert& Extract conection Via: 15 pin direct hard drive connection
Structure: SECC
Drive Cooling: 40mm rear cooling fan x 2 & metal heat dispersion
LED Indication: Device Power & Drive Activity
LED Display Color: Green - Device Power ; Amber - Drive Activity
Dimension (L x W x H): 6.70" x 5.75" x 1.63"
Weight: 1.77 lbs.
FeaturesFits 4 x 2.5" SATA I / II / III and SAS HDD/SSD.
Support SATA 6Gbps.
Accommodates Drives with up to 15mm Height.
*Fits 4 Drives into a Single 5.25" Device Bay.
Status LED on Front for Each Drive.
Full Metal EZ Slide Mini Tray System with Full Cage Design.
Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
Front, Rear, Top, and Bottom Ventilation Slots.
Dual 40mm Cooling Fans.
Heavy Duty Full Metal Construction.
Top Cover for the Tray Adds Extra Drive Protection.
Poids d’expédition0.89 kg
Dimensions du colis193 × 155 × 58 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the MB994SP-4S into a 5.25" bay and connect the four drives?

Slide the unit into a single 5.25" device bay, secure it with screws, insert up to four 2.5" SAS or SATA drives into the EZ Slide Mini Trays, then connect each drive to the backplane via the four 7-pin SATA host cables.

What maintenance will the MB994SP-4S require over time?

The dual 40mm cooling fans should be cleaned periodically to maintain airflow; the full metal trays and backplane have no user-serviceable parts, so drive swaps are the only routine action.

What limit appears first during sustained heavy use of the MB994SP-4S?

Each drive is capped at the SATA 6Gb/s interface speed, so sustained throughput cannot exceed that ceiling regardless of the individual SSD or HDD performance.
