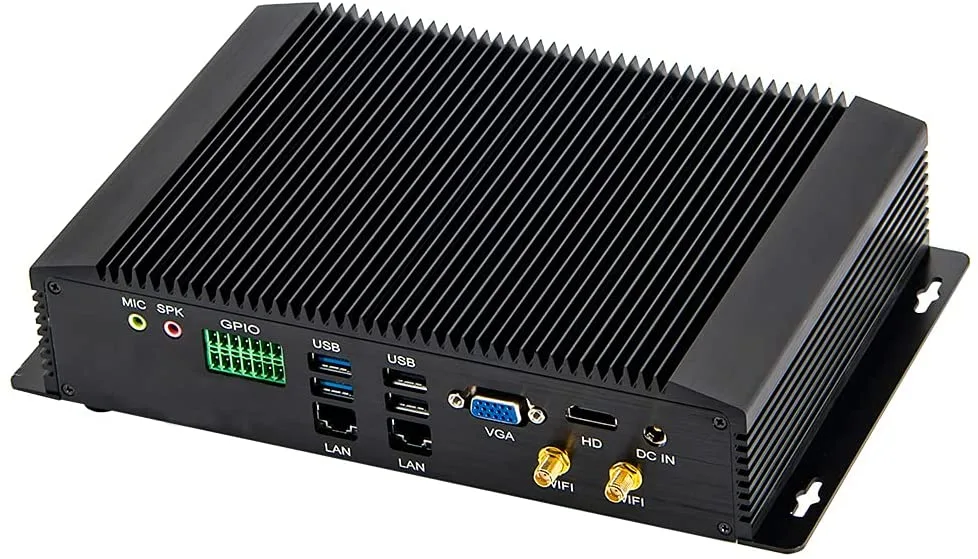

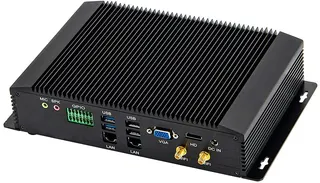

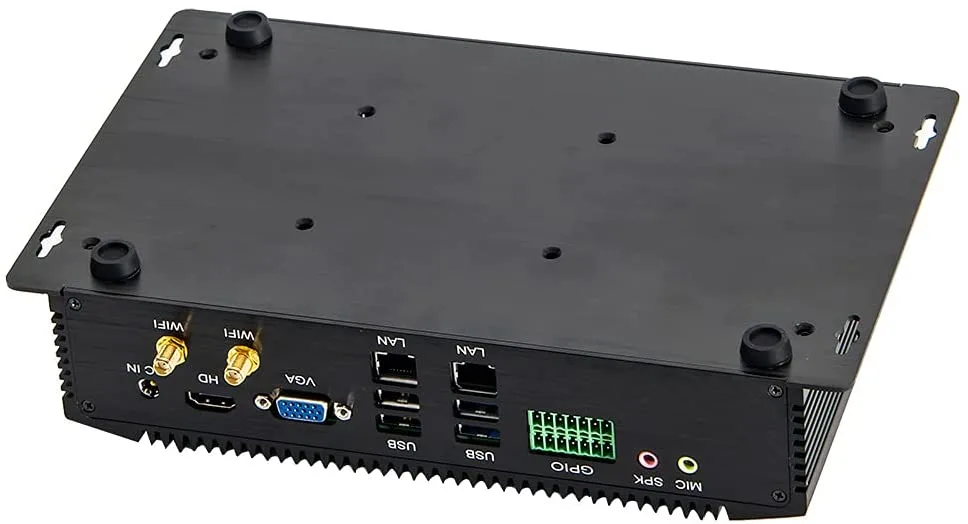

Small black aluminum mini PC with mounting ears

Inctel

Inctel I26-i5 4200U-4G128G industrial mini PC 4GB 128GB 6COM

SKU CH-8YN3-FF9XC

Fanless mini PC with Intel Core i5-4200U, 4 GB DDR3L, 128 GB mSATA SSD, six serial ports, dual LAN, HDMI, VGA, 8-bit GPIO and dual-band Wi-Fi

  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • CPU TypeIntel Core i5 4th Gen
  • CPU Name1.60GHz
  • GPU/VGA TypeIntel HD Graphics 4400

CPU Type Intel Core i5 4th Gen

CPU Name 1.60GHz

Memory Capacity · SSD 4GB DDR3

  • Fanless design enables silent 24/7 operation with 15 W TDP
  • Six serial ports support RS232 RS422 RS485 switching in BIOS
  • Dual Intel LAN plus Wi-Fi 802.11ac for reliable industrial networking
  • 8-bit GPIO and watchdog timer suit automation and control systems
  • Expandable storage via mSATA and 2.5 inch SATA slots

Industrial mini PC with six serial ports

The Inctel I26-i5 4200U-4G128G is a fanless mini desktop built around an Intel Core i5-4200U processor running at 1.60 GHz with a 2.60 GHz turbo. It ships with 4 GB of DDR3L memory and a 128 GB mSATA SSD, plus a spare 2.5-inch SATA bay for additional storage. Aluminium construction and a 15 W TDP enable continuous 7×24 operation in embedded environments.

Suits automation and medical integrators needing

Six COM ports with BIOS-selectable RS232, RS422 and RS485 modes plus an 8-bit GPIO header connect directly to industrial equipment. Dual Intel I213 LAN ports, 802.11ac Wi-Fi and an onboard 4G SIM slot cover wired, wireless and cellular uplinks. Buyers who require more than 8 GB of RAM or a higher-performance CPU should look at a different platform.

4 GB DDR3L soldered SO-DIMM limits memory upgrades

The single SO-DIMM slot supports DDR3L 1333/1600 up to 8 GB total, so the shipping 4 GB module can be replaced but not supplemented. This ceiling decides whether the unit can handle your application’s working set.

Points forts

  • Fanless design enables silent 24/7 operation with 15 W TDP
  • Six serial ports support RS232 RS422 RS485 switching in BIOS
  • Dual Intel LAN plus Wi-Fi 802.11ac for reliable industrial networking
  • 8-bit GPIO and watchdog timer suit automation and control systems
  • Expandable storage via mSATA and 2.5 inch SATA slots

Caractéristiques

ModelI26-i5 4200U-4G128G
Part NumberI26-i5 4200U-4G128G
Form FactorMini PC
ColorBlack
MonitorMonitor not included
CPU TypeIntel Core i5 4th Gen
CPU Name1.60GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity4GB DDR3
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How long can the 15 W TDP processor sustain its 2.6 GHz boost before thermal limits throttle it?

The fanless aluminium chassis is rated for continuous 7×24 operation at the 15 W TDP, so the i5-4200U maintains its 2.6 GHz boost indefinitely under normal ambient conditions.

What noise and heat output should I expect when the unit runs 24/7 in a closed cabinet?

With no moving parts the system is silent; the aluminium case acts as a heatsink keeping surface temperatures warm but safe for enclosed industrial cabinets.

Which serial cables or adapters are needed to use the six COM ports on day one?

The six DB9 ports support RS232, RS422 and RS485 selectable in BIOS, so standard straight-through serial cables or DB9-to-terminal-block adapters are all that is required.
