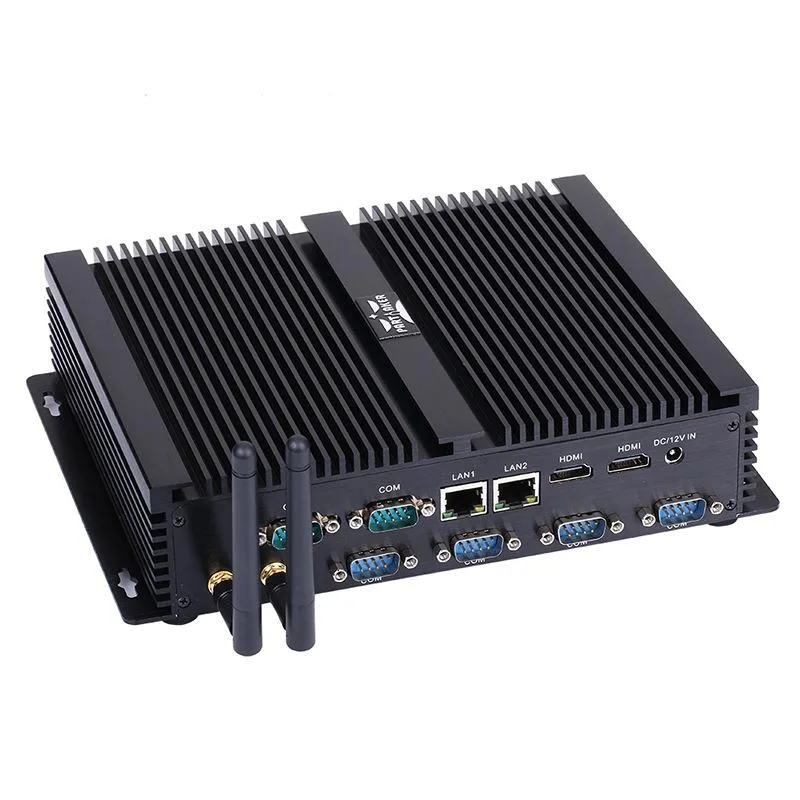

Compact black aluminium Mini PC with mounting ears

Inctel

Inctel I4 I7-4500U 4GB DDR3 64GB SSD desktop PC

SKU CH-83A8-H7BSE

Industrial mini PC with an Intel Core i7-4500U, 4 GB DDR3, 64 GB SSD, six COM ports and dual Intel Gigabit LAN in a fanless aluminium chassis

  • Form FactorMini PC
  • ColorBlack
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i7 4th Gen
  • CPU NameIntel Core i7-4500U
  • GPU/VGA TypeIntel HD Graphics 4400

Color Black

CPU Type Intel Core i7 4th Gen

CPU Name · GPU · Memory · SSD · HDD Intel Core i7-4500U · Intel HD Graphics 4400 · 4GB DDR3 · 64GB · None

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Industrial fanless design runs 24/7 without shutdowns
  • Dual HDMI outputs drive two independent displays simultaneously
  • Six COM RS232 ports connect legacy serial equipment directly
  • Two Intel Gigabit LAN ports provide reliable wired networking
  • Pre-installed Windows 10 Pro on 64 GB SSD is ready to deploy

Industrial mini PC for embedded use

The Inctel I4 is a fanless desktop computer built around an Intel Core i7-4500U processor with 4 GB of DDR3 memory and a 64 GB SSD. It ships with Windows 10 Pro pre-installed and provides six RS-232 COM ports plus dual Intel Gigabit LAN for industrial automation, kiosk or digital signage deployments. The aluminium chassis measures 175 by 210 by 45 mm and includes mounting ears for fixed installation.

Fanless cooling and low power draw

Passive thermal management allows continuous 24/7 operation without moving parts or audible noise. The system draws between 15 W and 25 W during typical daily use and accepts a 12 V 5 A supply from a 100-240 V AC source. AC power-loss recovery and LAN PXE boot are supported, while Wake-on-LAN functions only under Windows 7.

Dual display and wireless connectivity

Two HDMI outputs drive independent or cloned screens for multi-monitor setups. The bundle adds dual-band 802.11ac Wi-Fi antennas, a power supply, a power cord and the mounting hardware. An internal mSATA slot and a 2.5-inch bay allow storage expansion up to 8 GB of DDR3L memory, while four USB 3.0 and four USB 2.0 ports handle peripheral connections.

Points forts

  • Industrial fanless design runs 24/7 without shutdowns
  • Dual HDMI outputs drive two independent displays simultaneously
  • Six COM RS232 ports connect legacy serial equipment directly
  • Two Intel Gigabit LAN ports provide reliable wired networking
  • Pre-installed Windows 10 Pro on 64 GB SSD is ready to deploy

Caractéristiques

ModelI4-I7 4500U-4G64G
Part NumberI4-I7 4500U-4G64G
Form FactorMini PC
ColorBlack
Operating SystemWindows 10 Pro
CPU TypeIntel Core i7 4th Gen
CPU NameIntel Core i7-4500U
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity4GB DDR3
SSD64GB
HDDNo
Screen SizeNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount the I4 mini PC using its built-in ears, and which step is commonly missed?

Attach the aluminum chassis to a wall or DIN rail with the integrated mounting ears, then connect the 12 V 5 A DC power adapter before turning on; the step often missed is securing both ears so the fanless case stays aligned for passive cooling.

Which components can be upgraded later, and what are the limits?

The single SO-DIMM slot accepts DDR3L 1333/1600 up to 8 GB total; storage can use one mSATA SSD plus one 2.5-inch HDD, but the supplied 64 GB mSATA drive is not user-replaceable without opening the case.

What thermal limit appears first during continuous 24/7 operation?

The fanless design relies on the aluminum enclosure to dissipate 15–25 W; sustained loads that push the i7-4500U toward its 3.00 GHz turbo will hit the passive thermal ceiling before any other bottleneck.
