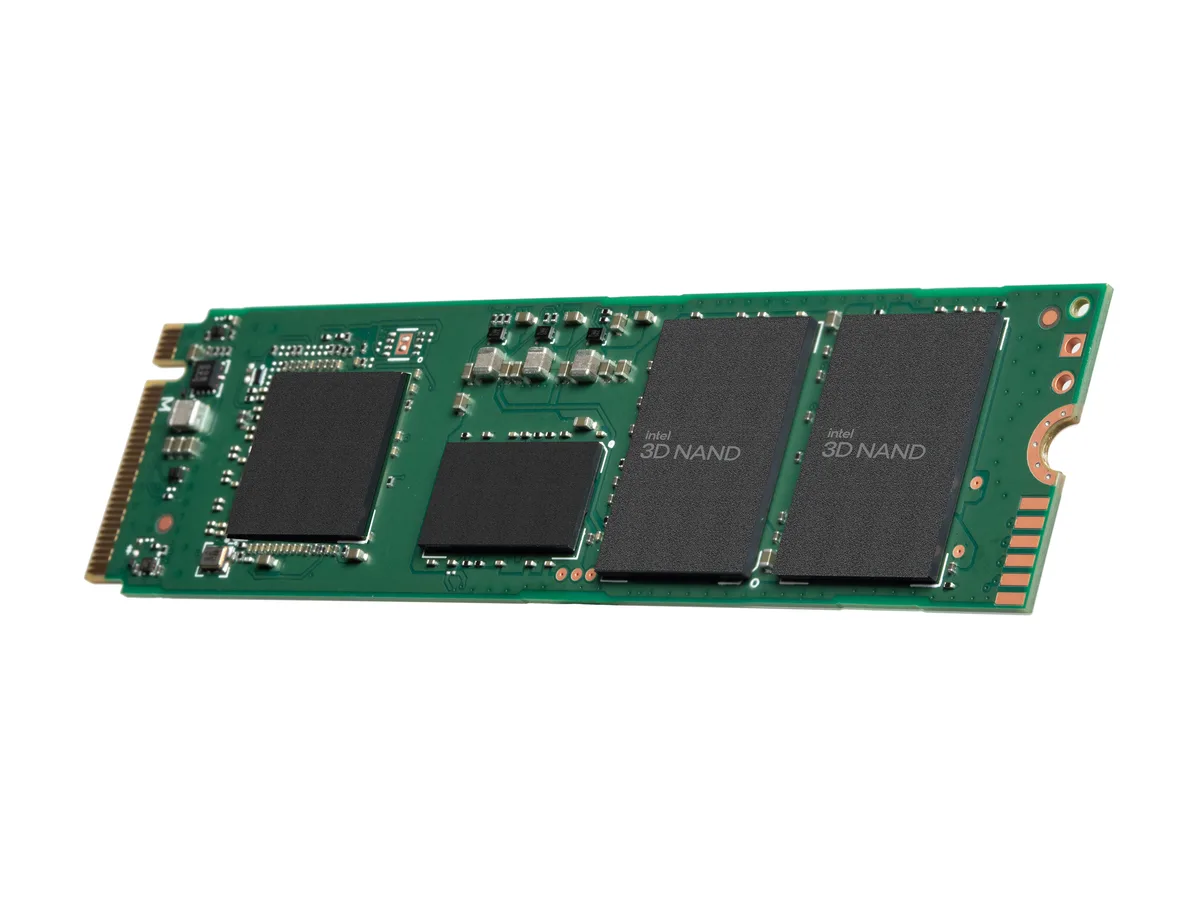

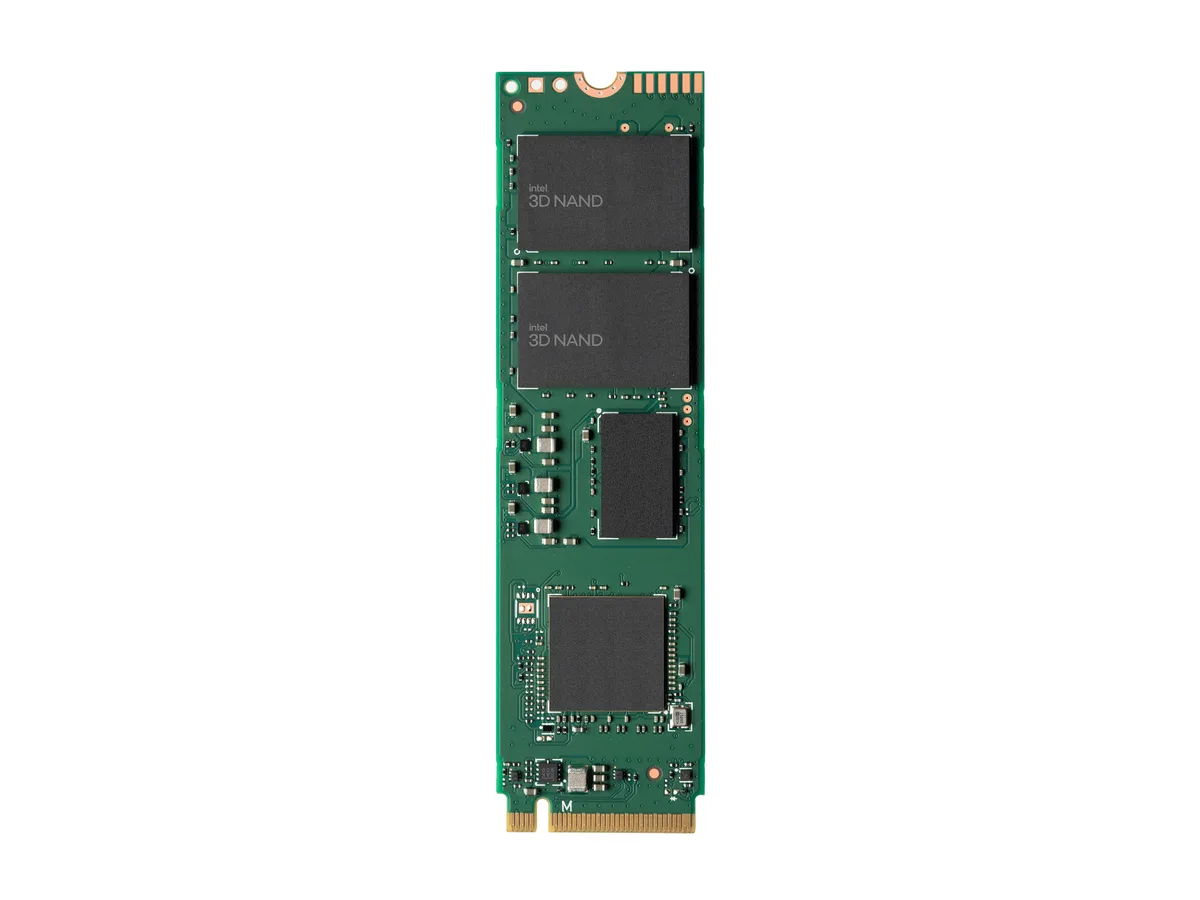

Green rectangular M.2 2280 SSD with gold edge connector and black controller chips

Intel

Intel 670p Series 512GB M.2 2280 PCIe 3.0 x4 NVMe QLC internal SSD SSDPEKNU512GZX1

SKU CH-JG00-DQ3N6 MPN SSDPEKNU512GZX1

M.2 2280 512GB QLC drive with PCIe 3.0 x4 NVMe reaching 3000 MB/s read and 1600 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D4 QLC
  • InterfacePCIe 3.0 x4, NVMe

Options 512GB

  • Up to 3000 MB/s sequential read for fast boot and load times
  • Up to 1600 MB/s sequential write for responsive file saves
  • 185 TBW endurance rating supports heavy daily workloads
  • 1,600,000 hour MTBF indicates long-term reliability
  • Low 25 mW idle power extends laptop battery life

512GB QLC NVMe SSD for everyday PCs

The Intel 670p Series 512GB drive uses 144-layer QLC NAND and a PCIe 3.0 x4 NVMe interface in the M.2 2280 form factor. It is built for consumer notebooks, desktops and mobile devices that need high capacity at an accessible price point.

Thermals, noise and power in normal use

With no moving parts the drive runs silently. Active power draw is 80 mW and idle power is 25 mW. The operating temperature range spans 0°C to 70°C, while shock resistance reaches 1,000G during operation and 1,500G when powered off. Vibration tolerance is rated at 2.17 GRMS across 5-700 Hz.

185TB written endurance for the 512GB model

The terabytes-written rating of 185TB is the single figure that determines whether this drive suits your workload. Sequential speeds reach 3,000 MBps read and 1,600 MBps write, with random performance of 110,000 IOPS read and 315,000 IOPS write. MTBF is 1,600,000 hours.

Points forts

  • Up to 3000 MB/s sequential read for fast boot and load times
  • Up to 1600 MB/s sequential write for responsive file saves
  • 185 TBW endurance rating supports heavy daily workloads
  • 1,600,000 hour MTBF indicates long-term reliability
  • Low 25 mW idle power extends laptop battery life

Caractéristiques

BrandIntel
Series670p Series
ModelSSDPEKNU512GZX1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D4 QLC
InterfacePCIe 3.0 x4, NVMe
Max Sequential ReadUp to 3000 MBps
Max Sequential WriteUp to 1600 MBps
4KB Random ReadUp to 110,000 IOPS
4KB Random WriteUp to 315,000 IOPS
Terabytes Written (TBW)185TB
MTBF1,600,000 hours
Power Consumption (Idle)25 mW
Power Consumption (Active)80 mW
Operating Temperature0°C ~ +70°C
Max Shock ResistanceOperating; 1,000G/0.5 ms
Non Operation; 1,500G/0.5 ms
Max Vibration Resistance2.17 GRMS (5-700 Hz)
Height2.38mm
Width22.00mm
Depth80.00mm
Poids d’expédition0.11 kg
Dimensions du colis163 × 122 × 20 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the M.2 2280 PCIe 3.0 x4 NVMe SSD in my laptop or desktop, and what step do people often miss?

Insert the drive at an angle into the M.2 slot, press it flat, and secure it with the motherboard screw; the step many miss is enabling the NVMe controller in BIOS so the OS sees the 512GB volume.

What maintenance or replacement will the Intel 670p Series 512GB QLC drive need over its lifetime?

No scheduled maintenance is required; the 185 TBW endurance rating and 1.6 million hour MTBF indicate when the NAND may wear out, at which point the drive is replaced rather than serviced.

What limit appears first on the SSDPEKNU512GZX1 during sustained heavy writes?

The sequential write ceiling of 1600 MBps is reached before the 3000 MBps read limit, and the 185 TBW endurance budget will be consumed if that rate continues for extended periods.
