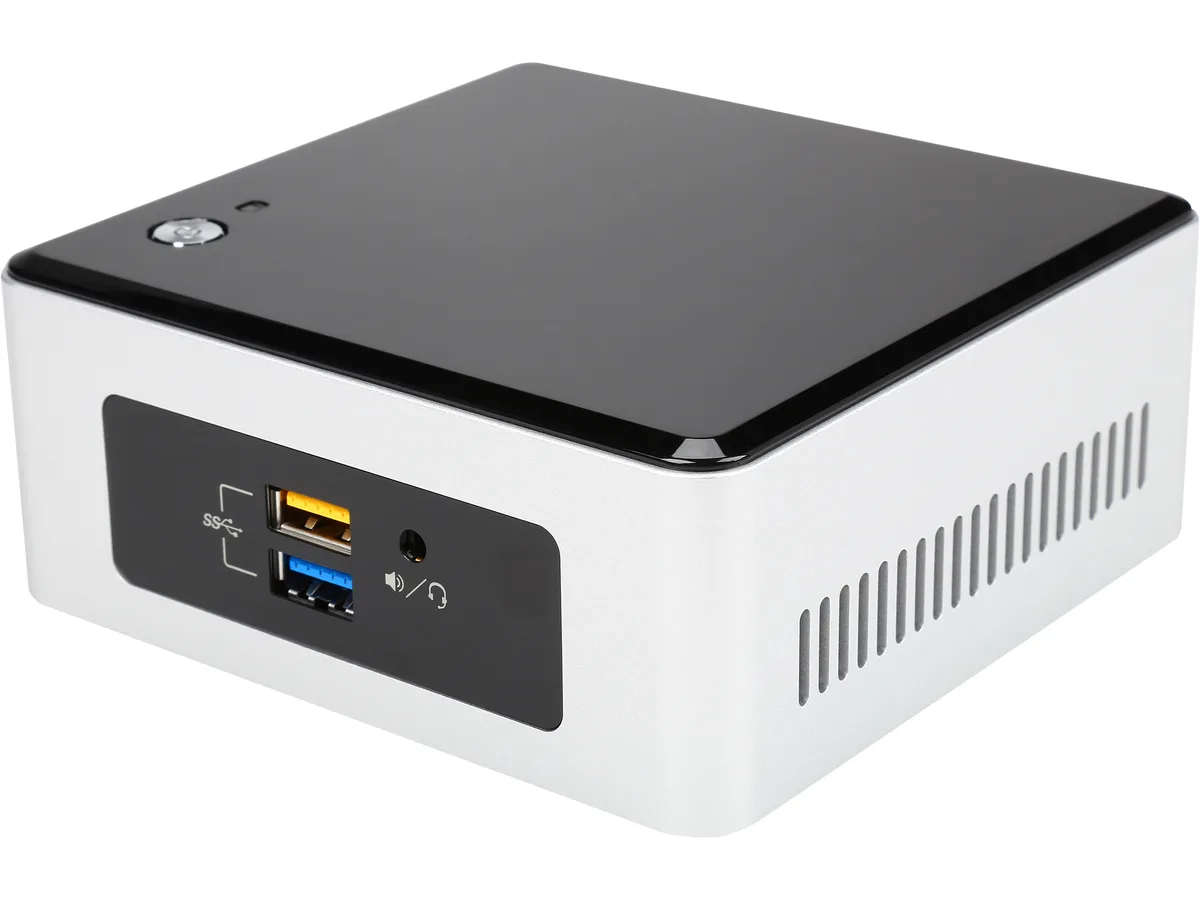

Small square black mini PC barebone unit with front ports and side card slot

Intel

Intel BOXNUC5CPYH Celeron N3050 barebone mini PC

SKU CH-S9SJ-NT1D0 MPN BOXNUC5CPYH

Barebone mini PC with Celeron N3050 dual-core processor, Intel HD Graphics, DDR3L SO-DIMM slot supporting 8 GB, 2.5" SATA bay, HDMI and VGA outputs, Gigabit LAN, and Intel Wireless-AC 3165 Wi-Fi

  • CPU TypeIntel Braswell Celeron N3050 (2.16 GHz Dual Core , 6W TDP)
  • Memory installedNo Memory
  • Memory slot1 x 204Pin SO-DIMM
  • Memory Type SupportedDDR3L 1600/1333
  • Max Memory Supported8GB
  • Storage InstalledNo Hard Drive
  • Dual-core Celeron N3050 at 2.16 GHz for responsive everyday computing
  • Intel HD Graphics with HDMI 1.4a and VGA for dual-display flexibility
  • DDR3L SO-DIMM slot supports up to 8 GB at 1.35 V
  • Gigabit LAN plus Intel Wireless-AC 3165 for wired and wireless networking
  • 5-inch SATA bay and SDXC UHS-I slot for storage expansion

Compact barebone with Celeron N3050

The Intel BOXNUC5CPYH is a new barebone mini PC built around a dual-core Celeron N3050 processor running at 2.16 GHz with a 6 W TDP. It arrives without memory or storage, providing one 204-pin SO-DIMM slot for DDR3L 1600/1333 modules up to 8 GB and a SATA 6.0 Gb/s connector for a 2.5-inch drive up to 9.5 mm thick. Integrated Intel HD Graphics drives one HDMI 1.4a and one VGA output.

Suits basic desktop and signage builds.

This unit fits builders who need a small, low-power system for office tasks, web browsing or digital signage and who will supply their own DDR3L SO-DIMM and 2.5-inch SATA drive. Buyers who want more than 8 GB of memory, multi-display performance beyond two legacy outputs, or a processor capable of sustained multi-threaded workloads should look at something else.

Single SO-DIMM slot limits memory to 8 GB DDR3L

The board provides only one 204-pin SO-DIMM slot supporting DDR3L at 1.35 V, capping total system memory at 8 GB. This single-slot, single-channel layout is the specification that decides whether the platform can meet your workload’s memory capacity and bandwidth requirements.

Points forts

  • Dual-core Celeron N3050 at 2.16 GHz for responsive everyday computing
  • Intel HD Graphics with HDMI 1.4a and VGA for dual-display flexibility
  • DDR3L SO-DIMM slot supports up to 8 GB at 1.35 V
  • Gigabit LAN plus Intel Wireless-AC 3165 for wired and wireless networking
  • 5-inch SATA bay and SDXC UHS-I slot for storage expansion

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelBOXNUC5CPYH
CPU TypeIntel Braswell Celeron N3050
(2.16 GHz Dual Core , 6W TDP)
Memory installedNo Memory
Memory slot1 x 204Pin SO-DIMM
Memory Type SupportedDDR3L 1600/1333
Max Memory Supported8GB
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
Integrated GraphicsIntel HD Graphics
1 x HDMI 1.4a
1 x HDB15 VGA
Onboard AudioUp to 7.1 surround audio via HDMI
Headphone/Microphone jack on the front panel
Headphone/TOSLINK jack on the rear panel
Channel7.1 Channel
LANRealtek 8111HN
Max LAN Speed1Gbps
Wireless LANIntel Wireless-AC 3165 M.2 2230, wireless antennas (IEEE 802.11ac, Intel Wireless Display)
BluetoothBluetooth* 4.0
2.5" Internal BaysInternal SATA3 support for 2.5" HDD/SSD (up to 9.5mm thickness)
Front USB2 x USB 3.0 ports on the front panel (1 x charging capable)
2 x Internal USB 2.0 via header
Card ReaderSDXC slot with UHS-I support on the side
Other Front PortsConsumer Infrared sensor on the front panel
Rear USB2 x USB 3.0
Power Supply19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
Dimensions2.03" x 4.37" x 4.53"
FeaturesIntel Celeron processor N3050
One DDR3L SO-DIMM socket (up to 8 GB, 1333/1600 MHz)
1 x SATA3 port for connection to 2.5" HDD or SSD
Intel Wireless-AC and Bluetooth* 4.0
Back panel DC power connector (12V - 19V)
TOSLINK optical audio jack
VGA port
One HDMI* 1.4b display port supporting 8 channel digital audio (7.1 surround sound)
Intel Gigabit LAN
2 x USB 3.0 ports on the back panel
Support for user-replaceable third-party lids
Kensington lock with base security
SD card slot
2 x USB 3.0 ports on the front panel (including one charging port)
Intel HD Audio1 via Headphone/Microphone jac
Poids d’expédition1.09 kg
Dimensions du colis140 × 127 × 117 mm

Questions sur cet article

Does the barebone kit include RAM or a 2.5" drive, or do I need to buy them separately?

The kit ships without memory and without a 2.5" HDD or SSD. You must add one DDR3L 1.35V SO-DIMM up to 8 GB and a 2.5" SATA drive up to 9.5 mm thick.

Which DDR3L speed should I choose, 1333 or 1600 MHz?

Both 1333 and 1600 MHz DDR3L modules are supported; the system will run at the speed of the installed module, so either works.

What resolution can I expect from the HDMI 1.4a port with the integrated Intel HD Graphics?

HDMI 1.4a supports up to 4K at 30 Hz; the Celeron N3050 integrated graphics will drive typical office and media workloads at 1080p comfortably.
