Small black square mini PC barebone unit

Intel

Intel NUC 12 Pro RNUC12WSHI70001 barebone mini PC i7-1260P DDR4 64GB dual M.2 2.5Gb LAN Wi-Fi 6E Bluetooth 5.2

SKU CH-3K47-NXHWP MPN RNUC12WSHI70001

Barebone mini PC with a 12th Gen Core i7-1260P, dual DDR4-3200 slots up to 64 GB, two M.2 bays plus a 2.5" SATA bay, 2.5 Gb LAN, Wi-Fi 6E and Bluetooth 5.2

  • ColorBlack
  • CPU Type12th Gen Intel® Core™ i7-1260P ( 4P+8E/16T / P-Cores: up to
  • Memory installedNo Memory
  • Memory slotDual DDR4-3200 SODIMMs, 1.2V, up to 64GB
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • 12th Gen Core i7-1260P with 4P+8E cores and 4.7 GHz boost
  • Dual-channel DDR4-3200 SODIMM slots supporting up to 64 GB
  • Two M.2 slots for PCIe Gen 4 NVMe and SATA SSDs
  • Intel 2.5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5.2
  • 5-inch SATA bay adds flexible storage expansion

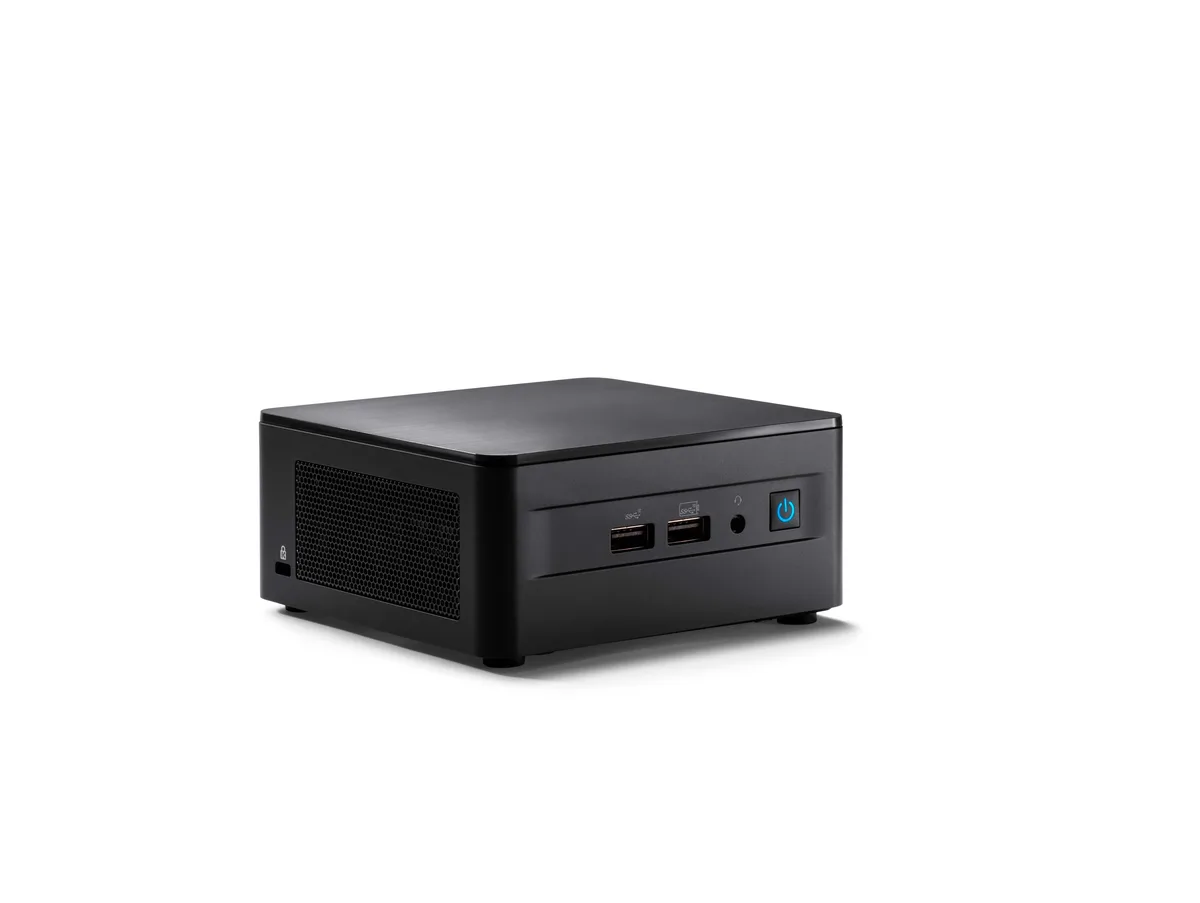

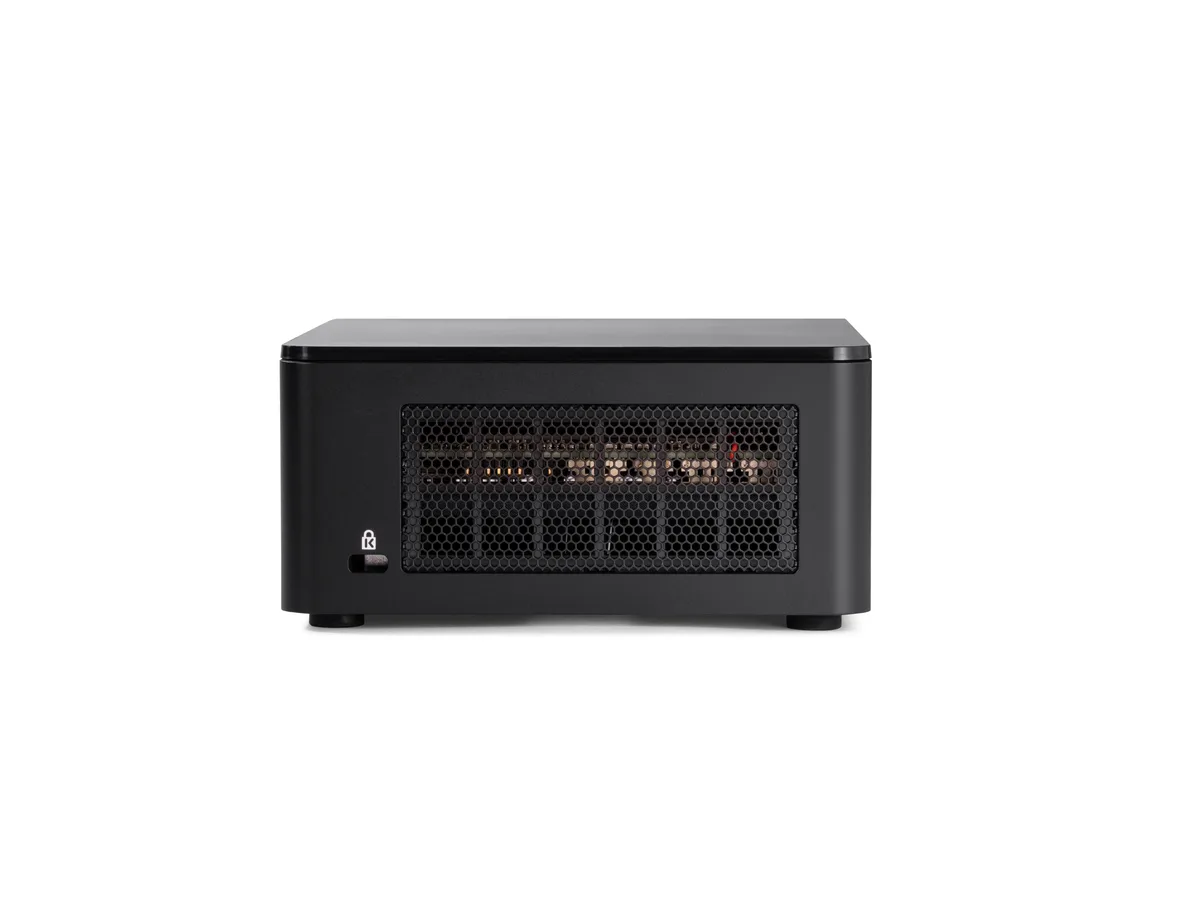

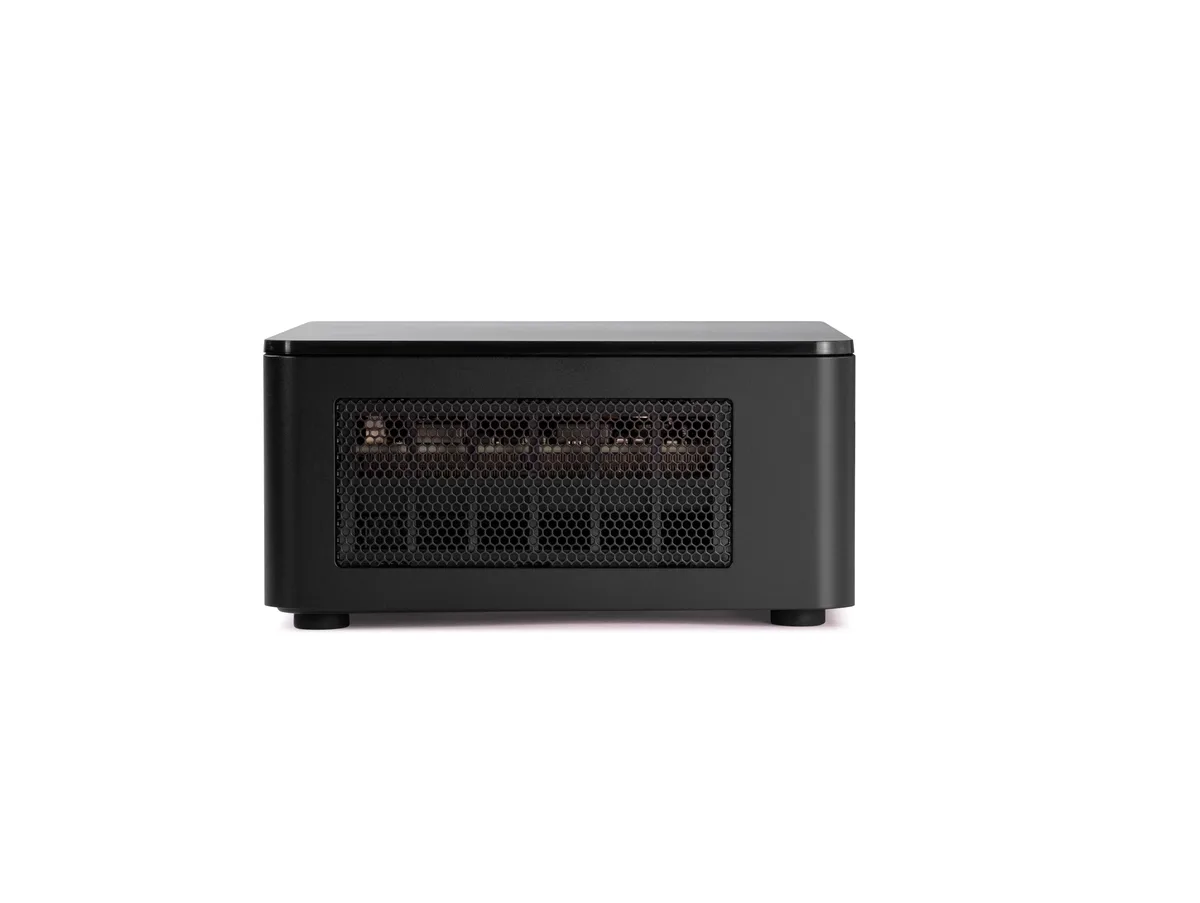

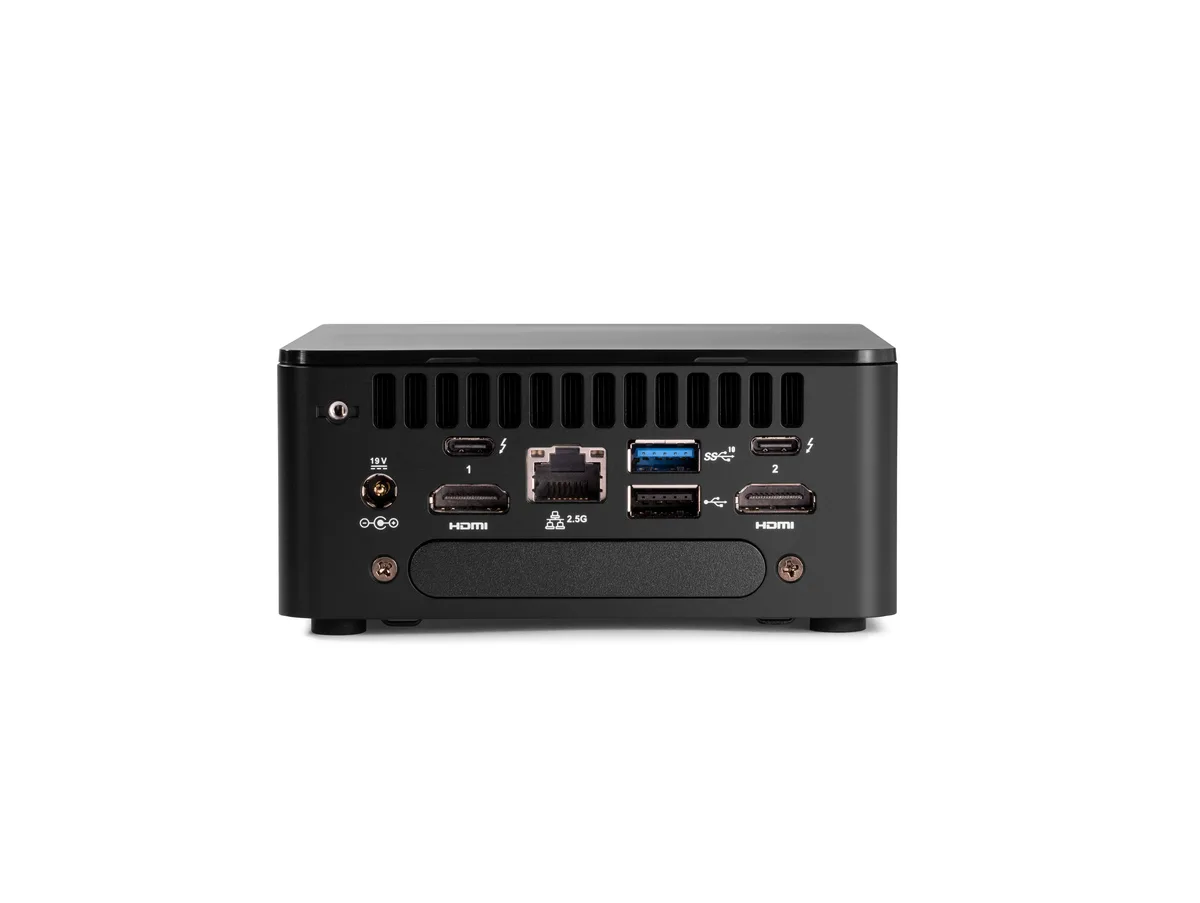

Intel NUC 12 Pro barebone mini PC

This Intel NUC 12 Pro barebone mini PC arrives with a 12th Gen Core i7-1260P processor already installed. It targets system builders who want a compact desktop platform for office productivity, digital signage or light content creation. The 35W TDP keeps thermal demands modest for small enclosures.

Dual DDR4-3200 SO-DIMM slots up to 64GB

The single specification that decides fit is the memory subsystem: two DDR4-3200 SO-DIMM sockets supporting dual-channel operation up to 64GB total. No memory is included, so buyers must supply compatible 1.2V modules. Other DDR generations will not fit.

Two M.2 slots plus a 2.5" SATA bay

Storage headroom comes from one M.2 2280 slot taking PCIe Gen4 NVMe or SATA drives up to 8TB, a second M.2 2242 slot for PCIe Gen3 NVMe or SATA up to 512GB, and a 2.5-inch bay for additional SATA SSDs. Builds needing more than two NVMe devices or 2.5-inch hard drives will require external storage.

Points forts

  • 12th Gen Core i7-1260P with 4P+8E cores and 4.7 GHz boost
  • Dual-channel DDR4-3200 SODIMM slots supporting up to 64 GB
  • Two M.2 slots for PCIe Gen 4 NVMe and SATA SSDs
  • Intel 2.5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5.2
  • 5-inch SATA bay adds flexible storage expansion

Caractéristiques

BrandIntel
SeriesNUC 12 Pro
ModelRNUC12WSHI70001
Part NumberRNUC12WSHI70001
ColorBlack
CPU Type12th Gen Intel® Core™ i7-1260P ( 4P+8E/16T / P-Cores: up to 4.7GHz - E-Cores: up to 3.4GHz / 18MB Intel® Smart Cache / 35W TDP)
Memory installedNo Memory
Memory slotDual DDR4-3200 SODIMMs, 1.2V, up to 64GB
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
M.2 Slot1x M.2 22x80 socket supporting PCIe x4 Gen 4 NVMe from 128GB to 8TB or SATA SSD from 128GB to 2TB / 1x M.2 22x42 socket (non-dual-LAN only) supporting
PCIe x1 Gen3 NVMe from 128GB to 512GB or SATA SSD from 128GB to 512GB
Integrated GraphicsIntel® Iris® Xe Graphics
Onboard AudioHigh Definition Audio
Channel7.1 multichannel digital audio via HDMI or Thunderbolt
LAN1x Intel 2.5Gb LAN
Max LAN Speed2.5 Gigabit Ethernet
Wireless LANIntel Wi-Fi 6E AX211, 802.11ax
BluetoothBluetooth 5.2
2.5" Internal Bays2.5'' bay
Front USB2x Front USB 3.2 Gen2 type-A
Front Audio Ports3.5mm stereo headset jack
HDMI2x HDMI 2.0b
Thunderbolt 32x Thunderbolt 4 (Alt-DP)
Rear USB1 x Rear USB 3.2 Gen2 type-A
1 x Rear USB 2.0 type-A
RJ451
Input12-20VDC variable DC input
Power Supply120W 19V PSU supplied
Dimensions117x112x54mm
FeaturesDisplay emulation via HDMI (Virtual display, persistent display, headless display) / Delayed AC start / Auto CMOS reset / DC transient voltage suppression
Poids d’expédition1.61 kg
Dimensions du colis193 × 171 × 124 mm

Questions sur cet article

What does the i7-1260P's 4.7 GHz turbo mean once the NUC is assembled and running real workloads?

The processor can boost its performance cores to 4.7 GHz for short bursts when thermal headroom allows, while the eight efficient cores reach 3.4 GHz, giving strong single-thread speed and 16-thread throughput within the 35 W TDP envelope.

How fast can the 2.5 Gigabit Ethernet port actually move data in a typical wired network?

The Intel 2.5Gb LAN controller negotiates at 2.5 Gb/s, so throughput is limited to that rate and requires a 2.5 Gb switch and Cat 5e or better cabling to reach full speed.

Which physical drives fit the two M.2 slots and the internal bay?

The primary M.2 2280 slot takes PCIe Gen 4 x4 NVMe or SATA SSDs from 128 GB to 8 TB or 2 TB respectively; the secondary M.2 2242 slot accepts PCIe Gen 3 x1 NVMe or SATA up to 512 GB; the 2.5 inch bay holds a SATA SSD.
