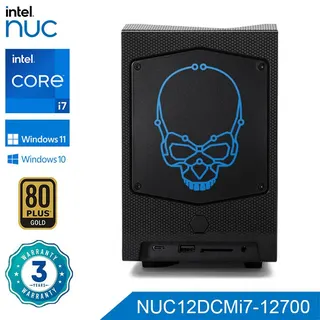

Small square black metal mini PC with front ports visible

Intel

Intel NUC12DCMi7 Core i7-12700 12C/20T 4.9GHz barebone mini PC

SKU CH-XJY6-NBRVD MPN NUC12DCMi7

A 12-core, 20-thread barebone with 10 GbE, Wi-Fi 6E and dual-channel DDR4-3200 support up to 64 GB

  • CPU TypeIntel Core i7 12th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 12-core i7-12700 reaches 4.9 GHz for fast multi-threaded work
  • Intel UHD Graphics 770 drives three 4K displays without a discrete card
  • 10 GbE AQC113 LAN plus Wi-Fi 6E AX211 and Bluetooth 5.2 give high-speed wired and wireless links
  • Dual-channel DDR4 3200 SO-DIMM slots accept up to 64 GB for large memory tasks
  • Three M.2 PCIe 4.0 slots plus 2.5 and 3.5-inch bays allow flexible storage expansion

Dragon Canyon i7-12700 Barebone

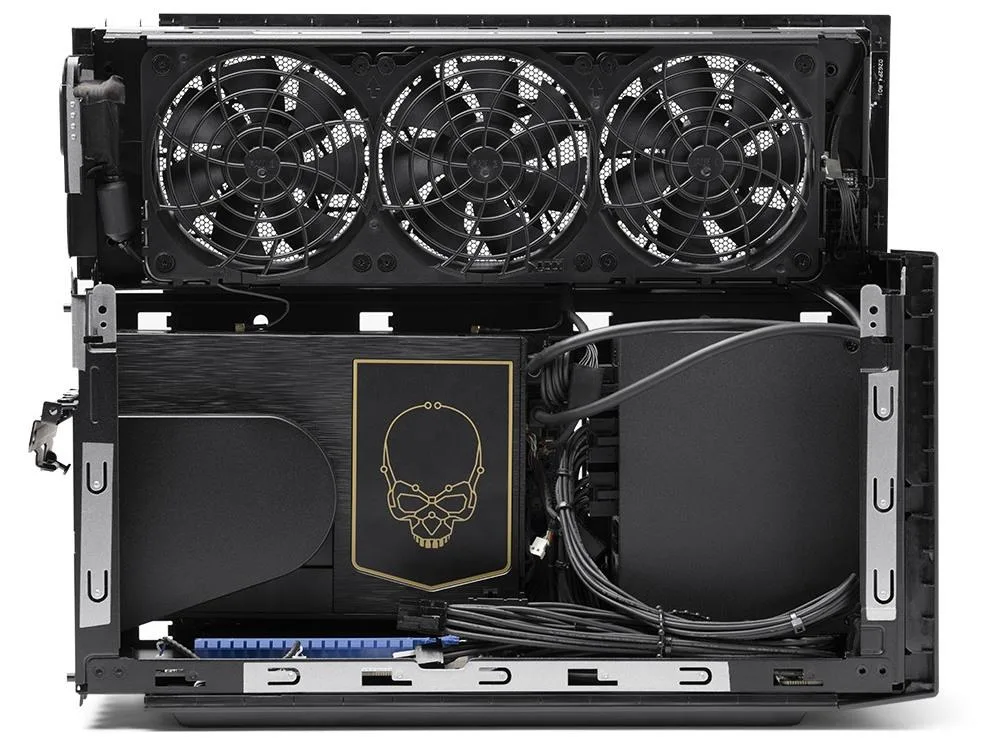

This Intel NUC12DCMi7 barebone mini PC integrates a 12-core, 20-thread Core i7-12700 processor reaching 4.9 GHz with 25 MB cache and Intel UHD Graphics 770. It arrives without memory or storage, ready for system builders who want a compact 8 L chassis that still accepts a full-length discrete graphics card up to 313 mm via a PCIe 5.0 x16 slot with 12VHPWR power.

Target Builder Profile

It suits enthusiasts building a high-performance small-form-factor workstation or gaming rig who can supply DDR4 3200 SO-DIMMs, M.2 SSDs and optional 2.5 or 3.5-inch drives. Buyers needing a complete out-of-the-box system, those who require ECC memory support, or anyone wanting a smaller footprint without discrete GPU clearance should look elsewhere.

Deciding Specification

The single spec that determines fit is the PCIe 5.0 x16 slot with 12VHPWR delivering up to 650 W from the 80Plus Gold modular supply, because it dictates which modern graphics cards can be powered and cooled inside the 357x189x120 mm enclosure.

Points forts

  • 12-core i7-12700 reaches 4.9 GHz for fast multi-threaded work
  • Intel UHD Graphics 770 drives three 4K displays without a discrete card
  • 10 GbE AQC113 LAN plus Wi-Fi 6E AX211 and Bluetooth 5.2 give high-speed wired and wireless links
  • Dual-channel DDR4 3200 SO-DIMM slots accept up to 64 GB for large memory tasks
  • Three M.2 PCIe 4.0 slots plus 2.5 and 3.5-inch bays allow flexible storage expansion

Caractéristiques

BrandIntel
SeriesDragon Canyon
ModelNUC12DCMi7
CPU TypeIntel Core i7 12th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot3 x M.2
Discrete Graphic CardIntel UHD Graphics 770
Onboard AudioIntegrated
Channel7.1 Channel
LAN10GbE (AQC113)
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211(Gig+)
BluetoothYes
Front USBUSB 3.2 Gen2x2 Type-C,USB 3.2 Gen2 Type-A
Front Audio Ports3.5mm stereo headset jack
Card ReaderSDXC slot with UHS-II support
HDMIHDMI 2.0b port
DisplayPort2x Thunderbolt 4 (DP 1.4)
Rear USB6x USB 3.2 Gen2 Type-A
RJ45Marvel 10GbE LAN
Input12V
Power Supply500W
Dimensions43x27x21cm
Weight8kg
PackagingOriginal packaging

Questions sur cet article

How can I confirm the Intel Core i7-12700 is running at its 4.9GHz boost after assembly?

Enter the BIOS on first boot to verify the processor is detected as a 12-core, 20-thread i7-12700, then run a CPU stress test in the OS and watch for sustained clocks up to 4.9GHz on all cores.

Which components are missing from the barebone box that I must purchase separately?

The unit ships with no memory and no storage; you must add two DDR4 3200 SO-DIMMs (up to 64GB total) and at least one M.2 SSD for the operating system.

Should I choose a single 64GB kit or two 32GB modules for the dual-channel DDR4 3200 slots?

Two 32GB SO-DIMMs populate both 262-pin slots for full dual-channel bandwidth, while a single 64GB module would run in single-channel mode.
