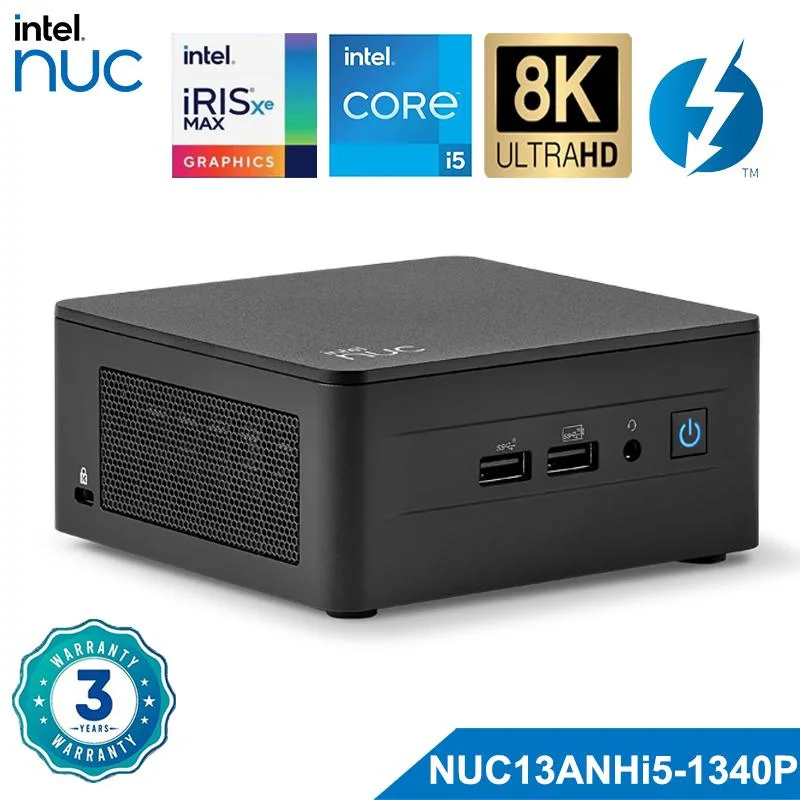

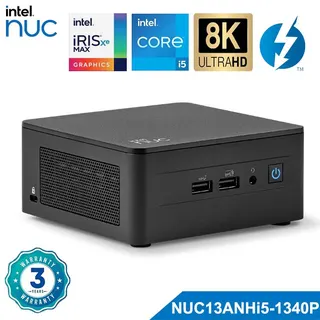

Small square black mini PC barebone with front ports visible

Intel

Intel NUC13ANHi5 Core i5-1340P barebone mini PC

SKU CH-5XH2-8NCS3 MPN NUC13ANHi5

Barebone mini PC with a 13th Gen Core i5-1340P, dual DDR4 SO-DIMM slots up to 64 GB, two M.2 bays, Intel Iris Xe graphics, 2.5 GbE LAN, Wi-Fi 6E and front USB 3.2 ports

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 13th Gen Core i5-1340P with 12 cores and 16 threads for demanding workloads
  • Intel Iris Xe 96EU graphics at 1.50GHz for crisp visuals and light content creation
  • Dual-channel DDR4 3200 support up to 64GB for responsive multitasking
  • Wi-Fi 6E AX211 plus 2.5GbE LAN for fast, stable wired and wireless connectivity
  • Two M.2 slots and Thunderbolt 4 for flexible high-speed storage and peripheral expansion

Ready for DDR4 memory and M.2 storage

This barebone mini PC ships without RAM or drives so you can choose the capacity and speed that match your workload. It accepts up to 64 GB of DDR4 3200 in two SO-DIMM slots running in dual-channel mode. Two M.2 sockets provide room for primary and secondary solid-state storage.

Suited to compact business deployments

The 13th Gen Core i5-1340P with 12 cores and 16 threads plus Iris Xe graphics handles office suites, digital signage and light content creation in a chassis that fits behind a display. Buyers who need discrete GPU power or more than two M.2 slots should consider a larger platform.

Dual-channel DDR4 3200 support up to 64 GB

Memory configuration is the key compatibility check: the board only accepts DDR4 SO-DIMMs at 3200 MT/s, and populating both slots enables dual-channel bandwidth for the integrated graphics.

Points forts

  • 13th Gen Core i5-1340P with 12 cores and 16 threads for demanding workloads
  • Intel Iris Xe 96EU graphics at 1.50GHz for crisp visuals and light content creation
  • Dual-channel DDR4 3200 support up to 64GB for responsive multitasking
  • Wi-Fi 6E AX211 plus 2.5GbE LAN for fast, stable wired and wireless connectivity
  • Two M.2 slots and Thunderbolt 4 for flexible high-speed storage and peripheral expansion

Caractéristiques

BrandIntel
SeriesArena Canyon
ModelNUC13ANHi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic Cardntel Iris Xe Graphics
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed1Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
HDMI2x HDMI 2.1 TMDS
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
Input20V
Power Supply120W
Dimensions117 x 112 x 54 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Questions sur cet article

How loud does the NUC13ANHi5 get when the Core i5-1340P runs at 4.5 GHz all day?

The 13th Gen Core i5-1340P has a 12-core, 16-thread design with a 4.5 GHz max turbo frequency; thermal performance will depend on the chassis fan curve and workload intensity.

Which DDR4 SO-DIMM modules must I buy separately to populate the two 262-pin slots?

The board accepts two DDR4 3200 SO-DIMMs up to 64 GB total in dual-channel mode; no memory is included with the barebone unit.

Will my existing 2.5 GbE switch and Wi-Fi 6E router work properly with the NUC13ANHi5?

Yes, the onboard Intel i226-V controller provides 2.5 Gbps Ethernet and the Intel Wi-Fi 6E AX211 module supports 802.11ax on the 6 GHz band.
