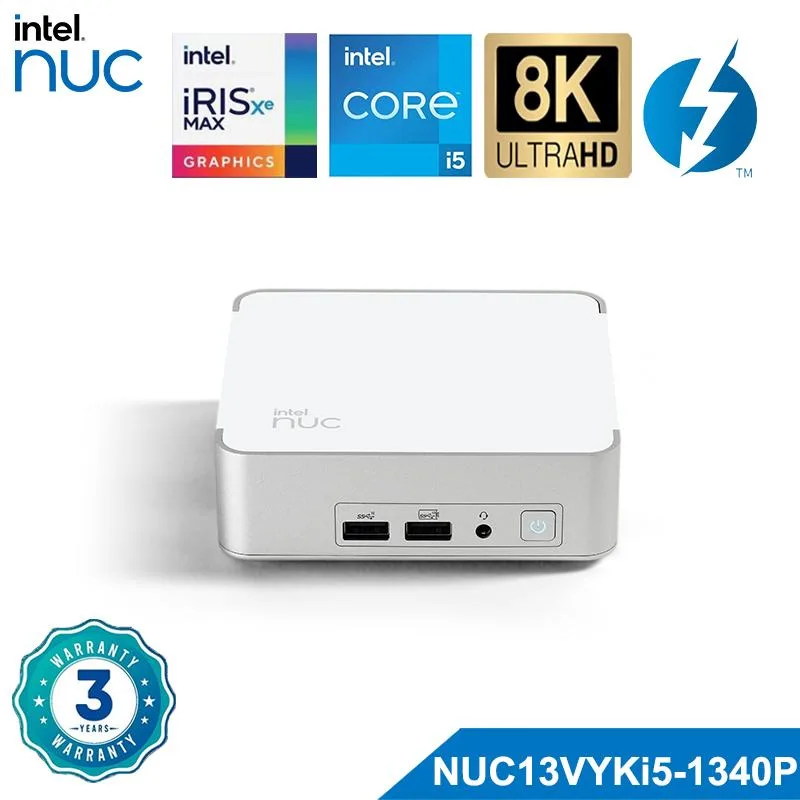

Small square mini PC with matte white finish and rounded edges

Intel

Intel NUC13VYKi5 Core i5-1340P 16GB 512GB barebone mini PC

SKU CH-9FW4-T8QR7 MPN NUC13VYKi5

A compact barebone mini PC with a 13th Gen Core i5 processor, Intel Iris Xe graphics, and dual-channel DDR4 support for up to 64 GB

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 13th Gen Intel Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB system memory
  • Two M.2 slots enable PCIe Gen 4 NVMe and PCIe Gen 3 SSD expansion
  • Dual Thunderbolt 4 ports deliver DP 1.4a video and USB 4 data throughput
  • Intel Wi-Fi 6E AX211 and 2.5 GbE LAN provide fast wireless and wired connectivity

Vivid Canyon barebone with Core i5-1340P

This Intel NUC13VYKi5 is a compact barebone mini PC built around a 13th Generation Core i5-1340P processor with 12 cores and 16 threads. It ships with Intel Iris Xe graphics featuring 80 execution units and a 35W TDP. The chassis includes dual M.2 slots and supports up to 64GB of dual-channel DDR4-3200 memory.

Suited for 4K signage and quiet offices.

The platform drives two HDMI 2.1 ports at 4K 60Hz with CEC and provides 2.5GbE LAN plus Wi-Fi 6E AX211 for network-heavy deployments. Thunderbolt 4 adds DP 1.4a and USB4 capability for high-speed peripherals. Buyers who need a discrete graphics card or more than two M.2 NVMe drives should look at a larger chassis.

Dual M.2 layout decides storage topology

One M.2 2280 key M slot runs PCIe x4 Gen 4 for a primary NVMe SSD while a second M.2 2242 key B slot runs PCIe x1 Gen 3 for additional storage or expansion. This fixed split determines whether your capacity and performance needs fit the platform.

Points forts

  • 13th Gen Intel Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB system memory
  • Two M.2 slots enable PCIe Gen 4 NVMe and PCIe Gen 3 SSD expansion
  • Dual Thunderbolt 4 ports deliver DP 1.4a video and USB 4 data throughput
  • Intel Wi-Fi 6E AX211 and 2.5 GbE LAN provide fast wireless and wired connectivity

Caractéristiques

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 80EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Questions sur cet article

Does the NUC13VYKi5 barebone include RAM and an SSD, or must I buy them separately?

This unit ships with no memory and no storage installed. You must add DDR4-3200 SODIMMs (up to 64 GB in two slots) and an M.2 2280 PCIe Gen 4 NVMe SSD for the primary drive; a 2242 PCIe Gen 3 slot is also available.

Should I choose the single 16 GB module or two 8 GB modules for dual-channel performance?

Install two identical DDR4-3200 SODIMMs to enable dual-channel mode; the board supports up to 64 GB total across its two 288-pin slots.

What does the 4.5 GHz turbo figure mean for everyday workloads?

The i5-1340P can boost its performance cores to 4.5 GHz for short bursts, giving snappy response in office apps and light content creation while staying within its 35 W base power.
