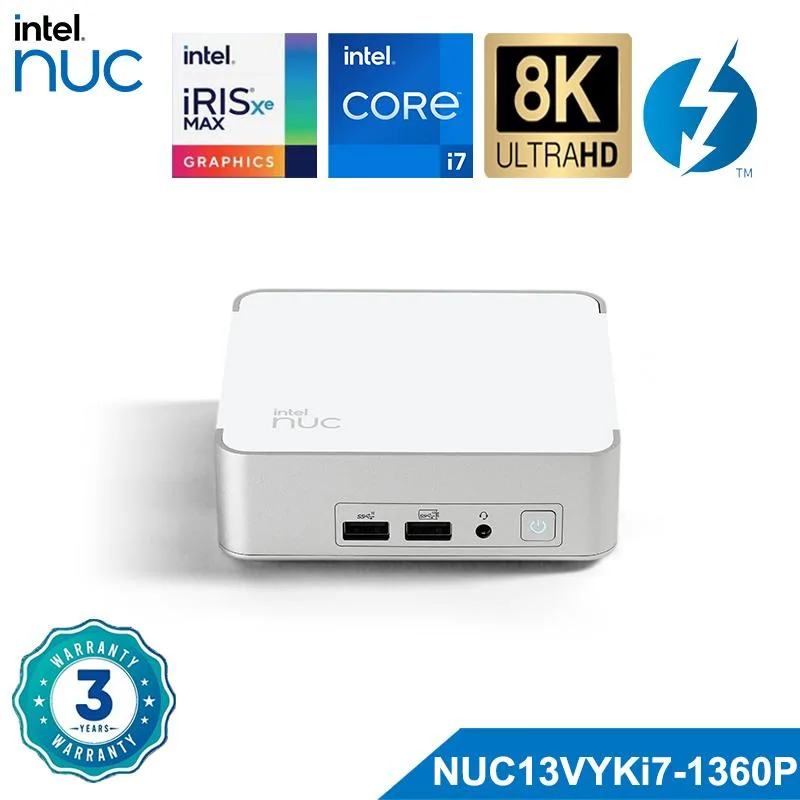

Small square mini PC in matte white finish

Intel

Intel NUC13VYKi7 Core i7-1360P 16GB 512GB barebone mini PC

SKU CH-8PBZ-PRTH1 MPN NUC13VYKi7

A compact barebone mini PC powered by a 13th Gen Intel Core i7-1360P processor with Intel Iris Xe graphics, supporting dual-channel DDR4-3200 memory up to 64 GB and dual M.2 storage slots

  • CPU TypeIntel Core i7 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 13th Gen Core i7-1360P with 12 cores and 16 threads for demanding workloads
  • Dual-channel DDR4-3200 SODIMM slots supporting up to 64 GB memory
  • Two Thunderbolt 4 ports with DisplayPort 1.4a and USB4 for versatile I/O
  • 5 Gbps Ethernet and Wi-Fi 6E AX211 for fast wired and wireless networking
  • M.2 slots for PCIe Gen 4 NVMe and SATA SSD expansion up to 64 GB RAM

Vivid Canyon 13th Gen Mini PC

This Intel NUC13VYKi7 barebone kit arrives new and ready for custom assembly. It houses a 13th Generation Core i7-1360P processor with 12 cores, 16 threads and 18 MB of Smart Cache. Intel Iris Xe graphics with 96 execution units drive up to two 4K displays at 60 Hz via HDMI 2.1. The compact chassis is qualified for continuous 24/7 operation.

Suits integrators adding their own memory

Two 288-pin DDR4-3200 SODIMM slots accept up to 64 GB in dual-channel mode, while one M.2 22x80 key-M slot and one M.2 22x42 key-B slot provide PCIe Gen 4 and Gen 3 pathways respectively. Buyers who need memory or an SSD pre-installed should look at a fully configured system instead.

Dual Thunderbolt 4 ports with DisplayPort 1.4a

Each port carries USB4, DisplayPort 1.4a and power delivery through a single USB-C connector, enabling high-speed docks, external GPUs or additional 4K monitors. If a project requires more than two Thunderbolt connections, a different platform will be necessary.

Points forts

  • 13th Gen Core i7-1360P with 12 cores and 16 threads for demanding workloads
  • Dual-channel DDR4-3200 SODIMM slots supporting up to 64 GB memory
  • Two Thunderbolt 4 ports with DisplayPort 1.4a and USB4 for versatile I/O
  • 5 Gbps Ethernet and Wi-Fi 6E AX211 for fast wired and wireless networking
  • M.2 slots for PCIe Gen 4 NVMe and SATA SSD expansion up to 64 GB RAM

Caractéristiques

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi7
CPU TypeIntel Core i7 13th Gen
Memory installedNo Memory
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 96EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Questions sur cet article

What does Thunderbolt 4 on the NUC13VYKi7 cap in practice?

Two Thunderbolt 4 ports provide DisplayPort 1.4a and USB 4 signalling, each supporting 4K at 60 Hz and high-speed data for docks or external storage.

What physical space and slots does the NUC13VYKi7 need for memory and storage?

The board has two 288-pin SODIMM slots for dual-channel DDR4-3200 up to 64 GB, one M.2 2280 key M slot for PCIe x4 Gen 4 NVMe, and one M.2 2242 key B slot for PCIe x1 Gen 3 or SATA.

What is the install sequence people often get wrong on this barebone?

Fit the SODIMMs and M.2 drives before closing the chassis, then enter BIOS to confirm dual-channel memory mode and set the NVMe as boot device before installing the OS.
