Black tall mini PC barebone chassis with front ports and vents

Intel

Intel NUC14RVHU5 barebone mini PC Core Ultra 5 125H Arc DDR5 Wi-Fi 6E Bluetooth 5.3 2.5GbE Thunderbolt

SKU CH-B0NR-SS7C5 MPN NUC14RVHU5

A compact barebone mini PC with an Intel Core Ultra 5 125H processor, Arc graphics, integrated NPU, dual DDR5 SO-DIMM slots supporting up to 96 GB, two M.2 NVMe slots, Wi-Fi 6E, Bluetooth 5.3.

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 5
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 16gb ram / 1tb ssd

  • 14-core Ultra 5 125H with NPU accelerates AI workloads
  • Intel Arc graphics at 2.2 GHz drives up to four displays
  • Dual DDR5-5600 slots support up to 96 GB memory
  • Two M.2 NVMe slots plus 2.5 GbE LAN for fast storage and networking

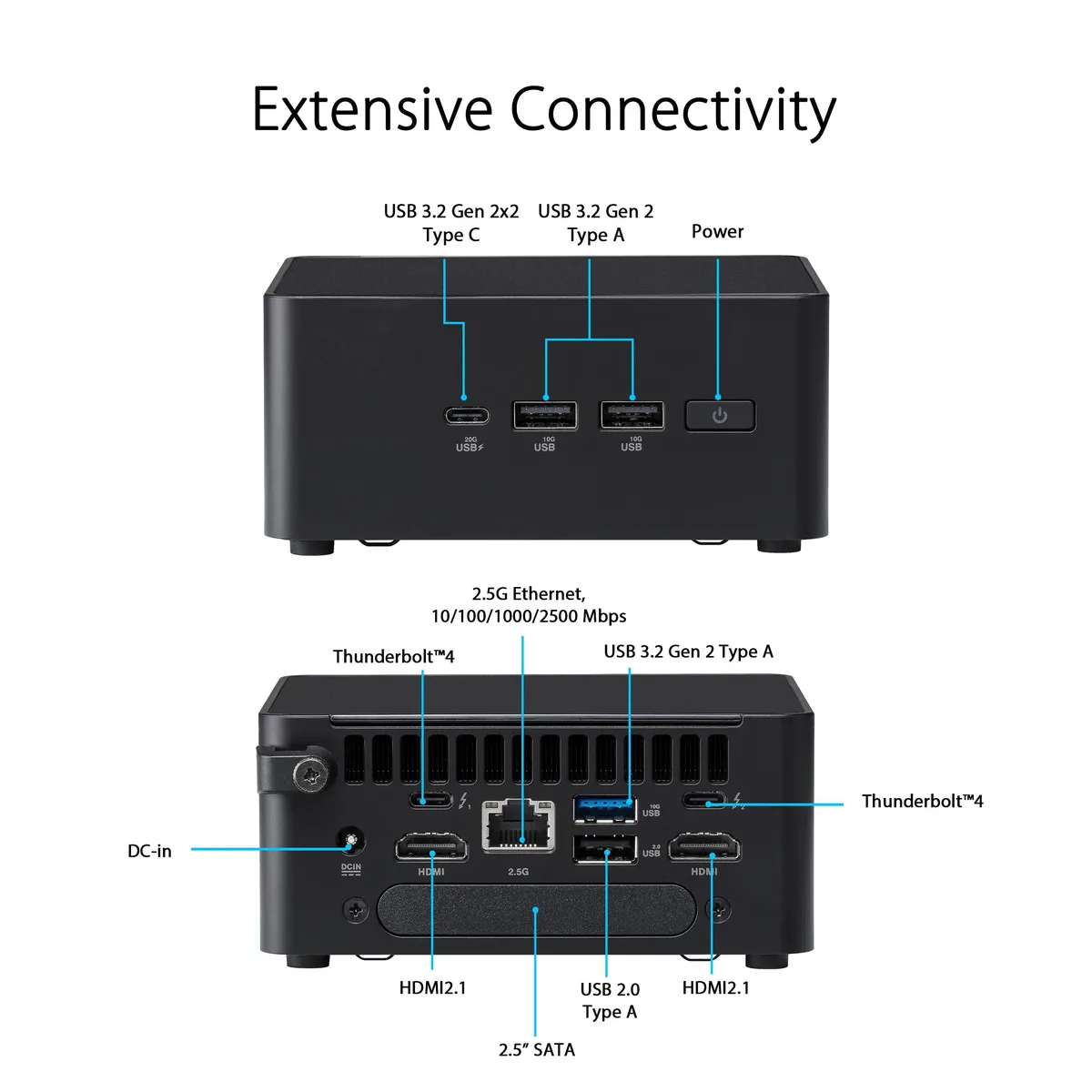

  • Two Thunderbolt 4 ports plus HDMI 2.1 and USB 3.2 Gen2x2 Type-C connectivity

Intel Core Ultra 5 125H Mini PC Barebone

This Intel NUC14RVHU5 barebone targets builders who want a compact desktop with a 14-core Core Ultra 5 125H processor and integrated Arc graphics. It suits small-form-factor workstations, home-theatre PCs or edge deployments where a 120 W power adapter and VESA mounting are preferred. Buyers needing discrete GPU performance or more than two storage slots should look elsewhere.

DDR5 5600 Memory and Dual M.2 Storage Limits

The board accepts two SO-DIMM modules up to 96 GB total at DDR5 5600 speeds. Storage is limited to one M.2 2280 PCIe Gen4 x4 slot and one M.2 2242 PCIe x4 slot; no 2.5-inch drive bay is provided. Wireless connectivity tops out at Wi-Fi 6E and Bluetooth 5.3, while wired LAN reaches 2.5 Gbps via the Intel i226-LM controller.

Straightforward Assembly With Clearance Checks

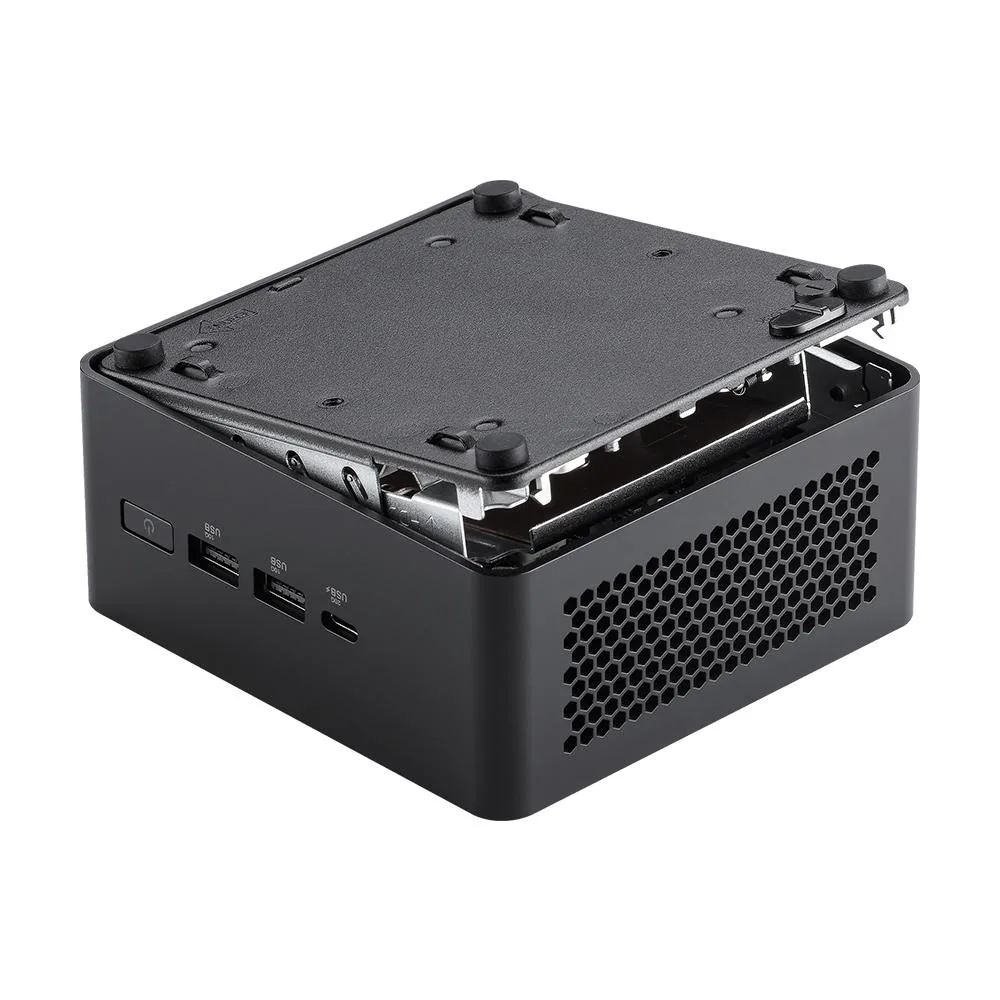

Installing memory and SSDs only requires removing the bottom panel, but the tall 54 mm chassis height restricts cooler clearance to the included thermal solution. Both M.2 slots share PCIe lanes with Thunderbolt ports, so populating all four high-speed interfaces may reduce available bandwidth. The 19 V 120 W adapter uses a proprietary DC jack, so verify cable routing before final mounting.

Points forts

  • 14-core Ultra 5 125H with NPU accelerates AI workloads
  • Intel Arc graphics at 2.2 GHz drives up to four displays
  • Dual DDR5-5600 slots support up to 96 GB memory
  • Two M.2 NVMe slots plus 2.5 GbE LAN for fast storage and networking
  • Two Thunderbolt 4 ports plus HDMI 2.1 and USB 3.2 Gen2x2 Type-C connectivity

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVHU5
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 5
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the 2280 or 2242 M.2 slot for my main NVMe drive?

Use the 2280 PCIe Gen4 x4 slot for the primary NVMe SSD; the 2242 x4 slot is best kept for a second drive.

What does the Core Ultra 5 125H NPU actually do in Windows?

The integrated NPU accelerates AI tasks such as video-conference background blur and eye-contact correction at low power.

What speed does the 2.5GbE port cap at with a standard Cat5e cable?

The Intel i226-LM controller negotiates 2.5 Gbps over Cat5e, giving roughly 2500 Mbps throughput.
