Small black slim mini PC barebone chassis 117 by 112 by 37 mm

Intel

Intel NUC14RVKU5 barebone mini PC Core Ultra 5 125H Arc DDR5 Wi-Fi 6E

SKU CH-7D2V-XHD4Q MPN NUC14RVKU5

Barebone mini PC with a 14-core Core Ultra 5 125H, Intel Arc graphics, dual DDR5 SO-DIMM slots up to 96 GB, two M.2 NVMe bays, Wi-Fi 6E, 2.5 Gb Ethernet and dual Thunderbolt 4 ports

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core Ultra 5
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 64gb ram / 4tb ssd

  • 14-core Core Ultra 5 125H with NPU for AI workloads
  • Intel Arc graphics at 2.2 GHz for visual tasks
  • DDR5-5600 dual-channel support up to 96 GB
  • Wi-Fi 6E AX211 plus Bluetooth 5.3 built in
  • Dual Thunderbolt 4 and HDMI 2.1 for quad displays

Slim Intel NUC barebone for custom mini PCs

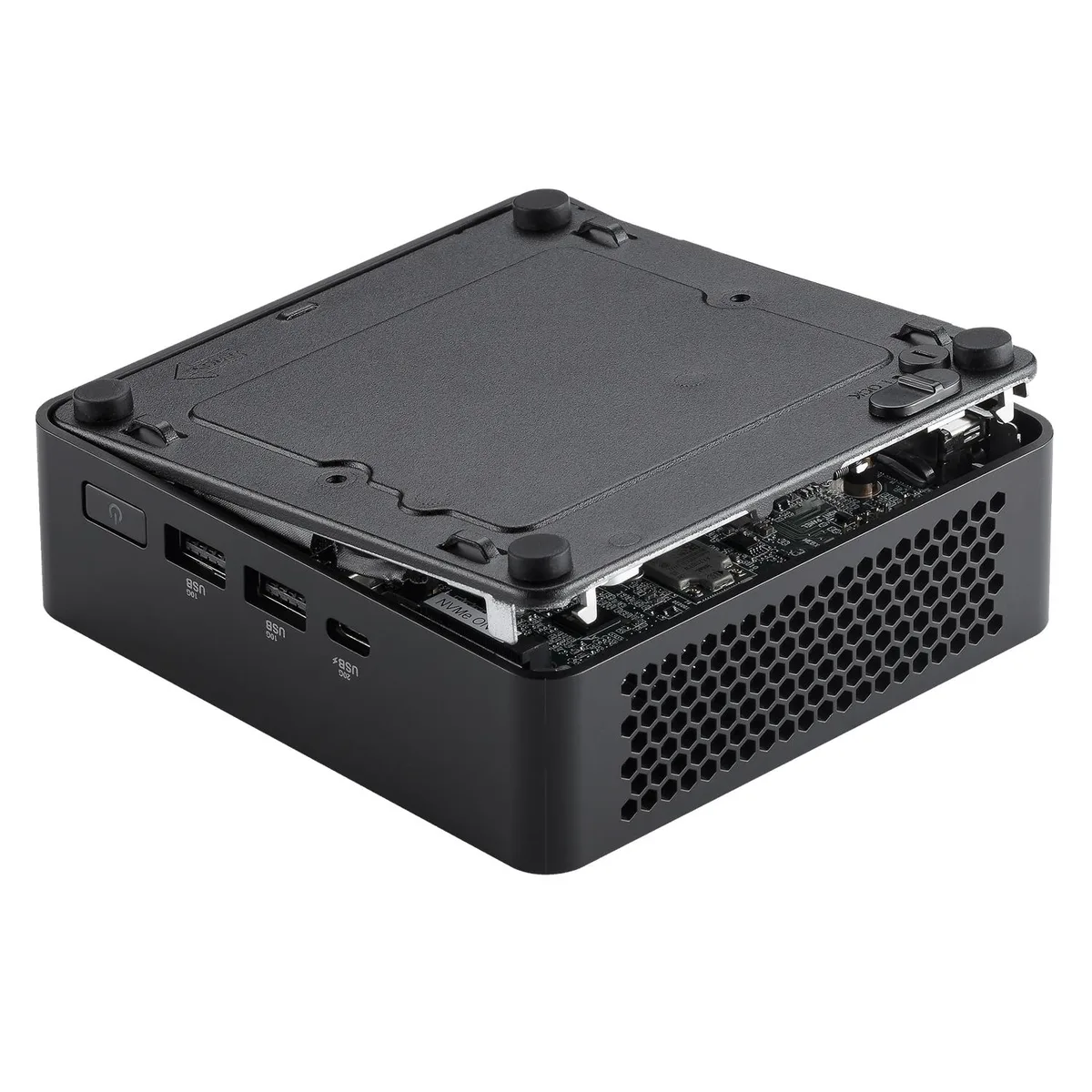

The NUC14RVKU5 is a compact barebone kit built around an Intel Core Ultra 5 125H processor with integrated Arc graphics and a dedicated NPU. It ships without memory or storage so system builders can choose DDR5 SO-DIMMs and NVMe SSDs that match their workload. The slim black chassis measures 117 by 112 by 37 millimetres and includes VESA mounting hardware for behind-display installation.

Dual DDR5 SO-DIMM slots supporting up to 96 GB

Memory capacity is the single specification that determines whether this barebone fits the intended role. Two slots accept DDR5-5600 modules up to 48 GB each, delivering 96 GB total in dual-channel mode. Buyers who need more than 96 GB of system memory must select a different platform because the memory controller and slot count are fixed.

Two M.2 NVMe slots and extensive I/O

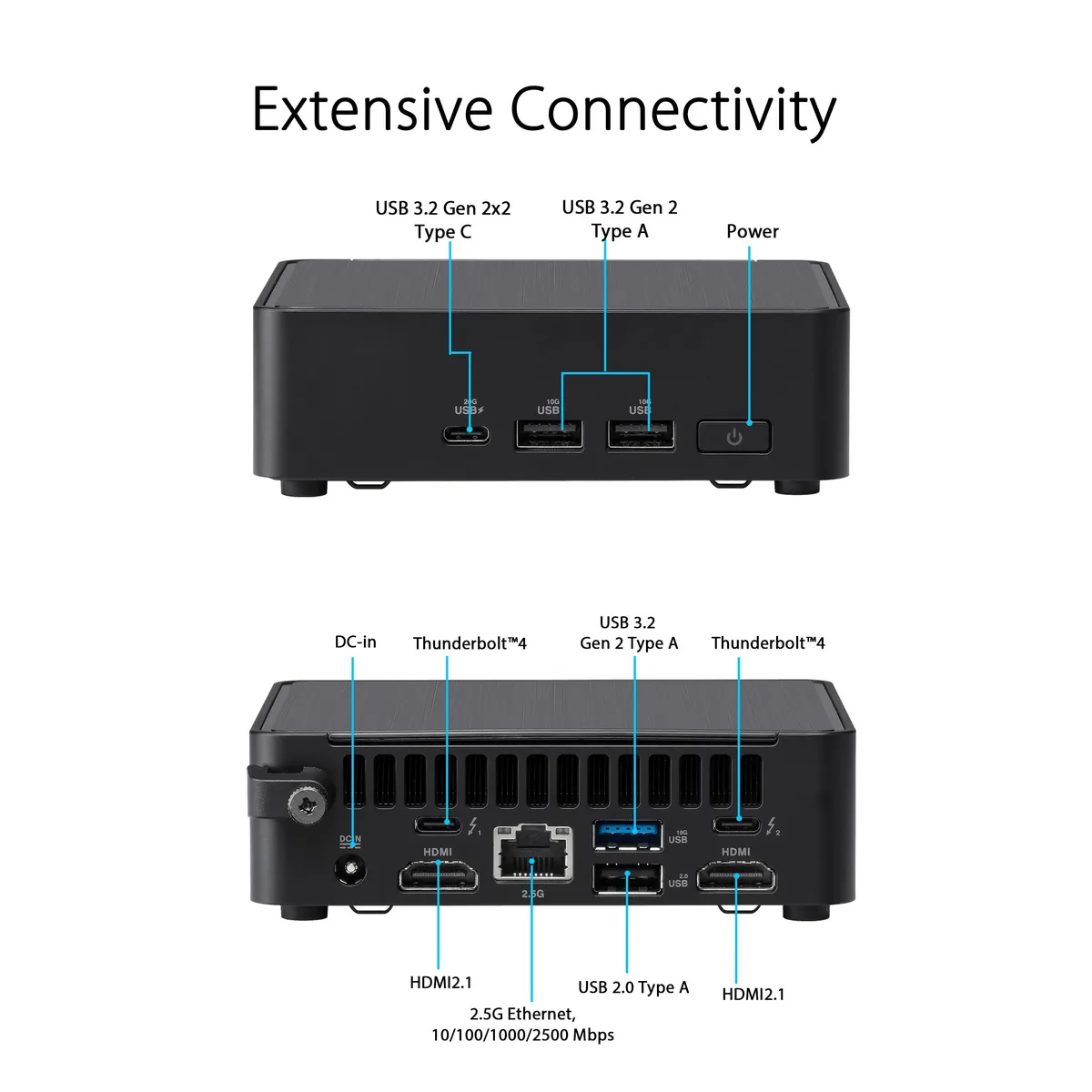

One M.2 2280 PCIe Gen4 x4 slot and one M.2 2242 PCIe x4 slot provide primary and secondary NVMe storage. Connectivity includes two Thunderbolt 4 Type-C ports, one USB 3.2 Gen 2×2 Type-C port, three USB 3.2 Gen 2 Type-A ports, one USB 2.0 Type-A port, two HDMI 2.1 TMDS outputs, 2.5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.3. A 120 W 19 V adapter is included and the unit accepts 12 V to 20 V DC input.

Points forts

  • 14-core Core Ultra 5 125H with NPU for AI workloads
  • Intel Arc graphics at 2.2 GHz for visual tasks
  • DDR5-5600 dual-channel support up to 96 GB
  • Wi-Fi 6E AX211 plus Bluetooth 5.3 built in
  • Dual Thunderbolt 4 and HDMI 2.1 for quad displays

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVKU5
ColorBlack
Form FactorSlim
CPU TypeIntel Core Ultra 5
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How does the Core Ultra 5 125H with 14 cores and 18 threads perform in a compact chassis?

The 14-core, 18-thread processor reaches 4.50 GHz boost while the integrated NPU handles AI tasks such as video-background effects at low power, fitting within the 117 x 112 x 37 mm slim enclosure.

What display bandwidth do the two HDMI 2.1 (TMDS) ports and two Thunderbolt 4 ports actually provide?

Both HDMI 2.1 ports run TMDS signalling and each Thunderbolt 4 port carries DisplayPort alt-mode, together driving up to four displays from the Arc graphics running at 2.2 GHz.

What physical mounting options and clearance does the 37 mm tall chassis need?

The unit includes VESA mounting hardware for the 117 x 112 mm footprint and requires only the 37 mm height plus space for the 120 W 19 V adapter and its US power cord.
