Small black and silver square desktop mini PC

Intel

Intel NUC6i5SYH barebone mini PC i5-6260U 16GB 512GB SSD

SKU CH-4C63-4DQQE MPN NUC6i5SYH

A compact mini PC with a dual-core i5-6260U up to 2.9 GHz, 16 GB DDR4, 512 GB SSD, Iris Graphics 540, MiniDP, HDMI, Wifi 5 and Bluetooth 4.2

  • TypeStudent / Home Office
  • Form FactorSoDIMM
  • UsageBusiness
  • ColorBlack/Silver
  • ProcessorIntel Dual-Core i5-6260U 1.8GHz Upto 2.9GHz
  • Processor Main FeaturesDual-Core Processor
  • Dual-core i5-6260U up to 2.9 GHz for responsive everyday computing
  • 16 GB DDR4 memory handles multitasking smoothly
  • 512 GB SSD provides fast boot and app loading
  • MiniDP and HDMI outputs drive dual 4K displays via Iris Graphics 540
  • Wifi 5 and Bluetooth 4.2 give reliable wireless connectivity

Compact desktop for home office and study

The Intel NUC6i5SYH is a barebone mini PC built around a dual-core i5-6260U processor with a base frequency of 1.8 GHz and a maximum turbo of 2.9 GHz. It ships with 16 GB of DDR4 memory and a 512 GB SSD, plus Windows 10 Pro pre-installed. The system targets students and home-office users who need a small, quiet computer for everyday productivity.

Dual video outputs and wired networking

Graphics are handled by integrated Intel Iris Graphics 540 driving one MiniDP and one HDMI port for dual-monitor setups. Wired networking uses a 10/100/1000 Mbps Ethernet controller, while wireless relies on Wifi 5 and Bluetooth 4.2. The 65 W power adapter supplies the unit, and the chassis provides four USB 3.0 ports plus a 3-in-1 card reader.

Memory ceiling and storage form factor

Two SODIMM slots support up to 32 GB of DDR4 at 2400 MT/s, so the installed 16 GB can be doubled but not exceeded. The 512 GB SSD occupies the primary storage bay; buyers who want more capacity must verify the physical drive format themselves. The platform does not support discrete graphics or additional internal drive bays.

Points forts

  • Dual-core i5-6260U up to 2.9 GHz for responsive everyday computing
  • 16 GB DDR4 memory handles multitasking smoothly
  • 512 GB SSD provides fast boot and app loading
  • MiniDP and HDMI outputs drive dual 4K displays via Iris Graphics 540
  • Wifi 5 and Bluetooth 4.2 give reliable wireless connectivity

Caractéristiques

BrandIntel
ModelNUC6i5SYH
TypeStudent / Home Office
Form FactorSoDIMM
UsageBusiness
ColorBlack/Silver
ProcessorIntel Dual-Core i5-6260U 1.8GHz Upto 2.9GHz
Processor Main FeaturesDual-Core Processor
Cache Per Processor4 MB
Memory16 GB DDR4
Storage512GB SSD
GraphicsIntel Iris Graphics 540
AudioHigh Definition Audio
EthernetEthernet
Wireless CardWifi 5 (802.11ac)
Power Supply65 Watt
MonitorMonitor not included
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6260U
L2 Cache Per CPU4 MB
L3 Cache Per CPU4 MB
CPU Main FeaturesDual-Core Processor
GPU/VGA TypeIntel Iris Graphics 540
GPU MemoryShared system memory
Graphics CardIntel Iris Graphics 540
Memory Capacity16GB DDR4
Memory SpeedDDR4 2400
Memory Spec8 GB x 2
Memory Slot (Total)2
Memory Slot (Available)0
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Storage Spec512GB SSD
Screen SizeNo Screen
LAN Speed10/100/1000Mbps
WLANWifi 5 (802.11ac)
BluetoothBluetooth 4.2

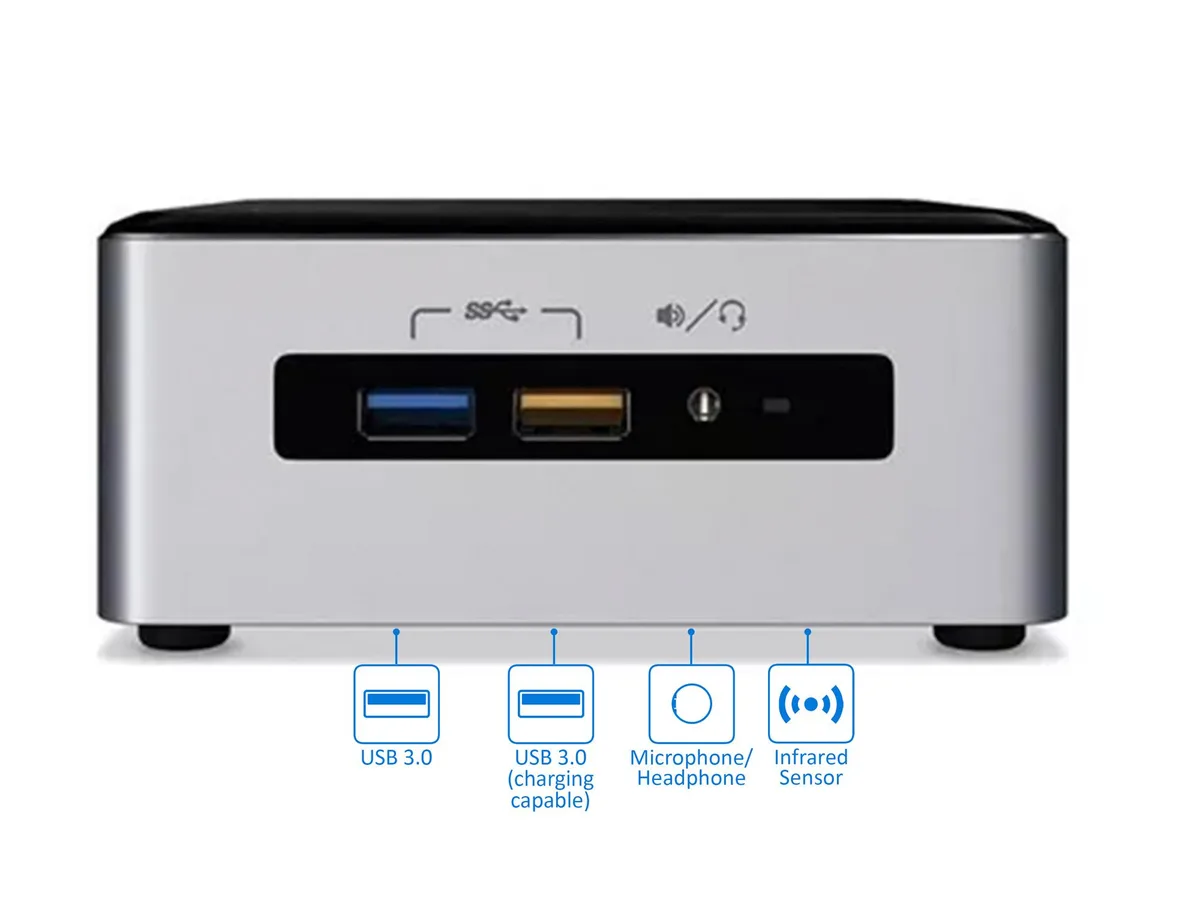

Front USB2 x USB 3.0
Front Audio Ports1 x Headphone/Microphone Combo Jack
Card Reader3-in-1

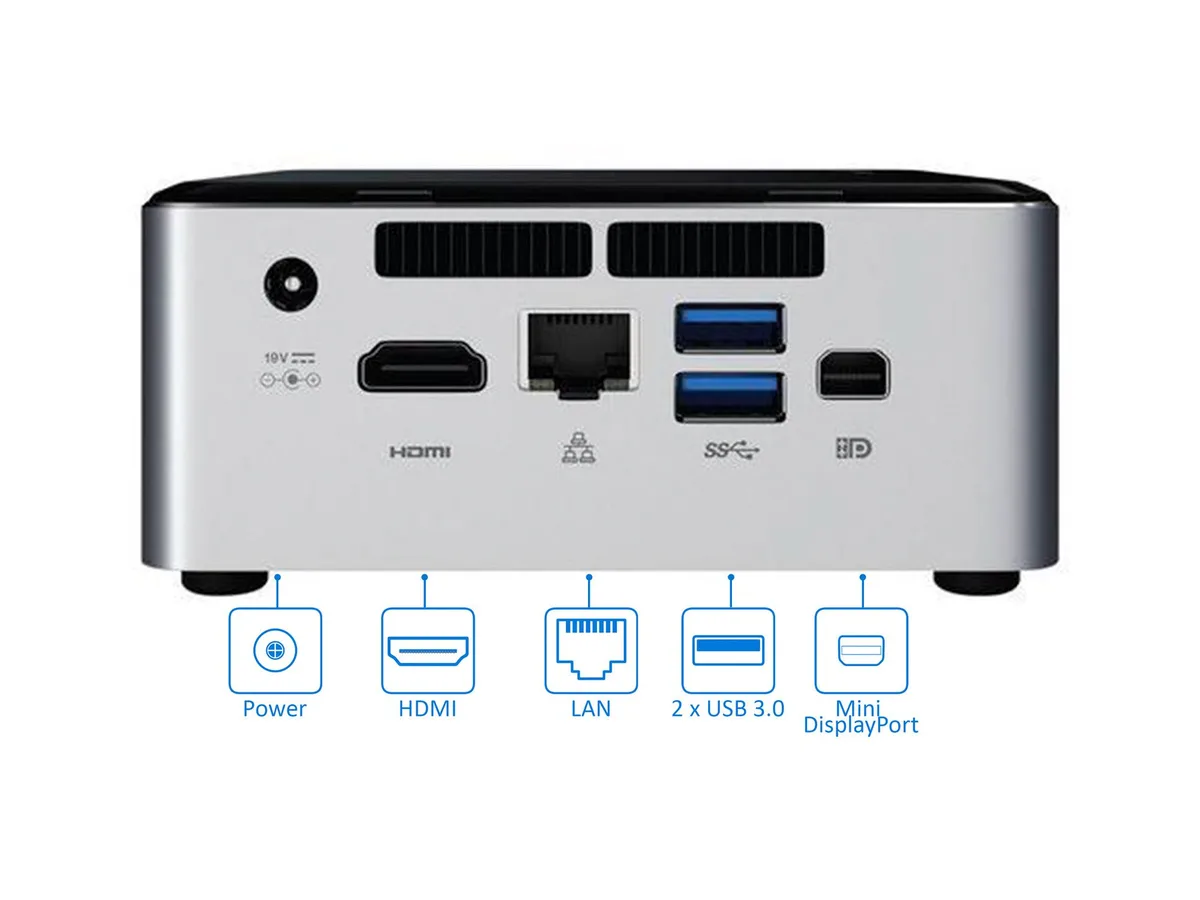

Video PortsMiniDP, HDMI
Rear USB2 x USB 3.0
RJ451 port
Dimensions (H x W x D)4 x 4 x 2
Weight3
Package TypeRetail

Questions sur cet article

Should I pick the 16 GB DDR4 configuration or add more memory up to the 32 GB limit?

The unit ships with 16 GB DDR4 at 2400 MT/s across two SODIMM slots; the board supports a maximum of 32 GB, so you can upgrade later if your workloads need more headroom.

What does the 2.9 GHz maximum turbo frequency mean for everyday performance?

The i5-6260U runs at a 1.8 GHz base and can boost to 2.9 GHz on short bursts, giving snappy response for office apps and web browsing while staying within the 65 W power adapter.

Does the 802.11ac Wifi 5 wireless card limit my network speed in practice?

Wifi 5 caps real-world throughput well below the 1000 Mbps wired LAN port, so for large file transfers or low-latency work a wired connection will be noticeably faster.
