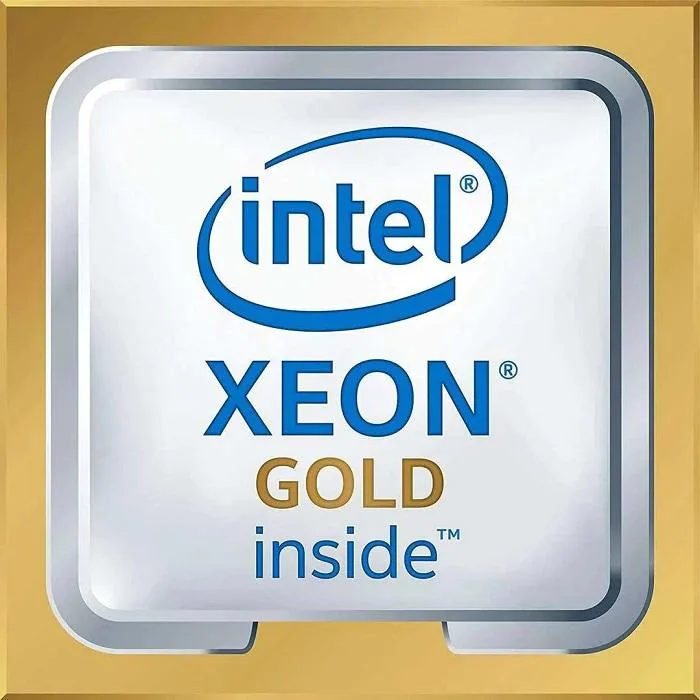

Silver square LGA-4677 server CPU with gold contacts and integrated heat spreader

Intel

Intel PK8071305120401 Xeon Gold 5412U 24-core 2.1 GHz server processor

SKU CH-4SH0-GW0S8 MPN PK8071305120401

24-core server processor with 48 threads, 45 MB L3 cache, 2.1 GHz base and 3.9 GHz turbo speeds, supporting DDR5-4400 memory and PCIe 5.0

  • NameXeon Gold 5412U
  • CPU Socket TypeLGA 4677
  • Core NameSapphire Rapids
  • # of Cores24-Core
  • # of Threads48
  • Operating Frequency2.1 GHz
  • 24 cores and 48 threads handle parallel workloads efficiently
  • 1 GHz base with 3.9 GHz max turbo adapts to demand
  • 45 MB L3 cache keeps frequent data close
  • DDR5 4400 support across 8 channels feeds memory-hungry tasks
  • PCIe 5.0 and 80 lanes connect high-speed storage and accelerators

Server processor for single-socket platforms

The Intel Xeon Gold 5412U is a 24-core, 48-thread server CPU built on 10 nm Sapphire Rapids silicon. It targets single-socket systems that need high thread counts and large memory capacity without multi-socket complexity.

185 W base power with DDR5 4400 support

The processor carries a 185 W thermal design power and integrates an eight-channel DDR5 4400 memory controller. In normal operation the chip runs at 2.1 GHz base frequency and can reach 3.9 GHz maximum turbo frequency across its cores.

1S-only scalability limits deployment options

This model supports single-socket configurations only, so it cannot be used in dual-socket or larger scale-up servers. The 80 PCI Express 5.0 lanes and 45 MB L3 cache remain available within that single-socket constraint.

Points forts

  • 24 cores and 48 threads handle parallel workloads efficiently
  • 1 GHz base with 3.9 GHz max turbo adapts to demand
  • 45 MB L3 cache keeps frequent data close
  • DDR5 4400 support across 8 channels feeds memory-hungry tasks
  • PCIe 5.0 and 80 lanes connect high-speed storage and accelerators

Caractéristiques

BrandIntel
SeriesIntel Xeon Gold
NameXeon Gold 5412U
ModelPK8071305120401
CPU Socket TypeLGA 4677
Core NameSapphire Rapids
# of Cores24-Core
# of Threads48
Operating Frequency2.1 GHz
Max Turbo Frequency3.9 GHz
L3 Cache45MB
64-Bit SupportYes
Manufacturing Tech10 nm
Integrated Memory Controller SpeedDDR5 4400
Maximum Memory Capacity4TB
Memory Channel8 Channel
Virtualization Technology SupportYes
Scalability1S Only
PCI Express Revision5.0
Max # of PCI Express Lanes80
Multimedia InstructionIntel AMX, Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Thermal Design Power185W
Cooling DeviceCooling device not included - Processor Only
Poids d’expédition0.91 kg
Dimensions du colis25 × 25 × 25 mm

Questions sur cet article

How do I install this LGA 4677 socket processor and which step is most often done incorrectly?

Align the notches on the CPU with the socket keys, lower it straight down without force, then close the retention lever until it clicks; the step most often missed is verifying the lever is fully latched before applying thermal paste.

What maintenance or replacement will this 185 W Xeon Gold 5412U need over its service life?

Plan to replace the thermal interface material every two to three years and inspect the heatsink fan for dust buildup; the processor itself has no user-serviceable parts and does not require scheduled replacement.

What limit appears first when all 24 cores run sustained workloads at 2.1 GHz?

The 185 W thermal design power is the first constraint; the cooling solution must dissipate that heat continuously or the CPU will throttle below its base frequency.
