Intel

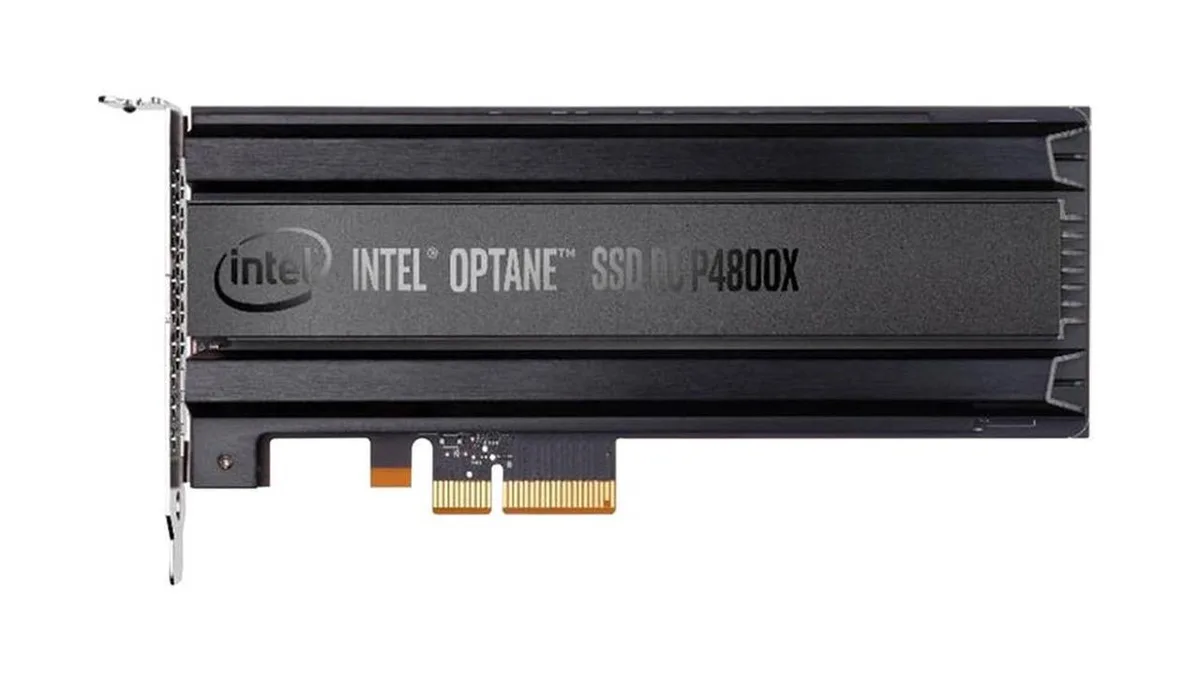

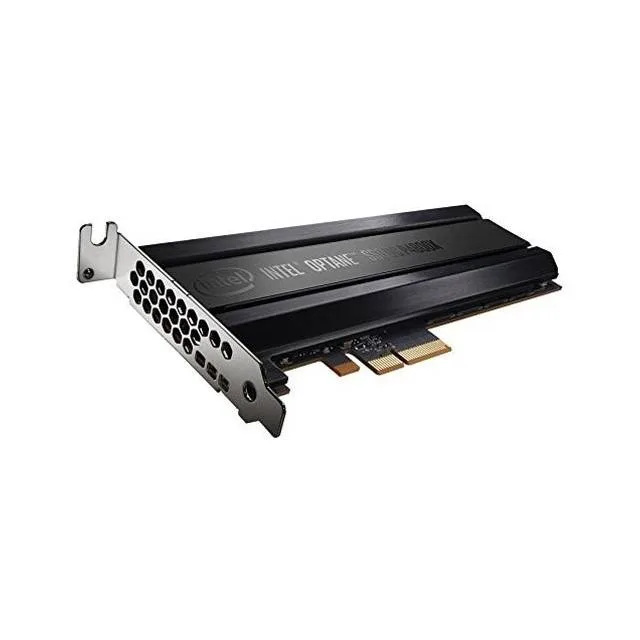

Intel SSDPED1K750GA01 Optane DC P4800X 750GB enterprise SSD
AIC enterprise SSD with 3D XPoint memory, PCIe 3.0 x4 interface, 2500 MB/s read, 2200 MB/s write, 10 µs latency, 30 DWPD endurance and AES 256-bit encryption
- Form FactorAIC
- Memory Components3D XPoint
- InterfacePCI-Express 3.0 x4
- Max Sequential ReadUp to 2500 MBps
- Max Sequential WriteUp to 2200 MBps
- Read Latency10 µs
- 3D XPoint media delivers 10 µs latency for responsive workloads
- PCI-Express 3.0 x4 interface provides up to 2500 MB/s read throughput
- 30 DWPD endurance rating supports heavy write cycles
- AES 256-bit hardware encryption protects stored data
- 2,000,000 hour MTBF ensures long-term reliability
What it is
The Intel Optane DC P4800X is a 750 GB enterprise add-in card that uses 3D XPoint memory and a PCI Express 3.0 x4 interface. It delivers up to 2500 MBps sequential read and 2200 MBps sequential write with 10 µs read and write latency, backed by AES 256-bit hardware encryption and enhanced power-loss data protection.
Who it suits
This drive fits write-heavy server workloads that demand 30 DWPD endurance and 41.0 PBW lifetime writes, supported by a 2,000,000-hour MTBF and temperature monitoring from 0 °C to 70 °C. Buyers who need a 2.5-inch form factor or a different capacity should look at other models.
Deciding specification
The PCI Express 3.0 x4 add-in-card interface dictates whether this SSD can be installed; the system must provide a compatible half-height slot and support the drive’s power and thermal requirements.
Points forts
- 3D XPoint media delivers 10 µs latency for responsive workloads
- PCI-Express 3.0 x4 interface provides up to 2500 MB/s read throughput
- 30 DWPD endurance rating supports heavy write cycles
- AES 256-bit hardware encryption protects stored data
- 2,000,000 hour MTBF ensures long-term reliability
Caractéristiques
| Brand | Intel |
|---|---|
| Series | Optane SSD DC P4800X |
| Model | SSDPED1K750GA01 |
| Form Factor | AIC |
| Memory Components | 3D XPoint |
| Interface | PCI-Express 3.0 x4 |
| Max Sequential Read | Up to 2500 MBps |
| Max Sequential Write | Up to 2200 MBps |
| Read Latency | 10 µs |
| Write Latency | 10 µs |
| Endurance | 30 DWPD |
| MTBF | 2,000,000 hours |
| Features | Endurance Rating (Lifetime Writes): 41.0 PBW Enhanced Power Loss Data Protection: Yes Hardware Encryption: AES 256-bit ?High Endurance Technology (HET): Yes Temperature Monitoring and Logging: Yes End-to-End Data Protection: Yes |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 50G, 170 in/s, trapezoidal |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS |
| Poids d’expédition | 0.91 kg |
| Dimensions du colis | 254 × 203 × 152 mm |
Questions sur cet article
How do I install the AIC card and which step is often missed?
Insert the half-height PCIe 3.0 x4 card into a compatible slot, secure the retention bracket, then enable the Intel Optane DC P4800X in the system BIOS so the OS can see the 750 GB volume.
What maintenance or replacement will the drive need later?
The 3D XPoint media is rated for 30 DWPD and 41.0 PBW total writes; after 41984 TB written the endurance limit is reached and the drive should be replaced.
What limit appears first during sustained heavy writes?
Sequential write throughput caps at 2200 MBps and write latency stays at 10 µs, so the PCIe 3.0 x4 interface bandwidth becomes the bottleneck before the 30 DWPD endurance rating is exhausted.
