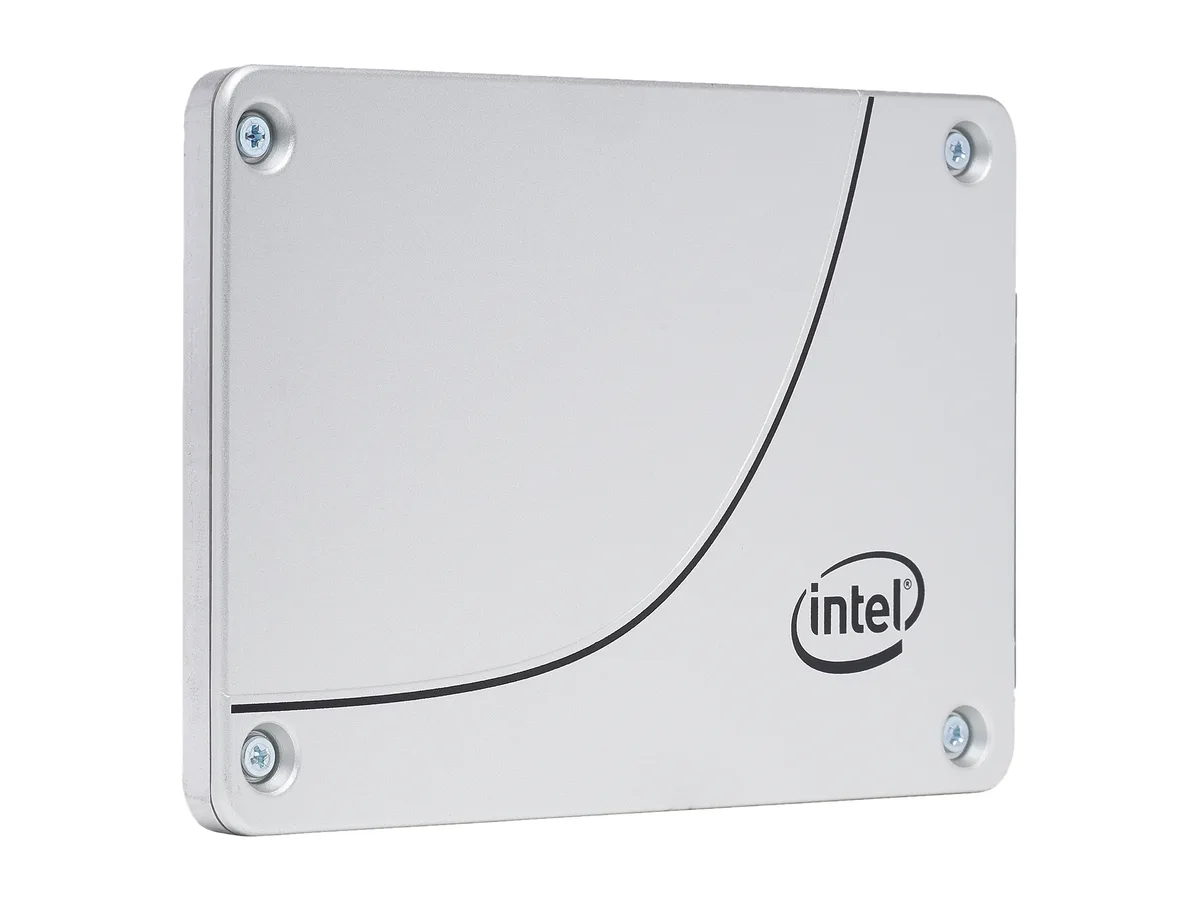

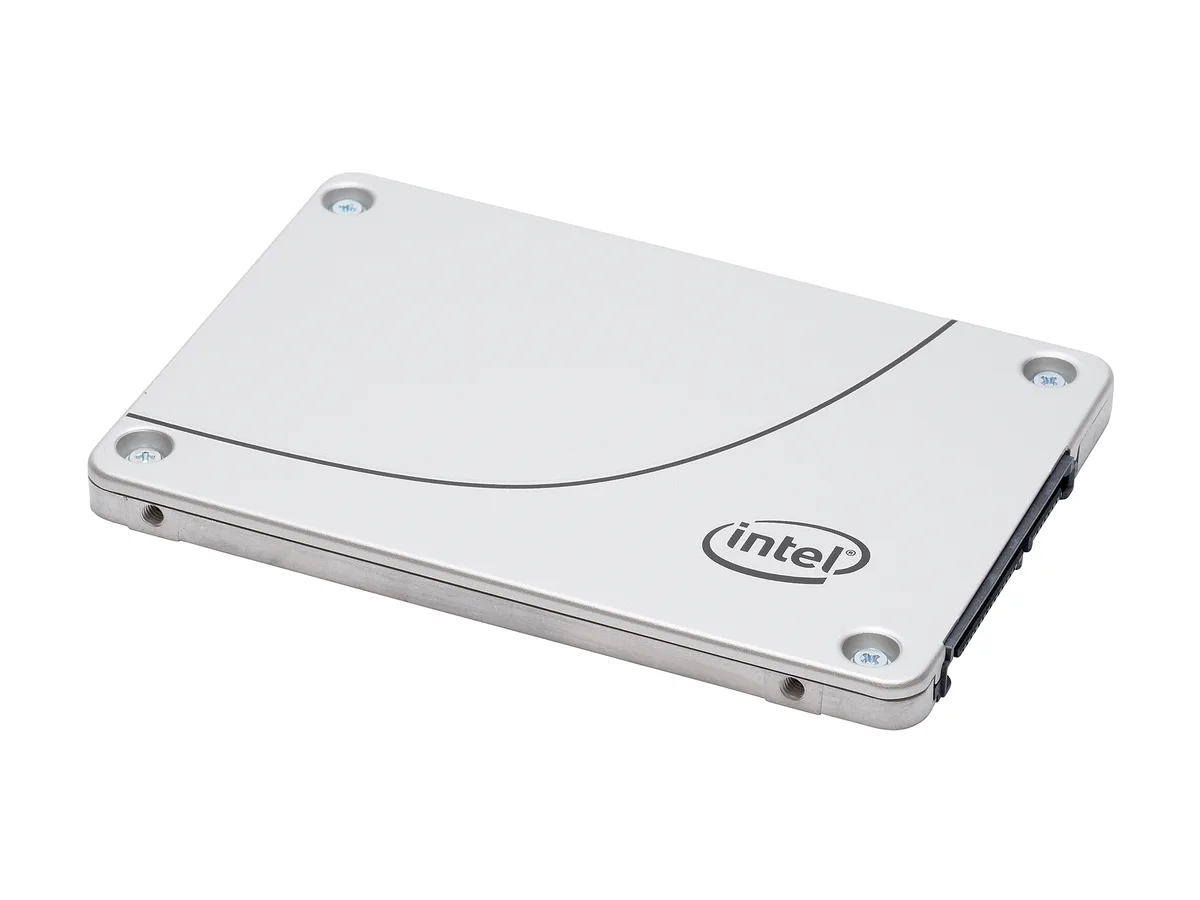

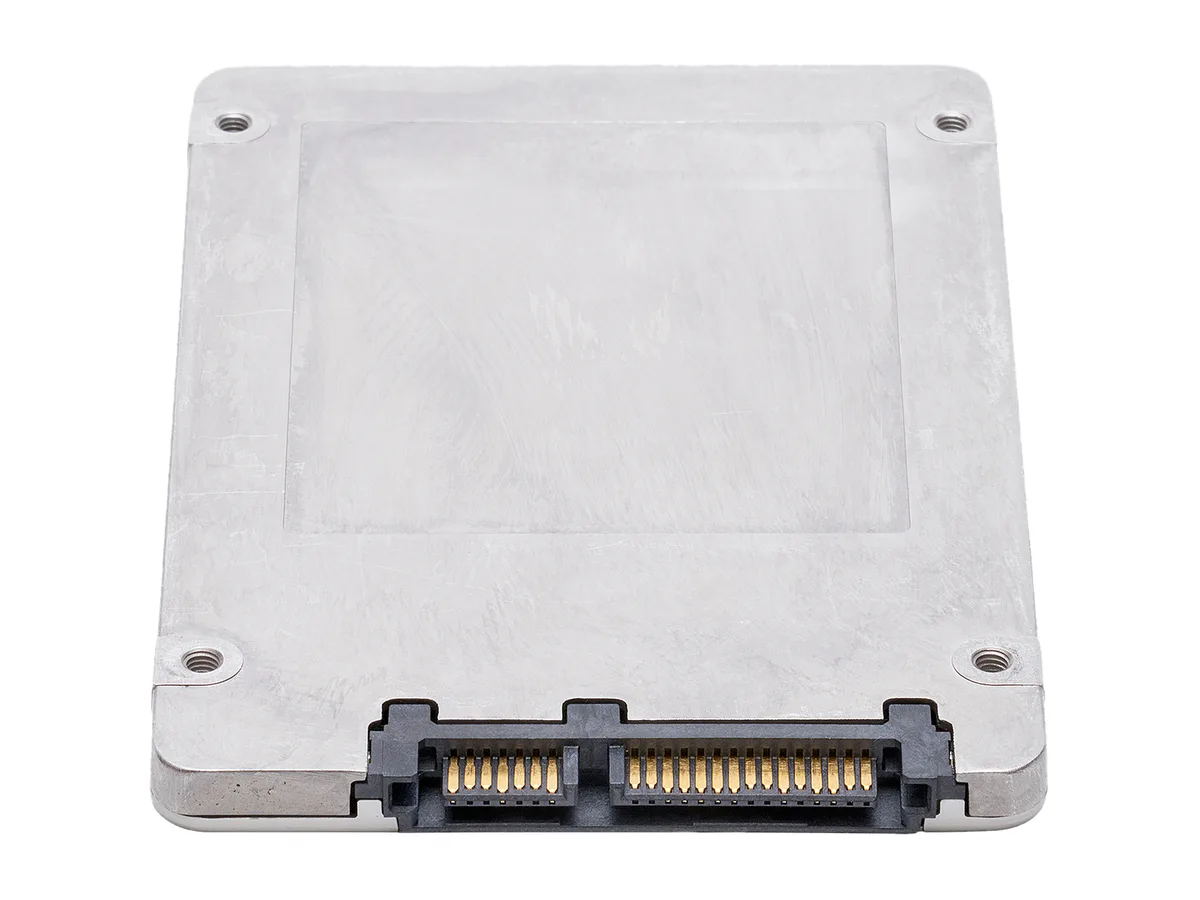

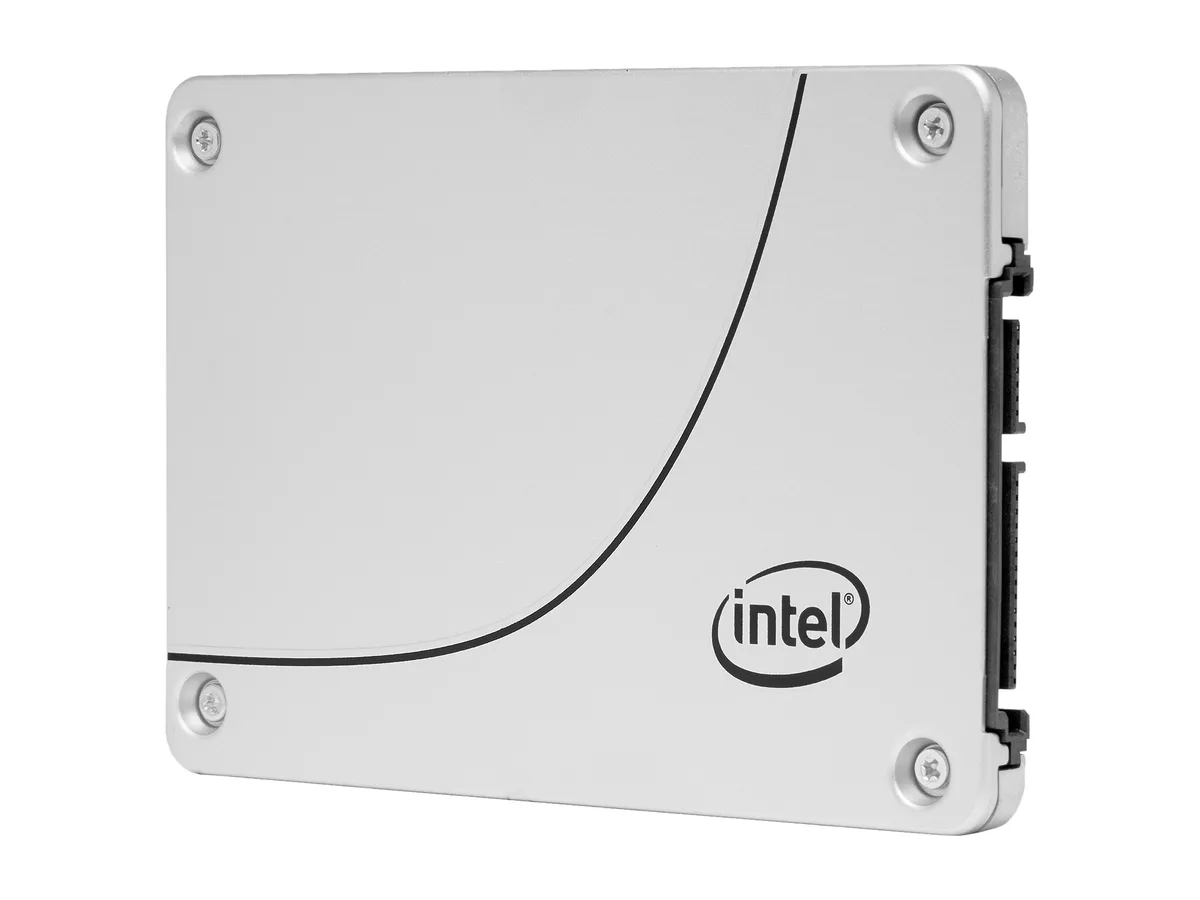

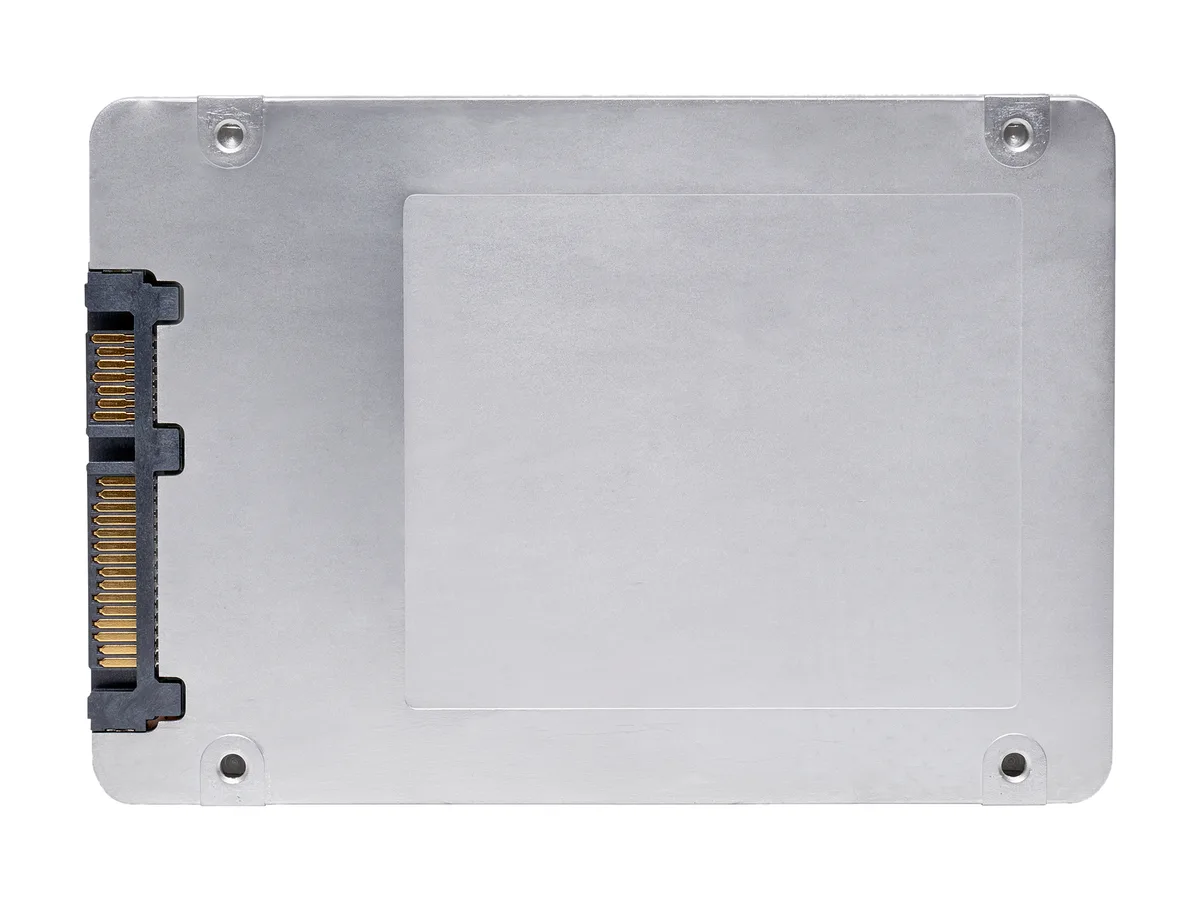

Silver rectangular 2.5 inch SATA enterprise SSD with label showing Intel DC S3520 240GB

Intel

Intel SSDSC2BB240G701 DC S3520 240GB 2.5" SATA enterprise SSD

SKU CH-6469-DV0M5 MPN SSDSC2BB240G701

2.5-inch SATA enterprise SSD with MLC memory delivering 320 MBps reads, 300 MBps writes, 65,000 random read IOPS and 1.0 DWPD endurance for read-intensive workloads

  • Form Factor2.5"
  • Capacity240GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 320 MBps
  • Max Sequential WriteUp to 300 MBps

Options 240GB

  • 1.6TB
  • 480GB
  • 240GB
  • 150GB

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Enterprise-grade reliability with 2,000,000 hours MTBF
  • Consistent read performance up to 65,000 random 4KB IOPS
  • Power-efficient operation at 0.5W idle and 2.8W active
  • High endurance at 1.0 DWPD for read-intensive workloads
  • 5-inch SATA III form factor fits standard server bays

Intel DC S3520 240GB SATA SSD

The Intel DC S3520 240GB SATA SSD is an enterprise-grade drive built for read-intensive data centre workloads. It uses MLC 3D NAND and a 2.5-inch form factor with a SATA III interface. The drive targets boot, web serving, and light database tasks where consistent latency matters.

Check SATA power and bay compatibility

Verify that your server or array has a free 2.5-inch drive bay and a SATA power connector. The drive draws 0.5W idle and 2.8W active, so the backplane must supply enough current. Confirm the controller supports SATA III speeds and that firmware is current for enterprise drives.

Efficiency gains over the DC S3510 series

Compared to the DC S3510 series, this model uses 15% less idle power and 30% less active write power. The efficiency improvement reaches +35% performance per watt. Endurance is rated at 1.0 DWPD with a 2,000,000-hour MTBF, and the drive operates from 0°C to +70°C.

Points forts

  • Enterprise-grade reliability with 2,000,000 hours MTBF
  • Consistent read performance up to 65,000 random 4KB IOPS
  • Power-efficient operation at 0.5W idle and 2.8W active
  • High endurance at 1.0 DWPD for read-intensive workloads
  • 5-inch SATA III form factor fits standard server bays

Caractéristiques

BrandIntel
SeriesDC S3520
ModelSSDSC2BB240G701
Form Factor2.5"
Capacity240GB
Memory ComponentsMLC
InterfaceSATA III
Max Sequential ReadUp to 320 MBps
Max Sequential WriteUp to 300 MBps
4KB Random ReadUp to 65,000 IOPS
4KB Random WriteUp to 16,000 IOPS
Read Latency40µs
Write Latency42µs
MTBF2,000,000 hours
FeaturesExcellent efficiency across power states (compared to DC S3510 Series)
- 15% lower idle power
- 30% lower active write power
- +35% performance/watt (compared to DC S3510 Series)
Increased endurance at 1.0 DWPD, suitable for a broad range of applications
Low latency
Form factors - 2.5" and M.2 (80mm) with increased capacities
Power Consumption (Idle)0.5W
Power Consumption (Active)2.8W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Height7.00mm
Weight2.19 oz.
Poids d’expédition0.09 kg
Dimensions du colis150 × 109 × 23 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the Intel DC S3520 240GB include a mounting bracket or cables, or must they be purchased separately?

The drive ships as a bare 2.5" SATA unit; brackets, screws and data cables are not included and must be sourced separately.

Which capacity of the S3520 series suits a read-intensive boot or web-server workload?

The 240GB model offers 1.0 DWPD endurance and 65,000 random read IOPS, matching typical boot and web-tier requirements.

What does the 320 MBps sequential read figure mean when the drive is installed in a server?

In a SATA 6 Gbps backplane the drive can sustain up to 320 MBps sequential reads, with 40 µs read latency and 2.8 W active power draw.
