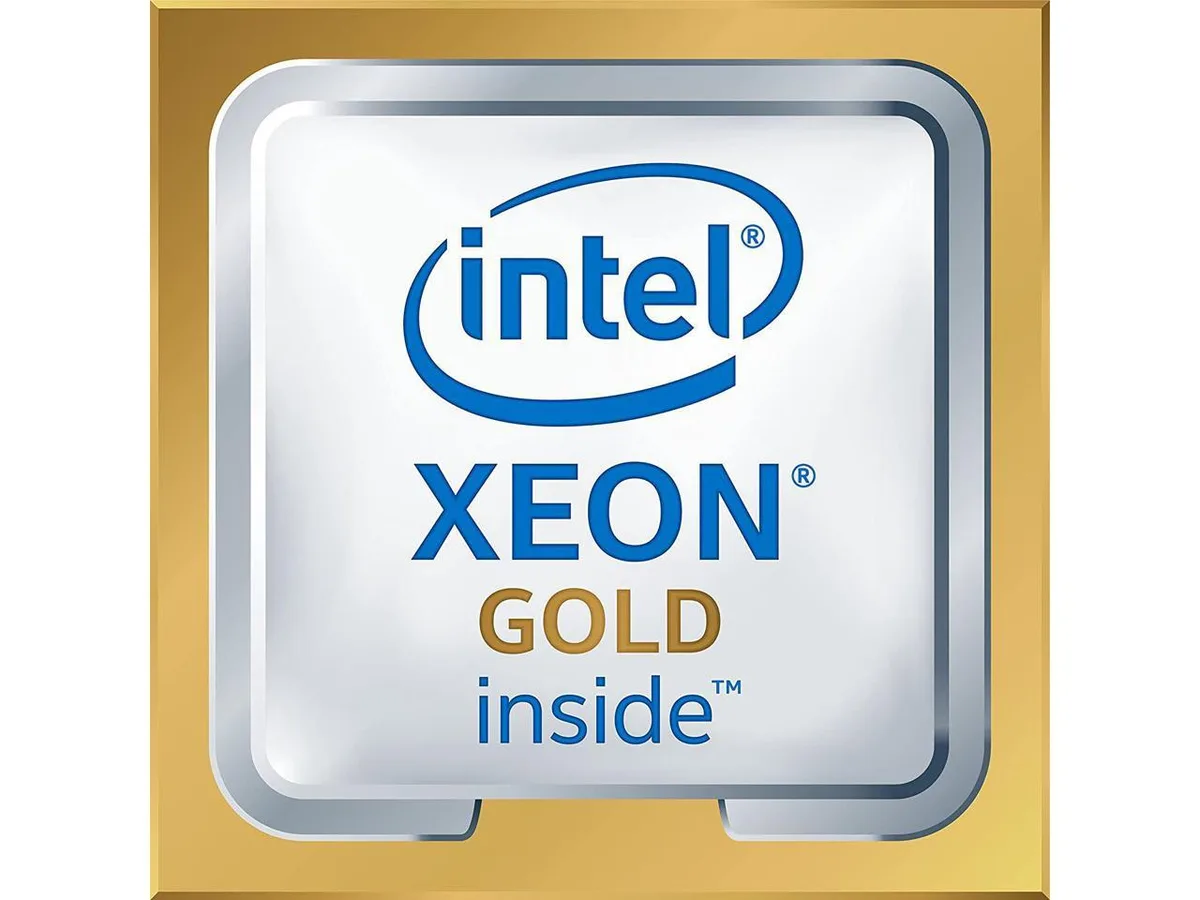

Intel Xeon Gold 5317 server processor, silver heatspreader, LGA 4189 socket, new condition

Intel

Intel Xeon Gold 5317 12-Core 3.0 GHz LGA 4189 150W CD8068904657302 Server Processor

SKU CH-1RQ1-HX0E1 MPN CD8068904657302

A 12-core, 24-thread server CPU running at 3.0 GHz with 18 MB L3 cache, 8-channel DDR4-2933 support and 64 PCIe 4.0 lanes in a 150 W LGA 4189 package

  • NameXeon Gold 5317
  • CPU Socket TypeLGA 4189
  • Core NameIce Lake
  • # of Cores12-Core
  • # of Threads24
  • Operating Frequency3.0 GHz
  • 12 cores and 24 threads accelerate parallel workloads
  • 0 GHz base and 3.60 GHz turbo boost single-thread speed
  • 18 MB L3 cache keeps hot data close to cores
  • Eight-channel DDR4 2933 controller feeds memory-intensive apps
  • 64 PCIe 4.0 lanes expand I/O bandwidth for storage and networking

Purpose-built Server Processor

The Intel Xeon Gold 5317 is a 12-core, 24-thread server CPU built on 10 nm Ice Lake architecture for LGA 4189 platforms. It runs at a 3.0 GHz base frequency with a 3.60 GHz max turbo and provides 18 MB of L3 cache within a 150 W thermal design power envelope. The processor supports eight-channel DDR4-2933 memory and 64 lanes of PCI Express 4.0 connectivity.

Suited for Balanced Multi-threaded Workloads

This chip targets virtualisation hosts, database nodes and compute clusters that need high core density and memory bandwidth without stepping up to higher-core-count SKUs. It is less appropriate for workloads that prioritise single-thread speed over thread count, or for builds that require a lower TDP to fit constrained cooling or power budgets.

Deciding Specification — 150 W TDP

The 150 W thermal design power determines the cooling solution and power-delivery capacity the motherboard and chassis must provide. Verify that your server platform can sustain this heat load before selecting this processor.

Points forts

  • 12 cores and 24 threads accelerate parallel workloads
  • 0 GHz base and 3.60 GHz turbo boost single-thread speed
  • 18 MB L3 cache keeps hot data close to cores
  • Eight-channel DDR4 2933 controller feeds memory-intensive apps
  • 64 PCIe 4.0 lanes expand I/O bandwidth for storage and networking

Caractéristiques

BrandIntel
SeriesIntel Xeon Gold
NameXeon Gold 5317
ModelCD8068904657302
CPU Socket TypeLGA 4189
Core NameIce Lake
# of Cores12-Core
# of Threads24
Operating Frequency3.0 GHz
Max Turbo Frequency3.60 GHz
L3 Cache18MB
64-Bit SupportYes
Hyper-Threading SupportYes
Manufacturing Tech10 nm
Integrated Memory Controller SpeedDDR4 2933
Memory Channel8 Channel
Virtualization Technology SupportYes
PCI Express Revision4.0
Max # of PCI Express Lanes64
Thermal Design Power150W
Poids d’expédition0.09 kg
Dimensions du colis116 × 101 × 44 mm

Questions sur cet article

How much heat does the 150W TDP generate under sustained load?

The processor has a 150W thermal design power, so sustained workloads will require a server-class cooler rated for at least that heat output.

Which memory modules are needed for the 8-channel DDR4 2933 controller?

You must populate eight DDR4-2933 DIMMs, one per channel, to run the integrated memory controller at its rated speed.

Will the 64 PCIe 4.0 lanes work with existing PCIe 3.0 add-in cards?

Yes, the 64 PCI Express 4.0 lanes are backward compatible and will operate PCIe 3.0 cards at their native 3.0 speeds.
