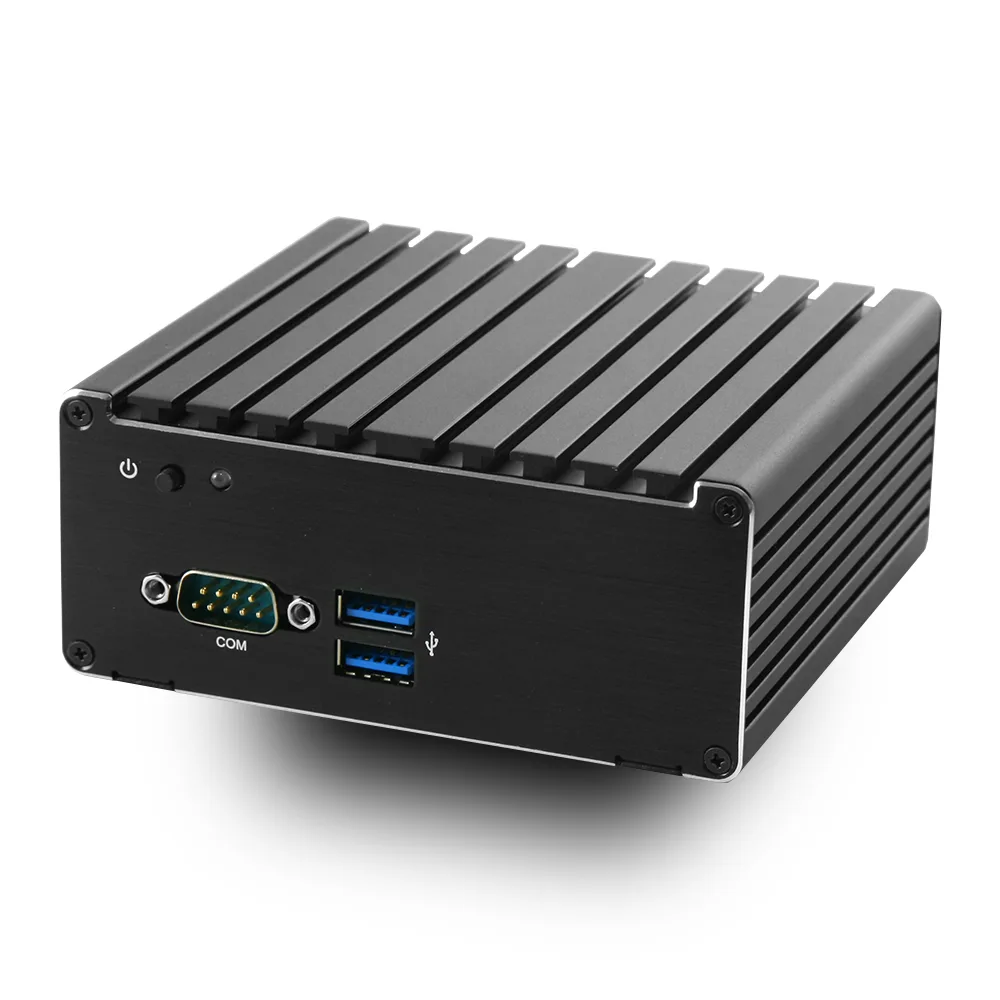

Small black fanless mini PC barebone with aluminum alloy chassis

JETWAY

JETWAY HBJC313U591W-3160B barebone mini PC

SKU CH-Y6NN-VADMY MPN HBJC313U591W-3160B

Fanless Intel Celeron N3160 quad-core barebone with dual Gigabit LAN, three-display support up to 3840 x 2160, Wi-Fi 802.11 b/g/n and Bluetooth 4.0, taking one DDR3L SO-DIMM to 8 GB

  • ColorBlack
  • CPU TypeFanless Intel Celeron N3160 SoC, 1.60GHz - 2.24GHz Burst, Qu
  • Memory installedNo Memory
  • Memory slot1 x 204Pin SO-DIMM
  • Memory Type SupportedDDR3L 1600/1333
  • Max Memory Supported8GB
  • Fanless operation from a 6 W quad-core SoC
  • Three independent displays via two HDMI 1.4b and one DisplayPort 1.1
  • Dual Intel I211-AT Gigabit LAN ports for wired redundancy
  • DDR3L SO-DIMM slot supports up to 8 GB memory
  • Built-in 802.11b/g/n Wi-Fi and Bluetooth 4.0

Fanless N3160 barebone for embedded tasks

The JETWAY HBJC313U591W-3160B is a compact barebone mini PC built around a fanless Intel Celeron N3160 quad-core SoC with a 6 W TDP. It ships without memory or storage, leaving the integrator to add a single DDR3L SO-DIMM up to 8 GB and an mSATA or mini PCIe drive. An aluminium chassis doubles as a silent heatsink.

Suits kiosk and signage builders needing triple

This unit fits digital-signage, thin-client or light industrial deployments that require three independent screens via two HDMI 1.4b ports and one DisplayPort 1.1 connection. Dual Intel I211-AT Gigabit LAN, 802.11b/g/n Wi-Fi and Bluetooth 4.0 cover wired and wireless networking. Buyers who need fan-cooled performance, more than 8 GB of RAM, or modern wireless standards should consider other platforms.

Single DDR3L SO-DIMM slot caps memory at 8 GB

Only one 204-pin SO-DIMM socket is provided, so the maximum installable memory is 8 GB of DDR3L 1600/1333. That hard limit determines whether the platform can handle the intended workload before purchase.

Points forts

  • Fanless operation from a 6 W quad-core SoC
  • Three independent displays via two HDMI 1.4b and one DisplayPort 1.1
  • Dual Intel I211-AT Gigabit LAN ports for wired redundancy
  • DDR3L SO-DIMM slot supports up to 8 GB memory
  • Built-in 802.11b/g/n Wi-Fi and Bluetooth 4.0

Caractéristiques

BrandJetway
ModelHBJC313U591W-3160B
ColorBlack
CPU TypeFanless Intel Celeron N3160 SoC, 1.60GHz - 2.24GHz Burst, Quad-Core, 6W TDP, with AES-NI support
Memory installedNo Memory
Memory slot1 x 204Pin SO-DIMM
Memory Type SupportedDDR3L 1600/1333
Max Memory Supported8GB
Storage InstalledNo Hard Drive
Integrated GraphicsIntel HD Graphics
Onboard AudioRealtek ALC662VD
LAN2 x Intel I211-AT PCI-E Gigabit LAN
Max LAN SpeedDual 1Gbps
Wireless LAN802.11b/g/n
BluetoothBluetooth 4.0
Front USB2 x USB 3.0
Other Front Ports1 x Power Button1 x Power LED1 x RS232/422/485 COM port
HDMI2 x HDMI 1.4b (1920 x 1080 @ 60Hz)
DisplayPort1 x Display Port 1.1 (upto 2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz)
Rear USB2 x USB 3.0
RJ452
Rear Audio Ports1 x Line out / MIC in Combo Jack
Other Rear Ports1 x +12V 2.5mm Diameter DC-In Power Jack2 x SMA Connector for WiFi Antenna1 x Kensington Lock Hole
Power SupplyAdapter: AC_90~240V / DC_12V/40W
Dimensions1.93" x 4.57" x 4.33"
MaterialLightweight aluminum alloy with extruded aluminum IO panel
FeaturesINTEL Braswell N3150 SoC ProcessorEmbedded Long-life Series, Planned Lifecycle Through Q4'2020Supports 2 x HDMI and 1 x DP for 3 Independent Display12V DC-In & 2 x LANECO-design for EuP/ErP
PackagingStandard Accessory:- 40W AC Adapter x 1- Power Cord x 1- Screw pack x 1- DVD Disk x 1- Manual x 1- Wall / VESA / Din Rail Mount Bracket- Din Rail Clip- WIFI antenna (with HBJC313U591W-3150 model)

Questions sur cet article

Should I choose the 8 GB DDR3L limit or a lower capacity for this barebone?

The board accepts one 204-pin SO-DIMM up to 8 GB of DDR3L at 1600 or 1333 MT/s; 8 GB gives the most headroom for multitasking while 4 GB keeps cost down for lighter workloads.

What does the 1.60 GHz base and 2.24 GHz burst mean for everyday use?

The quad-core Celeron N3160 runs at 1.60 GHz and can lift to 2.24 GHz in short bursts, so web browsing, office apps and video playback stay responsive while the 6 W TDP keeps the fanless chassis cool.

How do the HDMI 1.4b and DisplayPort 1.1 connectors limit 4K output?

Each HDMI 1.4b port delivers 1920 x 1080 at 60 Hz; the single DisplayPort 1.1 reaches 3840 x 2160 at 30 Hz or 2560 x 1600 at 60 Hz, capping 4K to 30 Hz on that output.
