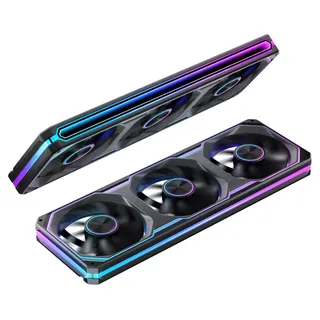

Black rectangular triple-fan unit with ARGB lighting on frame and blades

JONSBO

JONSBO XA-360B 360mm case fan 3×120mm ARGB black

SKU CH-08W5-HPSGC

Three 120 mm hydraulic-bearing fans in a single 360 mm frame deliver 700–2400 RPM airflow with ARGB lighting controllable via motherboard or dedicated controller

  • Fan Size120mm
  • LEDARGB
  • TypeCase Fan
  • Bearing TypeHydraulic
  • RPM700-2400(+-10%)RPM
  • Noise Level21.3-37.3 dB(A)

XA-120B Regular Blade

XA-360B 3x120mm

XA-360BR Black

  • Unified speed and lighting control via single PWM/ARGB connection
  • Three-sided matrix plus one-sided infinity mirror with switchable effects
  • Hydraulic bearing rated for 20000 hours at 25 °C
  • Quiet operation from 21.3 dB(A) at 700 RPM to 37.3 dB(A) at 2400 RPM
  • Daisy-chain 5 V ARGB with male and female plugs for extra devices

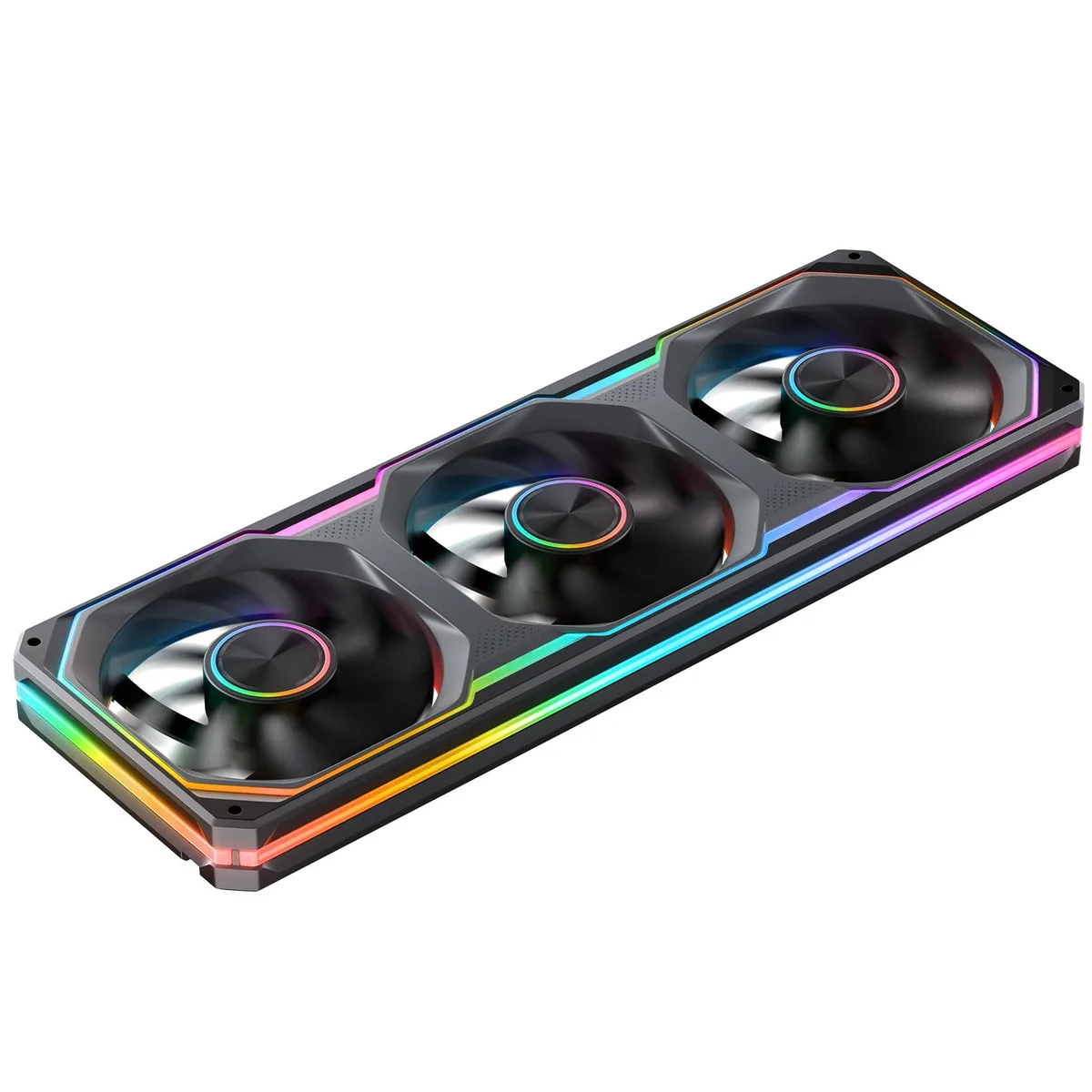

360 mm integrated fan unit

The JONSBO XA-360B combines three 120 mm ARGB fans in a single black frame that measures 360 mm long, 120 mm wide and 28 mm thick. Hydraulic bearings drive each rotor between 700 and 2400 RPM while producing 21.3 to 37.3 dB(A) of noise. A PWM 4-pin connector handles speed control and a 5 V ARGB 3-pin header synchronises lighting through a single cable.

Builders who want unified RGB and simple wiring

This unit suits anyone who prefers one mounting job and one cable run for a 360 mm radiator or intake slot. The 76 frame LEDs plus 27 parallel LEDs per fan exceed the per-channel limit of many entry-level motherboard headers, so a separate ARGB controller is required for full illumination. Buyers who cannot add a controller or who need independent fan curves should look elsewhere.

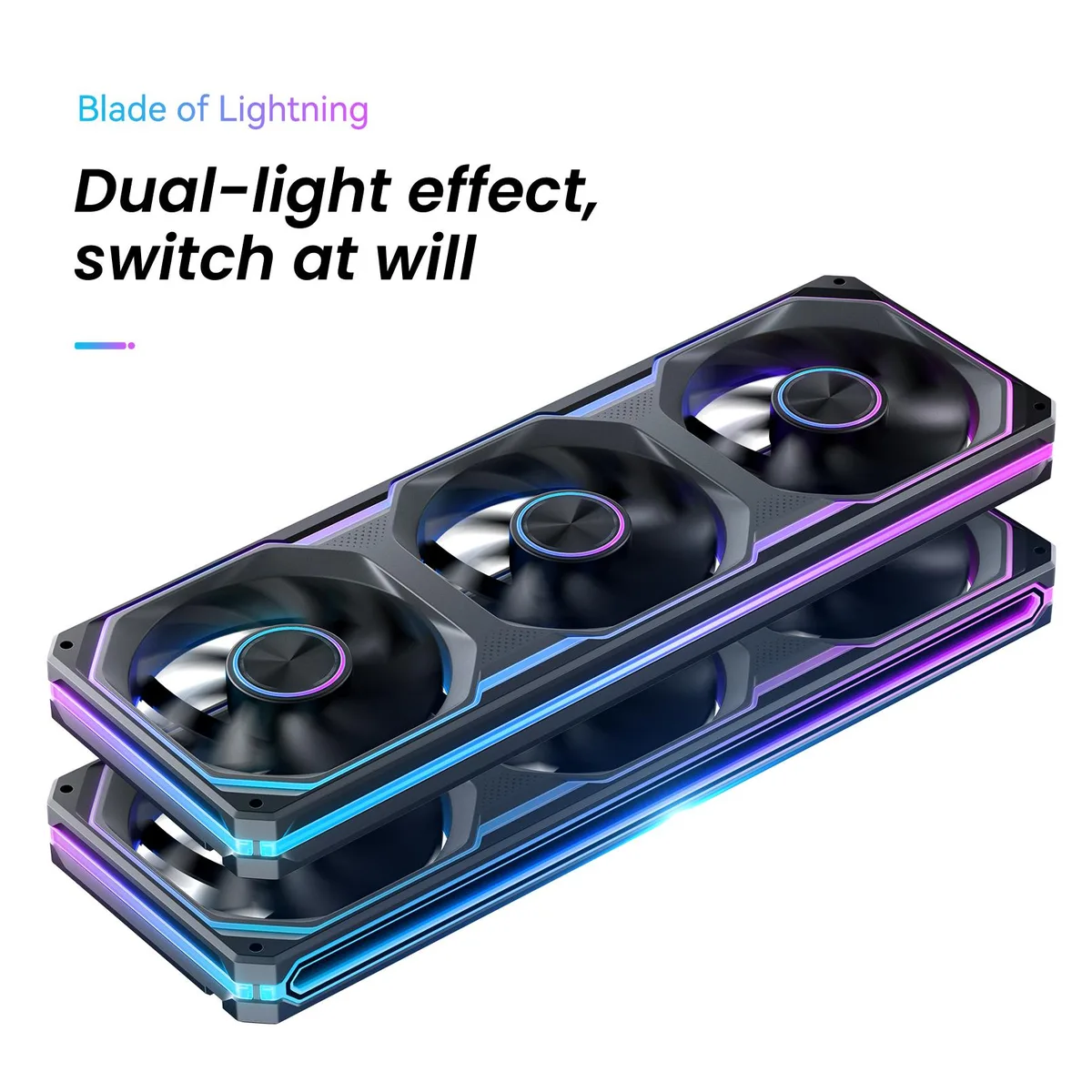

Dual lighting modes and daisy-chain ARGB

A hardware switch toggles between a three-sided matrix pattern and a one-sided infinity mirror effect without software. The 5 V ARGB male and female plugs allow the fan assembly to be chained with other compatible light strips or fans on the same header. MTTF is rated at 20000 hours at 25 °C ambient.

Points forts

  • Unified speed and lighting control via single PWM/ARGB connection
  • Three-sided matrix plus one-sided infinity mirror with switchable effects
  • Hydraulic bearing rated for 20000 hours at 25 °C
  • Quiet operation from 21.3 dB(A) at 700 RPM to 37.3 dB(A) at 2400 RPM
  • Daisy-chain 5 V ARGB with male and female plugs for extra devices

Caractéristiques

BrandJONSBO
ModelXA-120B
Fan Size120mm
LEDARGB
TypeCase Fan
Bearing TypeHydraulic
RPM700-2400(+-10%)RPM
Noise Level21.3-37.3 dB(A)
Power ConnectorPWM 4PIN ARGB 3PIN
ColorBlack / Gray
CompatibilityCase
Dimensions360mm(L)*120mm(W)*28mm(H)

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What motherboard headers do I need for the PWM 4-pin and ARGB 3-pin connectors?

Your motherboard must provide a 4-pin PWM fan header and a 5 V 3-pin ARGB header to power the three 120 mm fans and their 76 frame LEDs plus 27 parallel LEDs.

Will the 360 mm long single-frame unit fit in a case that only has mounting points for three separate 120 mm fans?

Yes, the 360 mm length matches standard triple-fan 120 mm mounting patterns and the 28 mm thickness fits typical radiator or case clearances.

How can I confirm the fans are running at the correct speed after installation?

Check your BIOS or fan-control software; the hydraulic-bearing fans should report between 700 and 2400 RPM with a tolerance of ±10 %.
