KEHIPI ToF camera module in protective case, 0.43MP rolling shutter sensor with IR emitter for depth sensing

KEHIPI

KEHIPI ToF Camera 0.43MP Rolling Shutter B0410C

SKU CH-NDTN-TV4KT

A 0.43MP rolling-shutter ToF camera module with case delivers pixel-level depth sensing up to 10 metres for Raspberry Pi and Nvidia Jetson boards

  • Pixel-level depth accuracy from 0.43MP rolling shutter sensor
  • Outdoor depth sensing works in ambient light without interference
  • Extended range up to 10 meters with cable extension kit
  • C, C++ and Python libraries supported for machine vision
  • 3D point-cloud imaging at an affordable cost

0.43MP ToF Camera Module

The KEHIPI ToF Camera B0410C is a colour rolling-shutter module that delivers pixel-level depth and distance data for IoT edge projects. It targets makers and developers building 3D imaging or point-cloud applications on Raspberry Pi or Nvidia Jetson platforms. The sensor provides affordable 3D sensing without the cost of traditional structured-light systems.

Sustained Depth Performance

The module maintains reliable infrared distance measurement across changing ambient light, so outdoor sessions do not degrade accuracy during long runs. A 10-meter coverage option extends the working range when the cable extension kit is fitted. Rolling-shutter readout suits static or slow-moving scenes rather than high-speed capture.

Build and Daily Integration

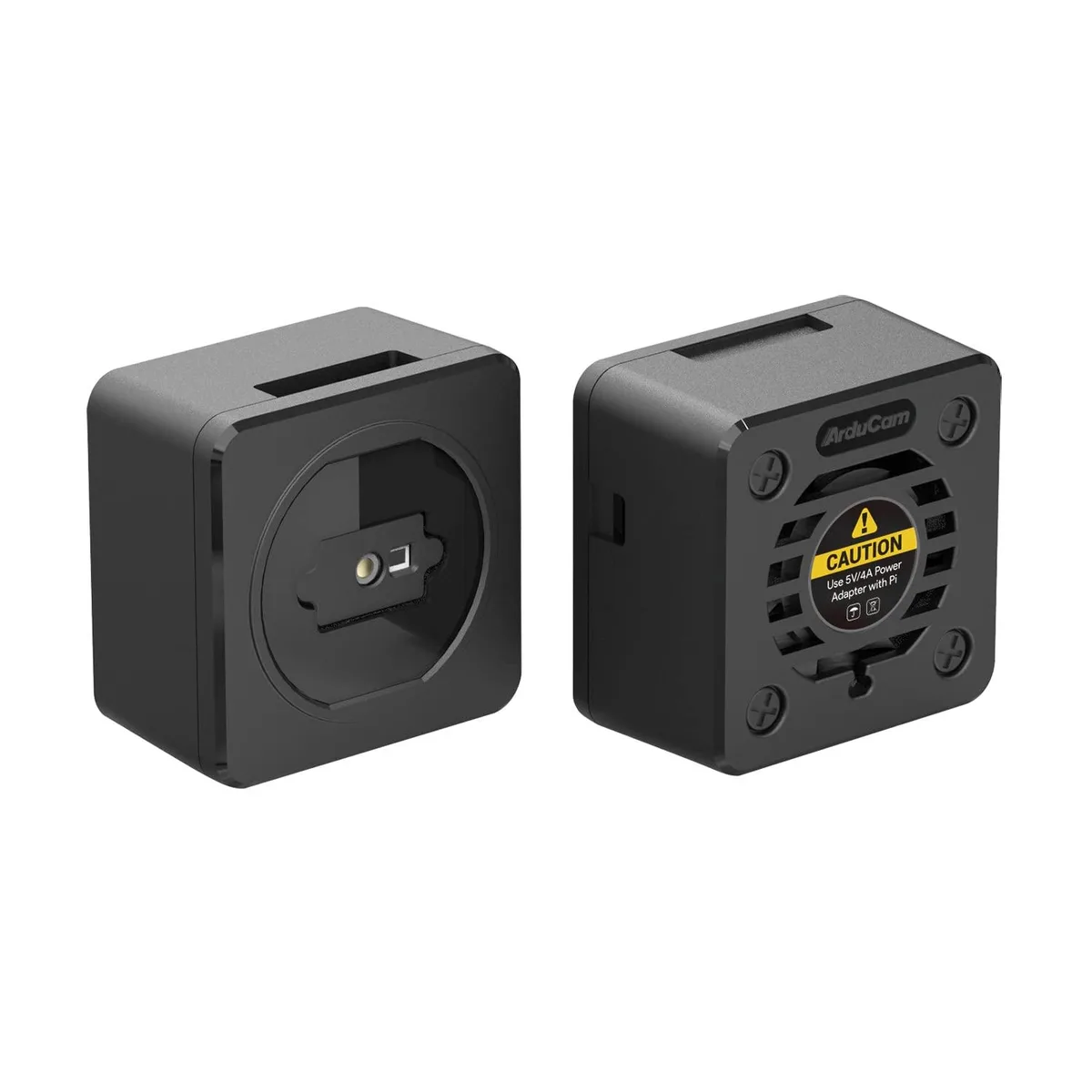

The camera ships in a protective case and connects via MIPI CSI; Jetson AGX Orin users must add a separate MIPI adapter board. Software support spans C, C++ and Python, letting existing machine-vision libraries drive the sensor without proprietary stacks. The integrated IR emitter enables operation in low-light or night conditions.

Points forts

  • Pixel-level depth accuracy from 0.43MP rolling shutter sensor
  • Outdoor depth sensing works in ambient light without interference
  • Extended range up to 10 meters with cable extension kit
  • C, C++ and Python libraries supported for machine vision
  • 3D point-cloud imaging at an affordable cost

Caractéristiques

BrandArducam
Part NumberB0410C

Questions sur cet article

How much power does the 0.43MP ToF camera draw during continuous depth capture?

The camera connects directly to the Raspberry Pi or Nvidia Jetson CSI port and draws its supply from the host board; no separate power adapter is required.

What extra hardware is needed to attach this B0410C module to an Nvidia Jetson AGX Orin?

A MIPI adapter board is required for the Jetson AGX Orin; the camera plugs straight into a Raspberry Pi CSI connector without an adapter.

Will the rolling-shutter sensor work alongside an older global-shutter camera on the same Pi?

The module uses a standard CSI-2 interface, so it can share the bus with another CSI camera provided the host software manages the two streams.
