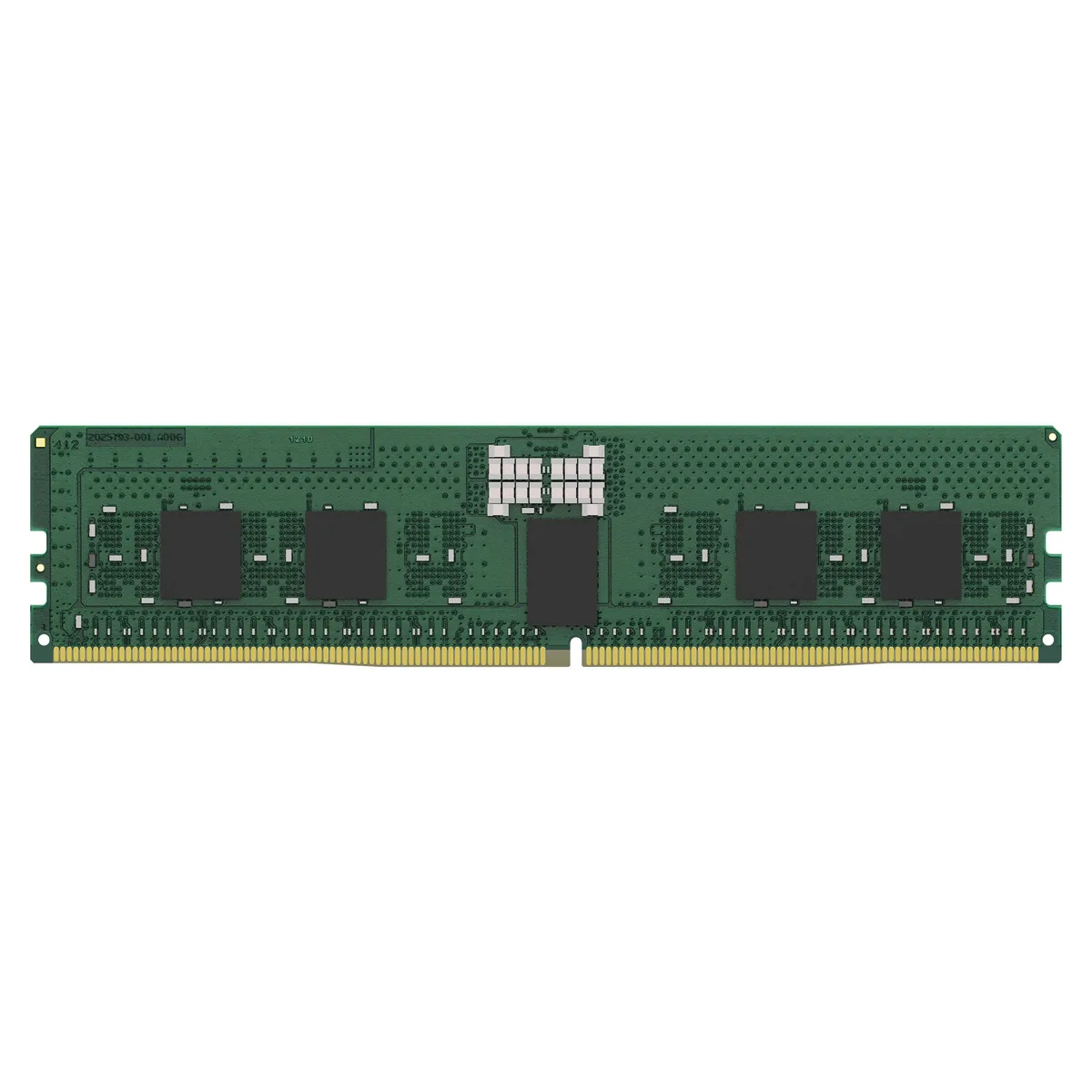

Green 288-pin DDR5 RDIMM module with black chips no heat spreader

Kingston Technology Corp.

Kingston Technology Corp. KSM56R46BS8PMI-16HAI 16 GB DDR5-5600 CL46 ECC Registered server RAM

SKU CH-08ZG-EQPH4 MPN KSM56R46BS8PMI-16HAI

16 GB DDR5-5600 CL46 ECC registered RDIMM with 288-pin form factor for server stability

  • Capacity16GB
  • Type288-Pin DDR5 RDIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Timing46-45-45
  • Voltage1.10V

Capacity 16GB

Rank 1Rx8

Option Hynix, Full Lock

  • ECC protection prevents data corruption with on-die and x80 error correction
  • Registered design enables stable operation at 5600 MHz with CL46 latency
  • Single-rank 1Rx8 layout reduces electrical load on the memory bus
  • Low 1.10 V voltage cuts power draw in dense server configurations
  • 288-pin DDR5 RDIMM form factor fits standard server motherboard slots

Server DDR5 RDIMM for registered ECC platforms

This 16 GB DDR5-5600 module uses a 288-pin RDIMM form factor with registered signal processing and on-die ECC. It is built for servers and workstations that require registered memory with error correction. The single-rank 1Rx8 organisation and CL46 timing suit platforms qualified for PC5-44800 speeds. Systems needing unbuffered UDIMMs or non-ECC memory cannot use this part.

Thermals and power in normal operation

The module runs at a typical VDD and VDDQ of 1.10 V with VPP at 1.8 V and VDDSPD between 1.8 V and 2.0 V. No heat spreader is fitted, so airflow across the 31.25 mm PCB height handles cooling. Registered buffering reduces electrical load on the memory bus, helping keep power draw steady under sustained server workloads.

Registered ECC with on-die correction

The decisive specification is the combination of registered buffering and on-die ECC with x80 organisation across two independent I/O sub-channels. This provides error detection and correction inside the DRAM before data reaches the bus. Buyers whose platforms require unbuffered memory or lack registered DIMM support must choose a different module type.

Points forts

  • ECC protection prevents data corruption with on-die and x80 error correction
  • Registered design enables stable operation at 5600 MHz with CL46 latency
  • Single-rank 1Rx8 layout reduces electrical load on the memory bus
  • Low 1.10 V voltage cuts power draw in dense server configurations
  • 288-pin DDR5 RDIMM form factor fits standard server motherboard slots

Caractéristiques

BrandKingston
ModelKSM56R46BS8PMI-16HAI
Capacity16GB
Type288-Pin DDR5 RDIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Timing46-45-45
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank1Rx8
Heat SpreaderNo
FeaturesPower Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23" (31.25mm)
RoHS Compliant and Halogen-Free
Poids d’expédition0.02 kg
Dimensions du colis163 × 48 × 6 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install this 288-pin DDR5 RDIMM and what step is often missed?

Align the notch with the motherboard slot key, press firmly until both retention clips click, then verify the module sits flush; the step often missed is confirming the BIOS detects the correct 5600 MHz speed and CL46 timing after first boot.

What maintenance or replacement will this 16 GB registered ECC module need over time?

No routine maintenance is required; the module has no heat spreader so keep server airflow clean, and replace only if ECC correctable error counts rise or the system reports a hard memory failure.

What limit appears first when this DDR5-5600 CL46 RDIMM runs sustained workloads?

The CL46 latency at 1.10 V becomes the bottleneck before bandwidth, as the single-rank 1Rx8 organisation and 46-45-45 timings cap throughput under continuous heavy load.
