Small green circuit board M.2 2230 SSD with black chips, no heatsink

Kingston Technology Corp.

Kingston Technology Corp. SNV3SM3/2T0 2TB M.2 2230 internal SSD

SKU CH-C9PX-A7T9G MPN SNV3SM3/2T0

A 2TB M.2 2230 NVMe drive delivering up to 6000 MBps read and 5000 MBps write speeds for compact devices

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Style 2230

Options 2TB

  • Compact M.2 2230 form factor fits Steam Deck and ultra-thin laptops
  • PCIe 4.0 x4 NVMe interface delivers up to 6000 MB/s sequential read speed
  • 2TB capacity stores large game libraries and media collections
  • 3D NAND technology rated for 640TB written endurance
  • Weighs only 2.8g with 2.30mm height for minimal thermal impact

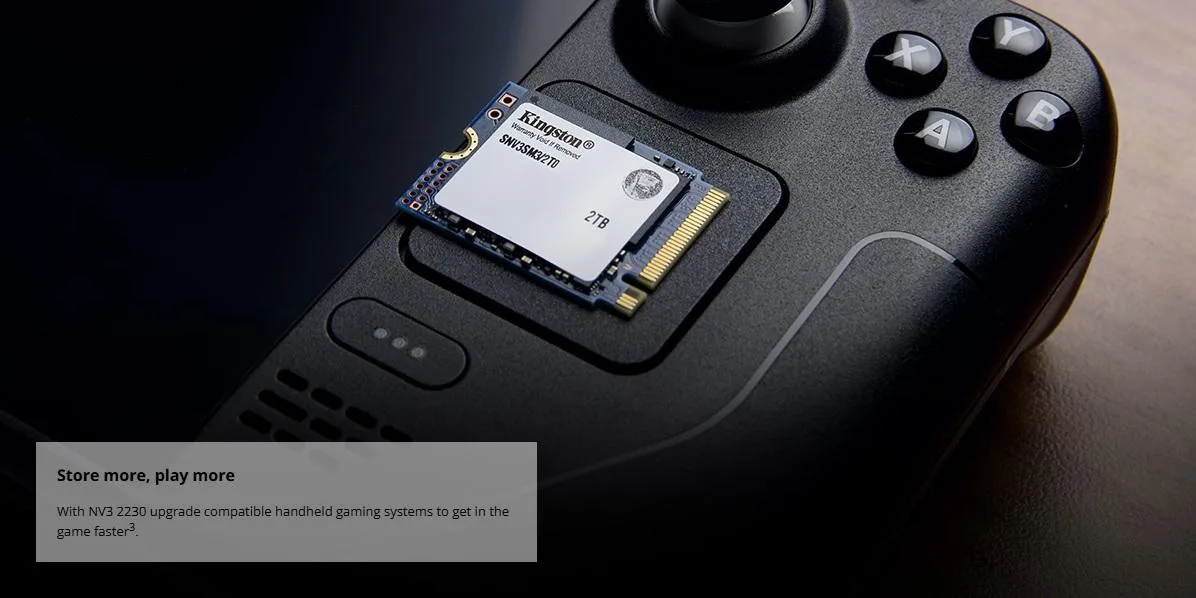

Compact M.2 2230 drive for handheld PCs

This NVMe SSD uses the short M.2 2230 form factor and fits devices such as the Steam Deck. It provides 2TB of storage with PCIe 4.0 x4 speeds for faster game loading and system responsiveness.

Simple drop-in upgrade with one common issue

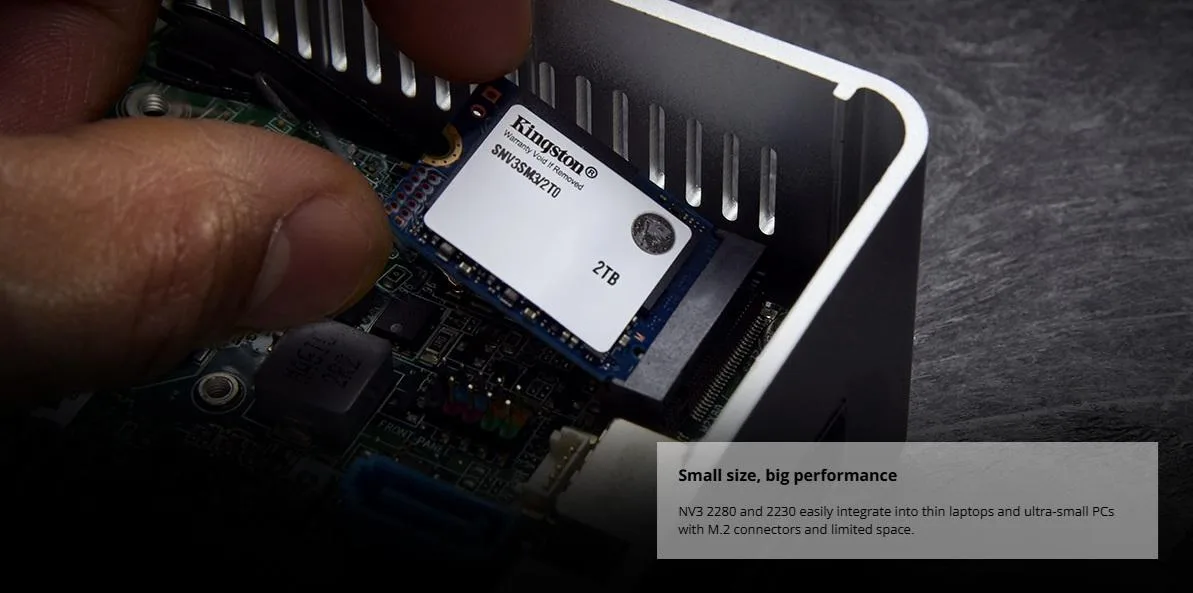

Installation only requires inserting the drive into the M.2 slot and securing it with the existing screw. The most frequent problem is forgetting to initialise the new volume in the operating system before use.

PCIe 4.0 x4 interface determines compatibility

The drive connects through a PCIe 4.0 x4 NVMe interface, so the host must support that protocol and the 2230 length. Sequential reads reach up to 6000 MBps and writes up to 5000 MBps.

Points forts

  • Compact M.2 2230 form factor fits Steam Deck and ultra-thin laptops
  • PCIe 4.0 x4 NVMe interface delivers up to 6000 MB/s sequential read speed
  • 2TB capacity stores large game libraries and media collections
  • 3D NAND technology rated for 640TB written endurance
  • Weighs only 2.8g with 2.30mm height for minimal thermal impact

Caractéristiques

BrandKingston
SeriesNV3 Mini
ModelSNV3SM3/2T0
Part NumberSNV3SM3/2T0
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe
Max Sequential ReadUp to 6000 MBps
Max Sequential WriteUp to 5000 MBps
Terabytes Written (TBW)640TB
MTBF2,000,000 hours
HeatSinkwithout HeatSink
Height2.30mm
Width30mm
Depth20mm
Weight2.8g
Poids d’expédition0.02 kg
Dimensions du colis114 × 102 × 6 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will this drive fit in a Steam Deck or similar handheld device?

The M.2 2230 form factor measures 30 mm by 20 mm and is 2.30 mm thick, matching the slot used in Steam Deck and many ultra-portable laptops.

Does the drive need a heatsink for sustained performance?

It ships without a heatsink; the thin 2.30 mm profile fits tight chassis, but adding a motherboard heatsink or thermal pad can help maintain peak speeds during heavy workloads.

What is the endurance rating for the 2 TB model?

The drive is rated for 640 TBW with an MTBF of 2,000,000 hours, indicating a high write endurance for a consumer NVMe SSD.
