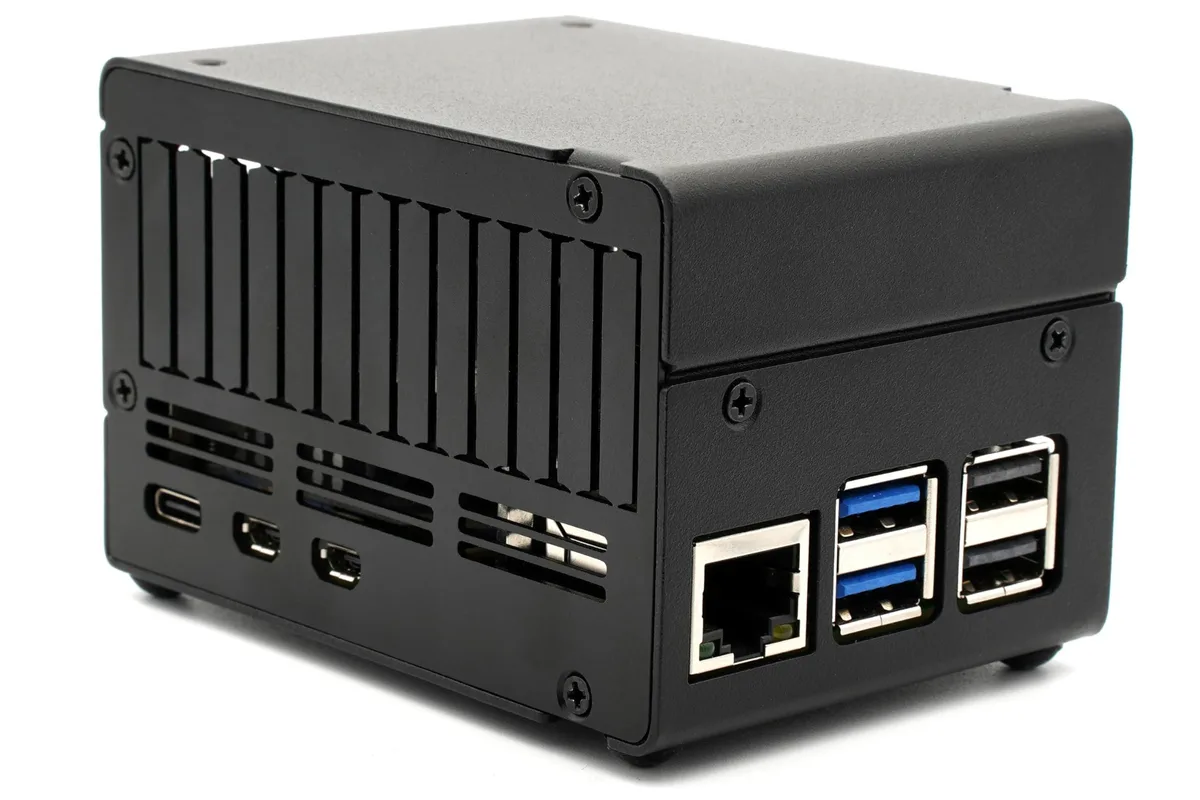

Black anodised aluminium and steel case for Raspberry Pi 5 with removable cover and NVMe HAT space

KKSB Raspberry Pi 5 Case Black with NVMe HAT Space

SKU CH-JYZP-J81ED

Aluminium and steel enclosure for Raspberry Pi 5 with removable cover, NVMe HAT space and official cooler support

  • TypeKKSB Raspberry Pi 5 Case
  • MotherboardRaspberry Pi 5
  • MemoryRaspberry Pi 5
  • ColorBlack
  • CPU Socket TypeP
  • Maximum Memory SupportedRaspberry Pi 5
  • External power button lets you start the Pi without opening the case
  • Removable cover gives quick access to install coolers and HATs
  • Side walls can be modified to fit different HAT connectors
  • 18 mm and 20 mm spacers provide airflow between HAT and cooler
  • Sandblasted anodized aluminium and powder-coated steel construction for durability

KKSB Raspberry Pi 5 Case

This aluminium and steel enclosure houses a Raspberry Pi 5 board while leaving room for HATs, add-on boards and NVMe HATs. A removable cover and an external power button simplify installation and daily operation. Threaded holes and two bottom keyholes allow wall or surface mounting. The sandblasted black anodised finish suits a workbench or office desk.

Sustained-load behaviour

Ventilation slots on both side panels promote airflow around the board and any fitted cooler. The design accepts the official Raspberry Pi cooler and provides 18mm and 20mm spacers to keep an NVMe HAT clear of the cooler for continued airflow. Long and short spacers are included to match HATs with different GPIO header heights. A side opening permits a 40 GPIO cable connection without removing the cover.

Upgrade context

The case replaces a bare-board or basic plastic shell when a project needs protected GPIO access, NVMe storage expansion and active cooling in one rigid package. It is not suited for builds that require a completely sealed chassis or integrated power supply. Buyers who need a smaller footprint without HAT clearance should consider a lower-profile enclosure.

Points forts

  • External power button lets you start the Pi without opening the case
  • Removable cover gives quick access to install coolers and HATs
  • Side walls can be modified to fit different HAT connectors
  • 18 mm and 20 mm spacers provide airflow between HAT and cooler
  • Sandblasted anodized aluminium and powder-coated steel construction for durability

Caractéristiques

BrandKKSB Cases
ModelKKSB Raspberry Pi 5 Case
TypeKKSB Raspberry Pi 5 Case
MotherboardRaspberry Pi 5
MemoryRaspberry Pi 5
ColorBlack
CPU Socket TypeP
Maximum Memory SupportedRaspberry Pi 5

Questions sur cet article

How much airflow does the case provide when the Raspberry Pi 5 and an NVMe HAT run continuously?

Ventilation slots on both side panels and 18mm and 20mm spacers create a gap between the cooler and the HAT so air can circulate during all-day operation.

Which cooler and mounting hardware must I already have to use this case?

It is designed for the official Raspberry Pi cooler and includes long and short spacers for HATs with different GPIO header heights.

Will my existing 40-pin GPIO ribbon cable reach the side cut-out on this case?

A side opening is sized for a 40 GPIO cable so older peripherals can connect without removing the cover.
