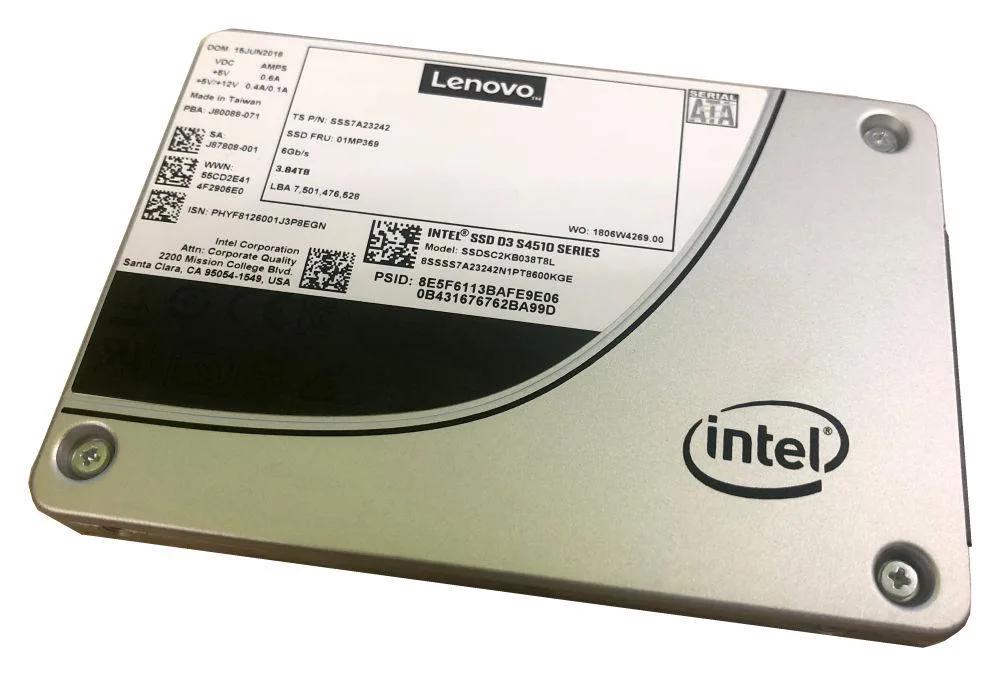

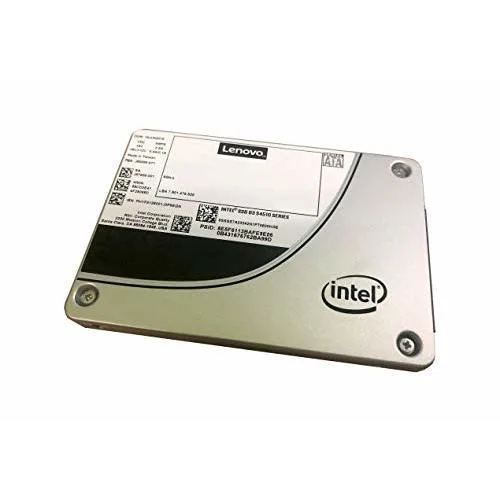

Lenovo 3.5 inch 240GB SATA enterprise SSD, silver metal casing

Lenovo

Lenovo 4XB7A14914 3.5" 240GB SATA enterprise SSD

SKU CH-P8VT-TFXW2 MPN 4XB7A14914

A 240 GB enterprise SSD with SATA interface, 560 MBps read and 290 MBps write speeds for ThinkSystem ST50 servers

  • Form Factor3.5"
  • Capacity240GB
  • Memory Components3D NAND TLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 560 MBps
  • Max Sequential WriteUp to 290 MBps
  • 240 GB capacity supports growing server workloads
  • SATA 6 Gb/s interface enables straightforward integration
  • 3D NAND TLC memory delivers 560 MB/s sequential read speed
  • 85,000 random read IOPS accelerates database queries
  • 2,000,000-hour MTBF ensures long-term enterprise reliability

Lenovo 240 GB SATA enterprise SSD

The Lenovo 4XB7A14914 is a 3.5-inch internal solid-state drive built for server environments. It uses 3D NAND TLC memory and a SATA 6 Gb/s interface to deliver 240 GB of storage capacity. The drive is validated for Lenovo ThinkSystem ST50 servers and carries a 2,000,000-hour MTBF rating. Power draw during active operation is 2.4 W.

Suited for ThinkSystem ST50 upgrades.

This SSD targets administrators adding capacity to ThinkSystem ST50 7Y48 or 7Y49 configurations that accept 3.5-inch fixed drives. Sequential reads reach 560 MB/s and writes reach 290 MB/s, with random read IOPS up to 85,000 and random write IOPS up to 17,000. Buyers needing hot-swappable sleds or higher endurance for write-intensive workloads should evaluate other enterprise options.

SATA 6 Gb/s interface determines host compatibility

The single specification that governs fit is the SATA 6 Gb/s interface paired with the 3.5-inch 7.00 mm height form factor. Systems must provide a standard SATA data and power connection and a drive bay that accommodates the 70.00 mm width. Without a native SATA port the drive cannot be used.

Points forts

  • 240 GB capacity supports growing server workloads
  • SATA 6 Gb/s interface enables straightforward integration
  • 3D NAND TLC memory delivers 560 MB/s sequential read speed
  • 85,000 random read IOPS accelerates database queries
  • 2,000,000-hour MTBF ensures long-term enterprise reliability

Caractéristiques

BrandLenovo
Model4XB7A14914
Part Number4XB7A14914
Form Factor3.5"
Capacity240GB
Memory Components3D NAND TLC
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 290 MBps
4KB Random ReadUp to 85,000 IOPS
4KB Random WriteUp to 17,000 IOPS
Read Latency36 µs
Write Latency36 µs
MTBF2,000,000 hours
Power Consumption (Active)2.4W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000G (Max) at 0.5 ms
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-operating: 3.13 GRMS (5-800 Hz)
Height7.00mm
Width70.00mm
Depth100.00mm
Weight63.00g
Poids d’expédition1.36 kg
Dimensions du colis260 × 190 × 100 mm

Questions sur cet article

How can I verify the drive is performing at its rated 85,000 random read IOPS after installation?

Run a 4 KB random read benchmark such as FIO or CrystalDiskMark and compare the result to the specified 85,000 IOPS figure.

What ships with the 4XB7A14914 and what must I source separately for a ThinkSystem ST50?

The drive itself is supplied; you will need a 3.5" drive bay, a SATA data cable and a SATA power connector from the server.

Which capacity should I choose if my workload demands the highest sequential write speed this model offers?

This model is only available in 240 GB and delivers up to 290 MBps sequential write.
